What is FR-4 PCB?

When it comes to PCB materials, Omini is proud to offer a variety of solutions, including the widely recognized FR-4 PCB. As one of the most versatile and commonly used materials in PCB manufacturing, FR-4 stands for “Flame Retardant 4,” an epoxy-based laminate that serves as the substrate for many modern PCBs.

Key Features of FR-4 PCB:

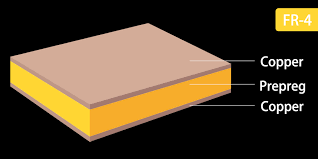

1. Flame Retardant Composition: FR-4 is composed of woven glass fabric that is saturated with a flame-retardant epoxy resin binder, providing a high level of safety in electronic applications.

2. Reliable Insulation: This material offers excellent insulation properties, ensuring reliable performance in a variety of environments.

3. Durability: FR-4 is known for its durability and resistance to heat and chemicals, making it a top choice for many industries.

4. Safety Standards Compliance: The “4” in FR-4 signifies its ability to meet stringent flame retardancy standards, ensuring it is suitable for high-performance and safety-critical applications.

At Omini, we provide high-quality FR-4 PCB solutions designed to meet the specific needs of industries such as automotive, telecommunications, and consumer electronics. Our expertise in PCB manufacturing ensures top-tier products that exceed industry standards.

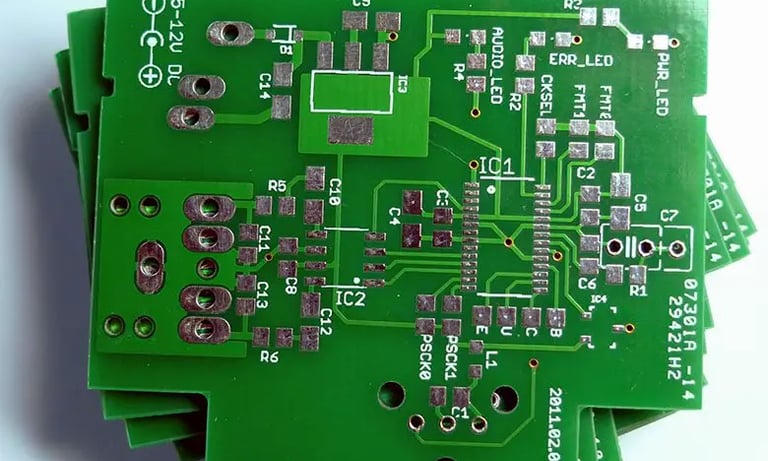

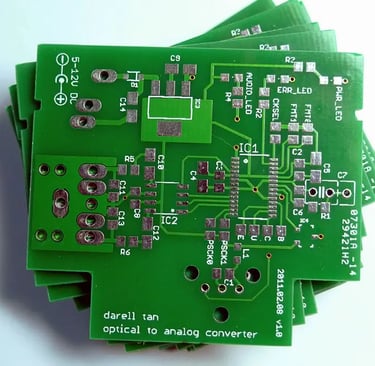

Features of FR-4 Printed Circuit Board

At Omini, we offer a range of FR-4 PCB solutions designed for various applications. Below are the key features that make FR-4 a preferred choice in the PCB industry:

Key Features of FR-4 Printed Circuit Board:

1. Flame Retardant Properties: FR-4 PCBs are made from flame-retardant epoxy resin, providing high fire resistance. This is essential for safety, particularly in sensitive environments or industries where fire hazards are a serious concern.

2. Excellent Mechanical Strength: Known for its high mechanical strength and durability, FR-4 can withstand mechanical stress, vibration, and impact. This ensures the PCB remains intact and functional during handling, assembly, and operation.

3. Superior Dielectric Properties: FR-4 materials offer excellent dielectric properties, including high electric insulation resistance and a low dielectric constant. These qualities make FR-4 ideal for applications requiring reliable electrical insulation between conductive traces.

4. Good Thermal Stability: FR-4 PCBs exhibit excellent thermal stability, ensuring they can endure high temperatures during soldering and operation without issues like delamination or failure of solder joints. This contributes to a longer lifespan for the PCB.

5. Dimensional Stability: With a low coefficient of thermal expansion (CET), FR-4 offers excellent dimensional stability across a wide range of temperatures. This ensures tight tolerance and precise circuit features during fabrication, which is crucial for high-density PCB designs.

6. Compatibility with Lead-Free Soldering: FR-4 PCBs comply with environmental regulations such as RoHS (Restriction of Hazardous Substances), making them an eco-friendly choice for modern electronics while ensuring safety in their use.

7. Ease of Fabrication: The manufacturing process for FR-4, including drilling, etching, and routing, is straightforward due to the material’s flexibility. This ease of fabrication helps reduce production costs and labor while maintaining quality. FR-4 is also globally available, making it an affordable and reliable option.

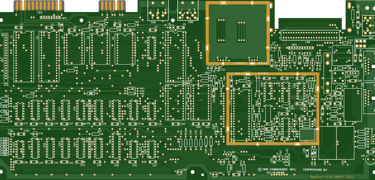

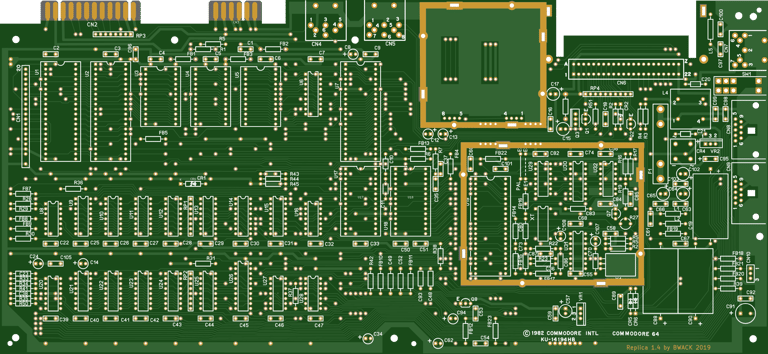

8. Versatility in Design: Omini manufactures FR-4 PCBs in various configurations, including single-sided, double-sided, and multilayer designs, making it a versatile solution for a wide range of electronic applications.

At Omini, we specialize in providing high-quality FR-4 PCB solutions tailored to meet the diverse needs of industries such as automotive, telecommunications, and consumer electronics.

Limitations of FR-4 Circuit Boards

While FR-4 offers numerous advantages, there are certain limitations that should be considered. Omini provides FR-4 PCB solutions, but it’s important to be aware of the following challenges when using this material:

Key Limitations of FR-4 Circuit Boards:

1. Limited High-Frequency Performance: Due to its relatively high dielectric constant, FR-4 PCBs may struggle with high-frequency performance. Signal attenuation and impedance variations can occur at frequencies above a few gigahertz (GHz), which can impact the transmission of high-speed signals and limit the bandwidth for RF and microwave circuits.

2. Moisture Absorption Issues: FR-4 boards tend to absorb moisture from the surrounding environment. This can alter the electrical properties of the PCB, leading to issues like delamination, solder joint failure, and dielectric loss, especially in applications exposed to harsh environments or thermal cycling.

3. Thermal Conductivity Limitations: Compared to other substrate materials, FR-4 has relatively low thermal conductivity. This can result in localized heating and the formation of hotspots on the PCB, which may cause performance issues in thermally sensitive applications.

4. Environmental Concerns: The epoxy resins and fiberglass materials used in FR-4 PCBs can contribute to environmental hazards during manufacturing, disposal, or recycling. Volatile Organic Compounds (VOCs), which are released during production, can lead to air pollution and environmental contamination if not properly managed.

5. Brittleness and Fragility: FR-4 materials are more brittle compared to other PCB substrates. This brittleness can lead to mechanical failures such as cracking, fracturing, or warping, especially in thinner laminates or high-glass-content substrates. Such failures may reduce the overall lifespan of the PCB.

6. Processing Constraints: The production of FR-4 PCBs requires precise control of temperature and humidity. Specialized equipment and techniques are necessary to ensure uniformity in processes like drilling, solder mask adhesion, and copper etching, which can add to the complexity and cost of manufacturing.

At Omini, we understand these limitations and provide tailored FR-4 PCB solutions that balance performance with cost-effectiveness for various industries. We aim to optimize the benefits of FR-4 while mitigating its challenges through advanced manufacturing techniques and quality control.

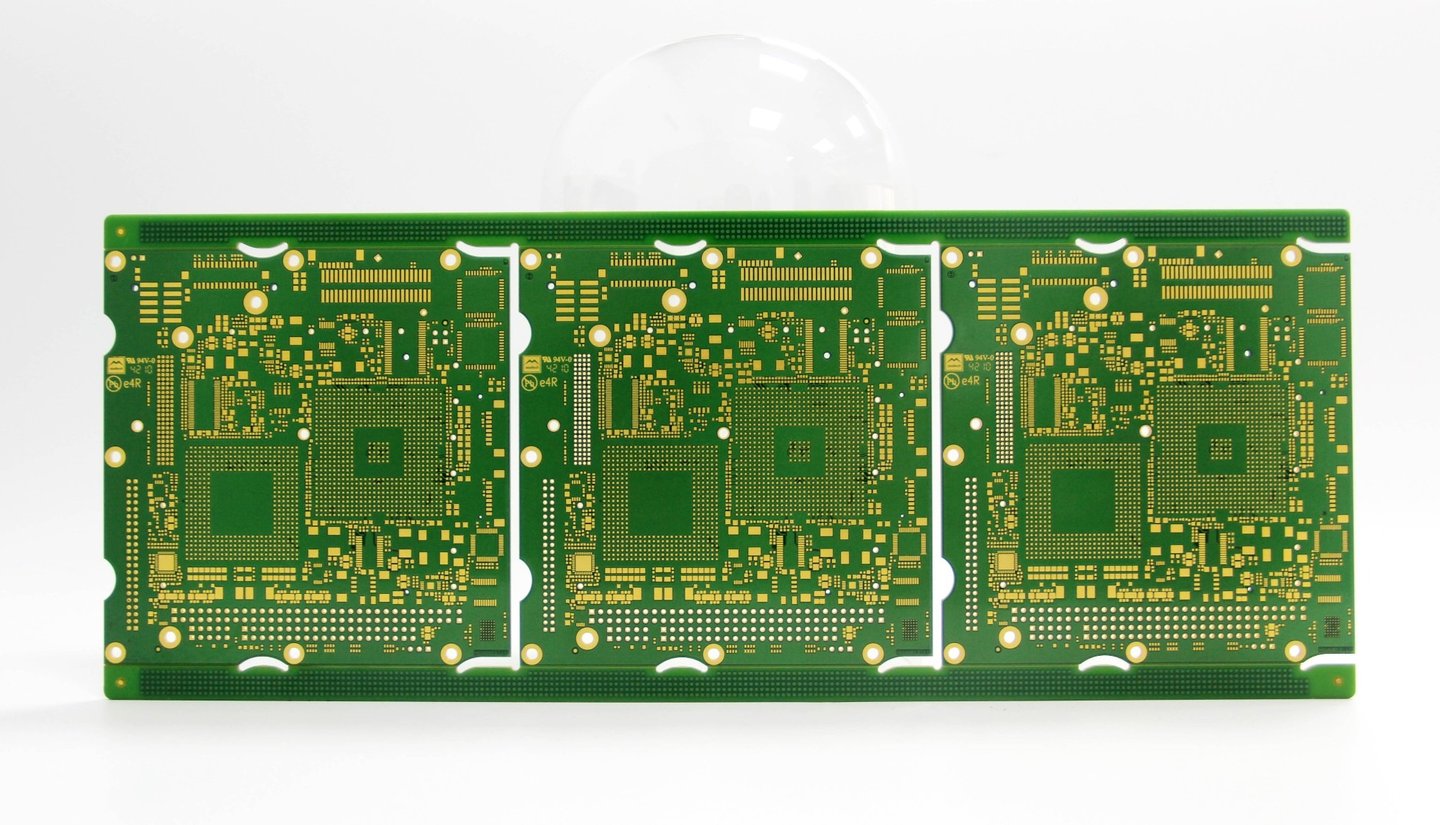

Application of FR-4 PCBs

At Omini, we offer FR-4 PCB solutions for a wide range of applications across various industries. Below are some key areas where FR-4 PCBs are commonly used:

Key Applications of FR-4 PCBs:

1. Communication Systems: FR-4 PCBs are essential in communication systems, including routers, modems, switches, antennas, and access points. They enable the processing of signals in both digital and analog communication networks, ensuring reliable internet connectivity.

2. Automotive Electronics: FR-4 PCBs are widely used in automotive electronics for vehicle control systems, navigation, infotainment, and safety features. Their ability to withstand harsh conditions like moisture, vibration, and temperature fluctuations makes them ideal for automotive applications.

3. Aerospace and Defense: In the aerospace and defense sectors, Omini supplies FR-4 PCBs for avionics, navigation systems, radar technology, and military vehicles. These PCBs are highly valued for their reliability and rigidity, even in challenging environments like those found in defense and aerospace applications.

4. Industrial Devices: FR-4 PCBs are integral to various industrial equipment, including control systems, motor drivers, sensor robotics, automation systems, and instrumentation. They provide a stable and durable platform for integrating electronic controls and communication interfaces in industrial machinery.

5. Energy Systems: FR-4 PCBs are utilized in renewable energy systems and power distribution. They are employed in devices such as sensors, inverters, converters, and monitoring systems used in power plants, substations, wind farms, energy storage systems, and solar installations.

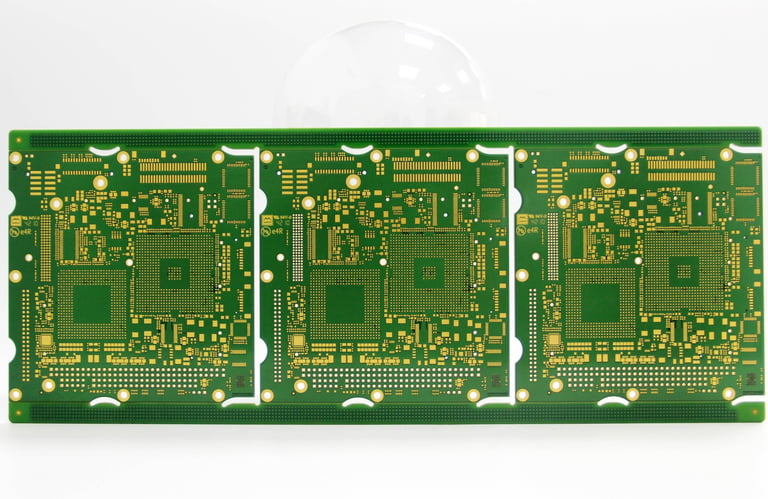

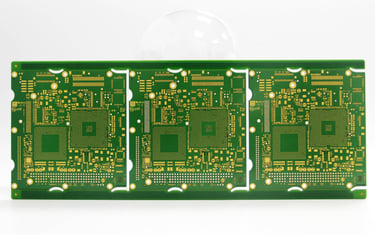

6. Security Systems: FR-4 PCBs are widely used in security systems, including surveillance cameras, access control systems, biometric scanners, and alarm panels. They support essential functions like sensing, processing, and communication, which are vital for protecting assets and personnel.

7. Consumer Electronics: Common in consumer electronics, FR-4 PCBs are used in products like laptops, tablets, smartphones, desktops, TVs, and home appliances. They provide a cost-effective and reliable platform for the assembly of electronic components, ensuring the proper functionality of various consumer electronics.

8. Medical Devices: In the medical field, FR-4 PCBs play a significant role in devices such as patient monitors, diagnostic instruments, imaging systems, infusion pumps, and surgical tools. They facilitate the integration of sensors, microcontrollers, displays, and communication modules, enabling accurate data collection and analysis in medical systems.

At Omini, we specialize in providing high-quality FR-4 PCB solutions tailored to meet the unique needs of industries such as automotive, telecommunications, aerospace, and more. Our expertise ensures that your FR-4 PCBs are manufactured to the highest standards of performance and reliability.

Manufacturing Process of FR-4 PCBs

At Omini, we follow a precise and efficient manufacturing process for FR-4 PCBs, ensuring the highest quality standards. The process is similar to that of standard PCBs, but with the use of the durable FR-4 material. Below is an overview of the step-by-step process:

Manufacturing Steps of FR-4 PCBs:

1. Design Consideration: The first step in the manufacturing process is the design phase. At Omini, we focus on custom FR-4 PCB designs that meet the specific requirements of our clients. This ensures that the final product meets both functional and technical specifications.

2. Preparation of Substrate Material: In this step, fiberglass is coated with epoxy resin and cured to form rigid laminate sheets with the desired thickness and properties. Copper foil layers are then bonded to both sides of the laminate, creating the conductive pathways for electrical signals.

3. Drilling: Precision drilling machines are used to create holes for component mounting (through-hole components) and electrical connections in the laminate sheets. This step is crucial for ensuring proper component placement and connectivity.

4. Etching: After drilling, excess copper is removed from the surface using chemical etchants. This process leaves only the desired copper traces and patterns, following the circuit design. Etching ensures that the PCB will function properly by forming the correct electrical pathways.

5. Plating: The next step in the process involves plating the through-hole vias and pads with metal. This ensures electrical continuity and mechanical strength, which are essential for the PCB’s durability and functionality.

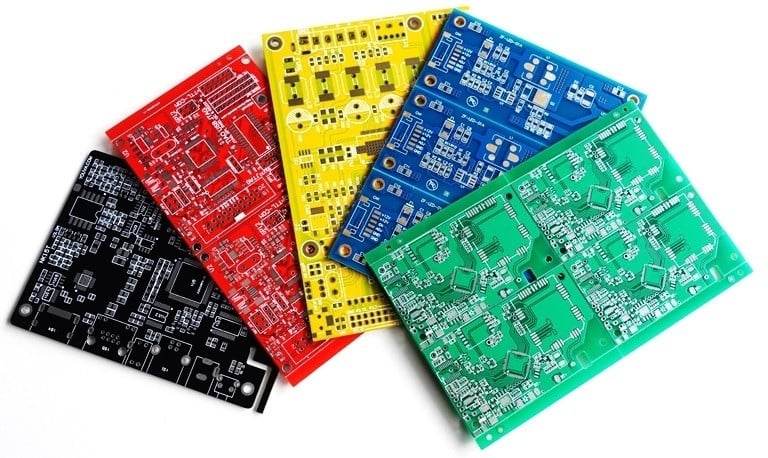

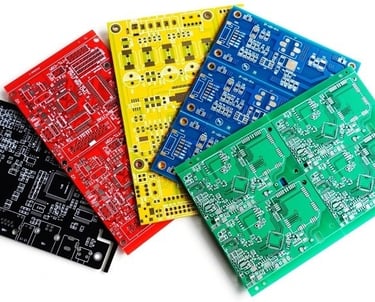

6. Surface Finish: After plating, the exposed copper surface is coated with a protective surface finish, such as solder masks, HASL, or ENIG. This finish protects the FR-4 PCB from oxidation and prepares it for the soldering process during assembly.

7. Testing and Validation: In the final step, the fabricated FR-4 PCB undergoes thorough testing and validation. This ensures that the PCB is free from defects and meets the required performance standards before being delivered to the customer.

At Omini, we prioritize quality at every stage of the FR-4 PCB manufacturing process to provide reliable and high-performance solutions for various industries.

Omini: The Best Supplier for FR-4 PCB Services!

As a leading FR-4 PCB manufacturer in China, Omini is here to assist you in sourcing high-quality printed circuit boards made of FR-4 or other materials. Since 2007, we have been proud to offer top-tier services that adhere to the strictest international standards.

Here are some key reasons to choose Omini as your trusted FR-4 PCB supplier:

Reasons to Choose Omini for FR-4 PCB Services:

1. Experienced Team: With over 16 years of expertise in providing FR-4 PCBs, Omini has earned the trust of more than 1,000 global customers. Our FR-4 PCB solutions are highly valued for their quality, and our commitment to service excellence is unparalleled in the industry.

2. Competitive Pricing: At Omini, we offer competitive pricing for FR-4 PCB manufacturing services, ensuring that you can optimize your project budget without compromising on quality or reliability. Our cost-effective solutions cater to both large and small-scale production runs.

3. Quality Assurance: We implement rigorous quality control systems at every stage of FR-4 PCB production. Omini is UL, ISO9001:2015, and ISO13485 certified, ensuring that our products meet international quality standards. We maintain tight control over every process, from design to final inspection, to deliver the highest level of quality in every product.

4. Fast Delivery: Omini efficiently manages product flow, from material acquisition to final delivery. We have established contingency plans for unforeseen circumstances such as material shortages, machine malfunctions, and shipment delays. Our streamlined operations ensure that your FR-4 PCBs are delivered on time, every time.

Choose Omini as your reliable partner for FR-4 PCB manufacturing. We are committed to providing you with high-quality, durable, and cost-effective PCBs to meet your specific needs.
