Omini Gold Finger PCB Solutions

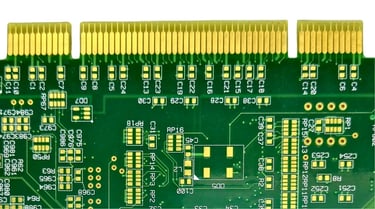

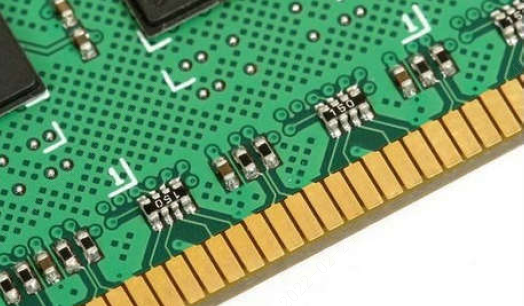

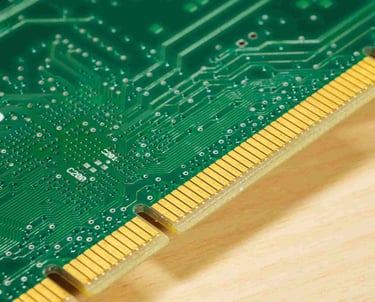

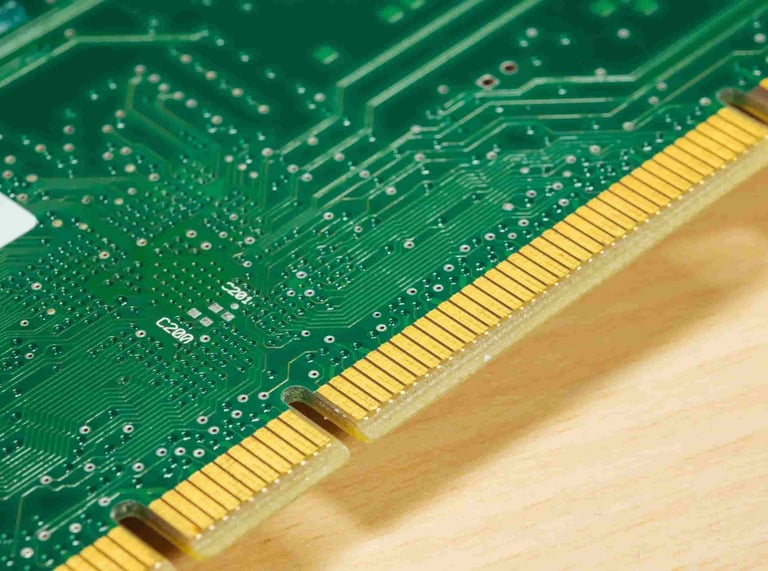

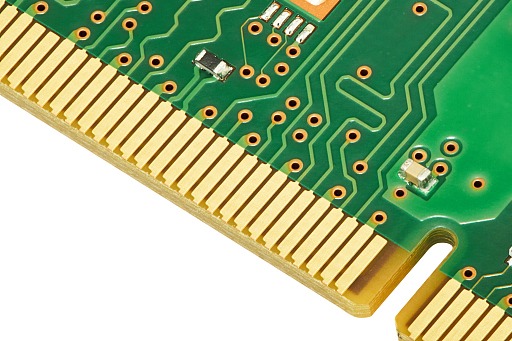

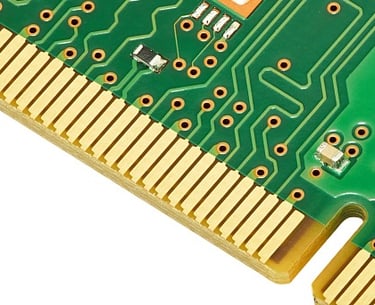

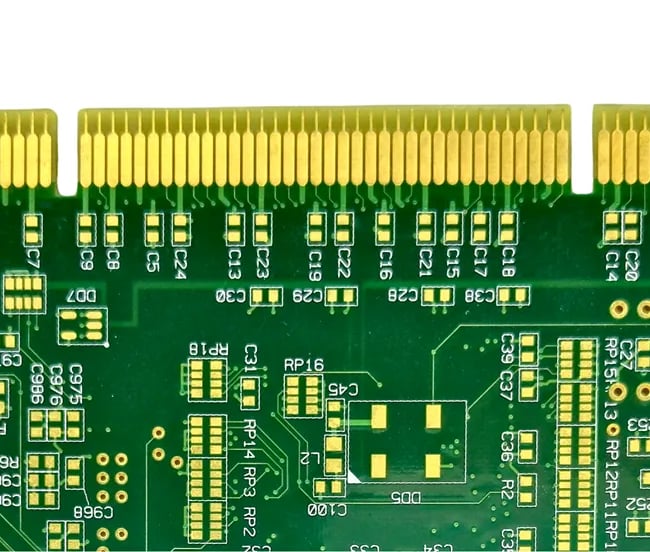

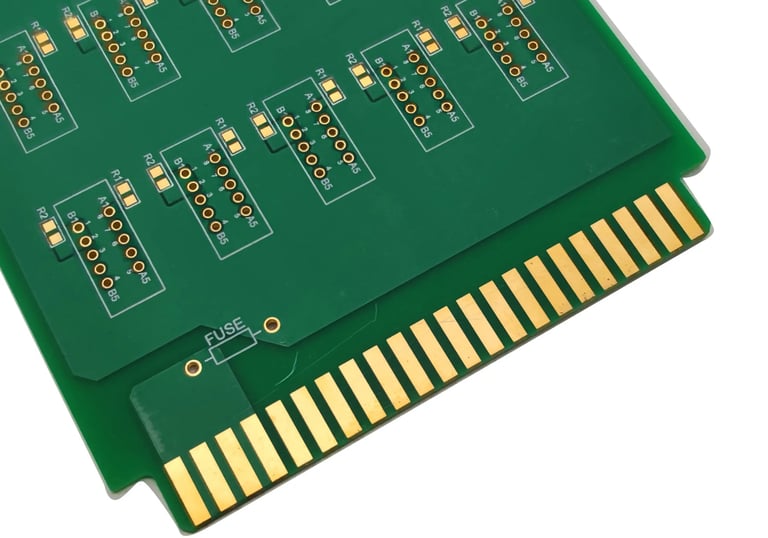

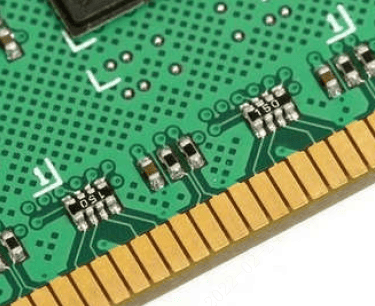

What is a Gold Finger PCB?

Gold Finger PCB is a specialized printed circuit board (PCB) that features gold-plated connectors for secure and reliable communication. Omini offers high-quality Gold Finger PCBs designed for a variety of applications in the electronics industry.

1. Gold Finger Technology: Omini utilizes gold finger technology for processing the edge communication interface of PCBs, ensuring reliable connections in electronic devices.

2. Durable Gold Plating: The copper pads on Omini Gold Finger PCBs are plated with 10 to 100 micro-inches of hard gold, ensuring high durability and excellent conductivity.

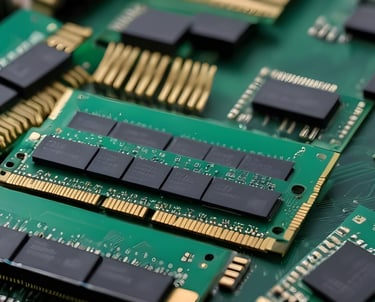

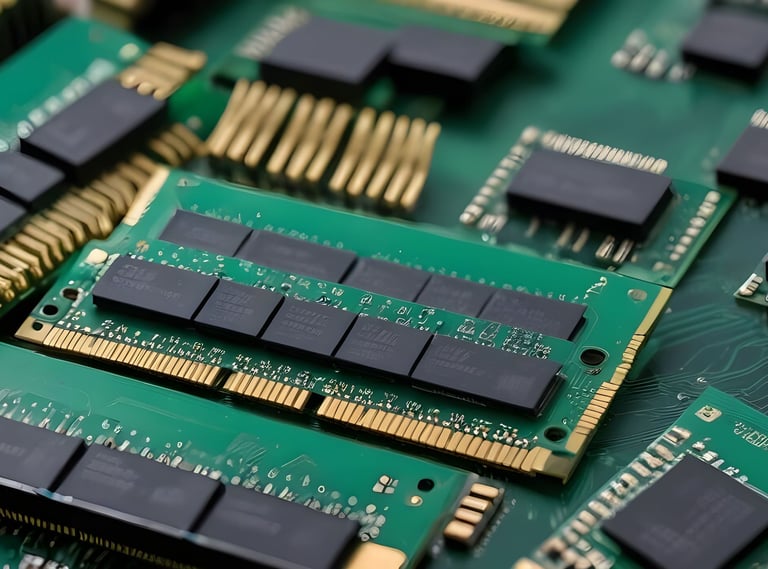

3. Applications in Communication: Omini Gold Finger PCBs are commonly used in quick plug-in devices, such as USB flash drives and DDR4 RAM, which require frequent insertion and removal.

4. Oxidation Resistance: Gold resists oxidation and maintains high conductivity, making it the ideal material for Omini Gold Finger PCBs that need to endure repeated use.

5. Cost Considerations: While Omini Gold Finger PCBs offer superior performance, the additional gold plating makes them more expensive compared to standard PCBs with immersion gold (ENIG).

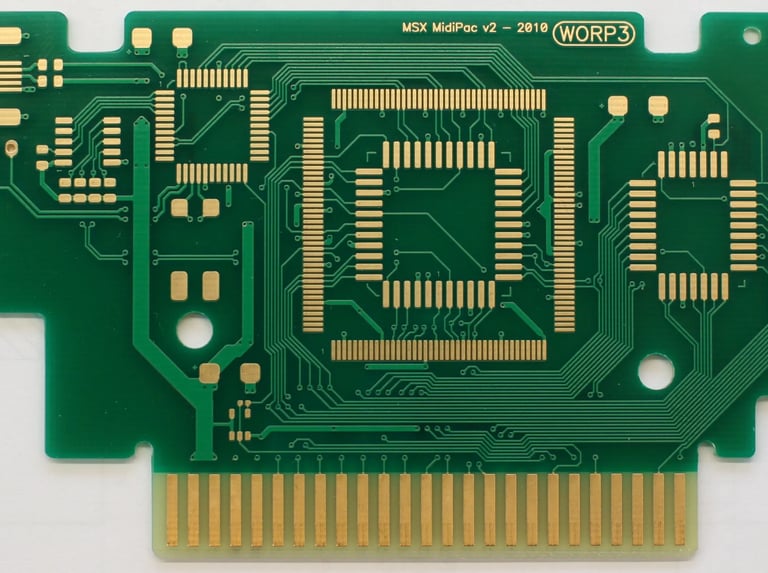

Classification and Features of PCB Gold Fingers

Gold Finger PCB is a surface technology used in PCB manufacturing, providing high-performance connectors for electronic devices. Omini offers various types of Gold Finger PCBs, each designed for specific needs and applications.

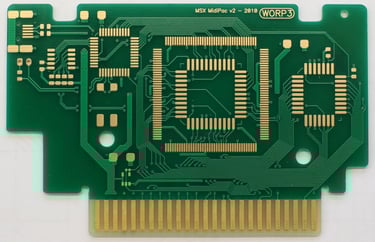

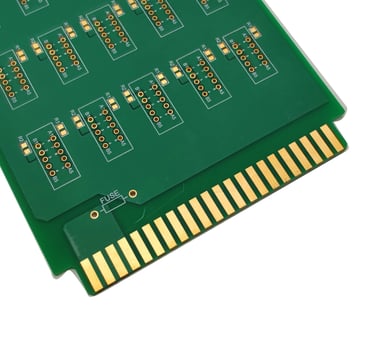

1. Ordinary Gold Finger: Omini Gold Finger PCBs feature rectangular pads arranged neatly on the edge of the PCB, with consistent length and width, ensuring stable connections.

2. Subsection Gold Finger: In Omini PCB designs, subsection gold fingers are characterized by rectangular pads located at different lengths along the PCB edge, offering flexibility for device integration.

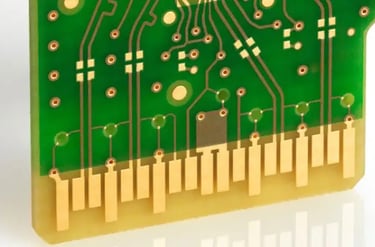

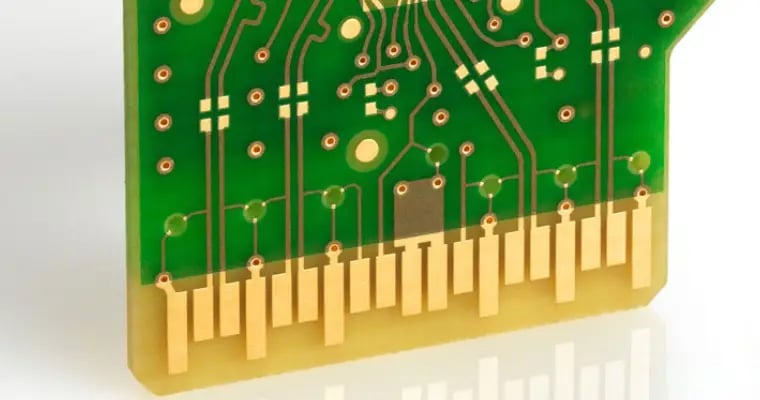

3. Different Length Gold Finger: Omini Gold Finger PCBs can feature pads of varying lengths to fit into corresponding slots, improving mechanical and electrical performance.

4. Improved Fit and Functionality: Omini Gold Finger PCBs are designed to ensure reliable electrical connections, reduce resistance, and minimize signal interference for efficient operation.

5. Enhanced Durability: Gold’s corrosion-resistant properties make Omini Gold Finger PCBs more durable than those using copper or aluminum contacts, offering superior long-term reliability in demanding environments.

Two Main Technologies Used for Gold Finger Plating

Gold Finger Plating is a critical technology in PCB manufacturing, and Omini utilizes advanced techniques to ensure high-quality and reliable gold finger connectors for a variety of applications.

1. Using Lead Wire from the Gold Finger Edge: In this method, Omini uses a lead wire from the gold finger edge as the gold plating wire. After plating, the wire is removed using milling and etching methods. However, this process can leave lead wire residue around the gold finger, which may expose copper, potentially violating copper exposure requirements.

2. No Lead Wire from the Gold Finger: In this technology, Omini avoids the use of lead wires by connecting the gold finger to the PCB’s inner or outer circuit layers for plating. This method eliminates copper exposure around the gold finger. However, for high-density circuits, this technique may not be effective in isolating the gold finger from the PCB circuit.

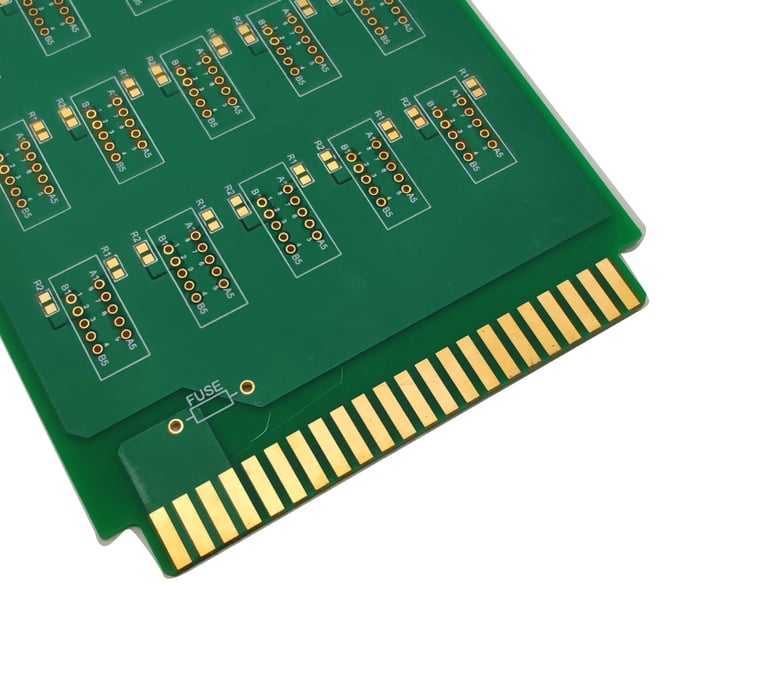

The Advantages and Disadvantages of Plating Gold Finger

Gold Finger PCB Plating offers significant benefits for high-performance applications, and Omini ensures top-quality gold plating for reliable electrical connections. However, it also comes with some drawbacks.

1. Advantages of Gold Finger Plating: Omini Gold Finger PCBs feature a gold plating thickness ranging from 3 to 50 microns, providing high hardness, wear resistance, and excellent oxidation resistance for long-lasting performance.

2. Disadvantages of Gold Finger Plating: Despite its advantages, plating gold can lead to issues such as short gold wires, poor solder strength, and higher costs. Additionally, the skin effect can enhance high-frequency signal transmission but may cause signal degradation at lower frequencies.

Common Problems and Treatment of Plating Gold Fingers

Gold Finger PCB Plating can face several issues during the manufacturing process. Omini provides solutions to these common problems, ensuring high-quality and reliable gold finger connectors for your electronic products.

1. Scoring in the High Current Area:
Cause: Low gold concentration, improper proportion, insufficient stirring, and nickel-copper contamination of gold plating liquids.

Solutions: Add gold salts, increase the proportion, enhance stirring, and clean metal contaminants in the plating solution.

2. Poor Coating Adhesion:
Cause: Inadequate adhesion between copper and nickel, poor adhesion between nickel and gold, insufficient cleaning before plating, and high stress in the nickel plating layer.

Solutions: Ensure proper copper treatment before nickel plating, strengthen nickel treatment before gold plating, purify the plating solution, and perform towing or carbon treatment for nickel cylinders.

3. Poor Gold Colour:
Cause: Insufficient additives, high pH value, and contamination from metal ions.

Solutions: Replenish appropriate additives, adjust pH value, remove metal ion contamination, and avoid frequent nickel ion pollution.

4. The Gold Surface Colour Changed:
Cause: Inadequate cleaning and drying, or storing gold-plated PCBs in a corrosive environment.

Solutions: Improve cleaning and drying after gold plating, and store gold-plated PCBs away from corrosive environments.

5. Gold Finger Oxidation:
Cause: Exposure to air for extended periods causes oxidation, and dust adherence increases resistivity, leading to poor contact.

Solutions:
· Use an ordinary eraser to remove oxidation and dust.
· Use a pencil to remove the oxidation layer—ensure there is no graphite residue left after cleaning to avoid short circuits.
· Use PCB washing solution with a cotton swab or dust-free cloth. If unavailable, substitute with anhydrous ethanol or isopropyl alcohol. Avoid inhaling excessive fumes during cleaning.

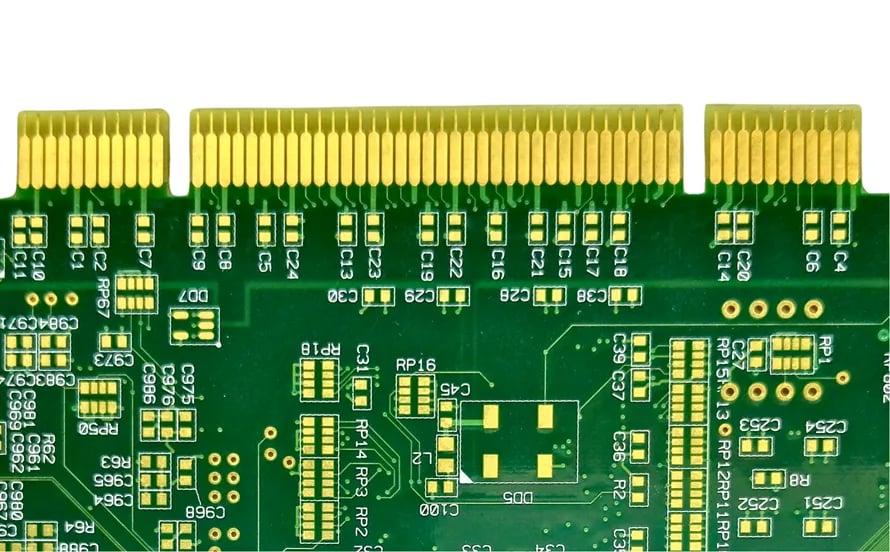

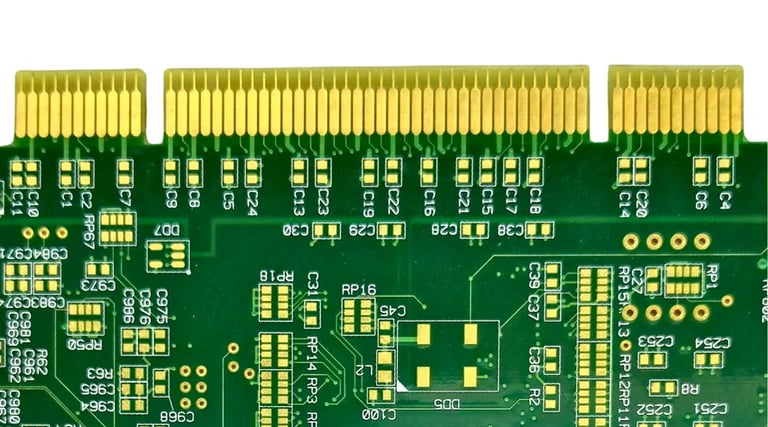

Appearance Inspection Standard for Gold Finger PCB

Gold Finger PCB Manufacturing is a precise process, and Omini ensures strict quality control throughout the production stages to meet high standards for gold finger connectors.

1. Convex Angle:
A. When the gap between two PCB gold fingers is greater than 0.38 mm (15mil), a convex angle is acceptable, but the space must be at least two-thirds of the gap.
B. When the gap between two PCB gold fingers is less than 0.38 mm (15mil), the convex angle phenomenon is not allowed.

2. Break:
The break area in a single PCB gold finger area must not exceed 20%. If the break area is less than 20%, no more than two positions of breakage are allowed on each side of the gold finger (including the two positions).

3. Scratch:
A. The scratch on the PCB gold finger must not expose the base material (copper or nickel).
B. Any scratch that does not expose the substrate must not exceed 1/5 of the total length of the gold finger on one side.

A Few Design Rules and Notes for PCB Gold Finger

When designing Gold Finger PCBs, it’s crucial to follow best practices to ensure reliability and compliance with industry standards. Omini offers expert PCB design and manufacturing services that meet these design requirements.

1. Ensure Industry Compliance: Design the PCB gold finger to meet all relevant industry standards for quality and performance.

2. Consider Plating Thickness: Use a smaller plating thickness on gold finger PCBs to optimize performance and reduce costs without compromising quality.

3. Avoid Plating Through Holes: Do not place plating through holes in the gold finger area to maintain the integrity of the design.

4. No Solder Mask or Silkscreen: Refrain from adding solder mask or silkscreen on the gold finger PCB plating area to avoid interference with the connection.

5. Solder Mask Opening Treatment: Ensure the gold finger position is treated with a full solder mask opening, and avoid the need for a stencil on the pin.

6. Plan for Soldering Operations: Plan the design with potential soldering operations in mind to ensure efficient assembly.

7. Optimize Cost Efficiency: Consider cost-effectiveness while maintaining the required quality for gold finger PCBs.

8. Consider Impact of Other Components: Pay attention to other components in the PCB that may impact the gold finger design.

9. Use Appropriate Materials: Choose suitable materials and surface finishes for gold finger PCBs to ensure durability and performance.

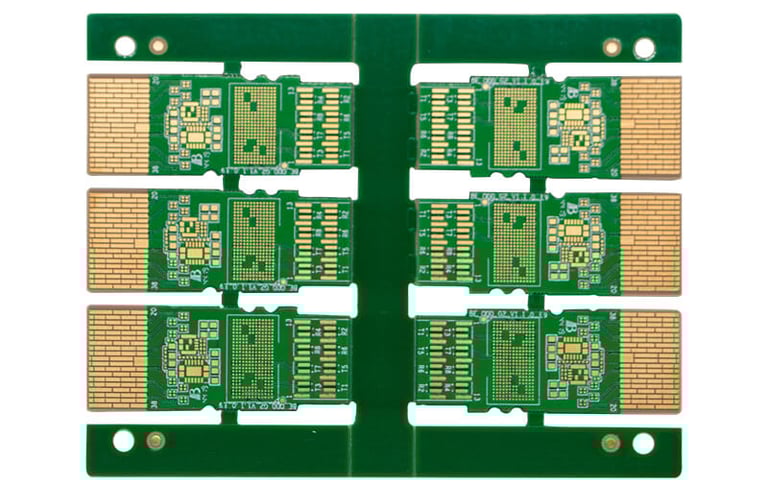

The Panel Mode for Gold Finger PCB

As the HDI circuit board industry has rapidly developed globally, China has become a major hub for HDI PCB manufacturing. Among the top HDI PCB manufacturers in China, Omini stands out for delivering high-quality, reliable HDI printed circuit boards, leveraging cutting-edge technologies to meet diverse customer needs. Here’s why you should choose Omini as your trusted HDI PCB partner:

When designing Gold Finger PCBs, the choice of panel mode plays a significant role in production efficiency and quality. Omini offers flexible and reliable panelization options to suit various manufacturing needs.

1. Without Side Strips:
Some customers require side strips on all four sides, including the gold finger PCB section. This is a feasible option, though not all manufacturers can accommodate it. At Omini, we specialize in offering this customized solution for gold finger PCBs.

2. With Side Strips:

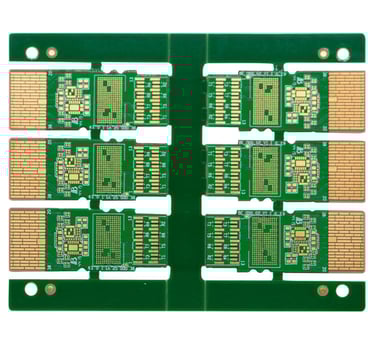

The standard panelization mode for hard gold PCBs typically involves a back-to-back configuration with the gold finger faces outward. This layout simplifies production, and it’s common not to add side strips around the gold finger area.

The Function of Gold Finger Lead Wire

Gold Finger Lead Wires are crucial components in ensuring reliable electrical connections between PCBs and other electronic devices. Omini provides high-quality solutions for integrating gold finger lead wires in advanced PCB designs.

1. Interconnection with External Components:
Gold finger lead wires are used to establish connections between PCBs and various external electronic components, ensuring seamless communication and performance.

2. Reduction of Corrosion and Oxidation:
Serving as connectors for devices such as computers, smartphones, DVD players, and home appliances, gold finger lead wires help reduce oxidation and corrosion, ensuring long-lasting connections.

3. Enhanced Signal Integrity:
The gold-plated contacts of gold finger lead wires improve signal integrity, making them ideal for high-speed data transmission applications.

4. Reliability and Cost-Effectiveness:
With Omini’s expertise in gold finger lead wire integration, customers benefit from high reliability, durability, and cost-effectiveness in OEM applications.

How to Remove the Gold Finger Lead Wire?
To ensure a clean and precise gold finger connection, the removal of the lead wire is a key step. Omini follows a meticulous process for gold finger lead wire removal.

1. Beveling for a Neat Finish:
The lead wire is removed by beveling it, ensuring a clean and smooth gold finger edge.

2. Secondary Etching Process:
When dealing with lead wires of varying lengths, Omini applies a two-step etching process. The first etching removes the PCB’s circuit, followed by covering the area with dry film or peelable blue masks. Gold is then plated onto the gold finger area, and a final etching removes the excess lead wire.

Why Choose Omini for Your Gold Finger PCB

When it comes to Gold Finger PCB solutions, Omini stands out as a leader in the industry. With years of experience and a commitment to quality, Omini ensures exceptional results for all your PCB needs.

1. Experienced Team:
Omini boasts a professional team with over 16 years of experience in the Gold Finger PCB industry, comprising skilled technical personnel, workers, and a customer service team dedicated to excellence.

2. Excellent Quality Control:
Committed to quality, Omini strictly adheres to the ISO9001 quality management system throughout the entire Gold Finger PCB production process—from raw material procurement to final product shipment.

3. Competitive Pricing:
Thanks to our efficient supply chain and dedicated workforce, Omini is able to provide high-quality Gold Finger PCBs at highly competitive prices, ensuring the best value for our customers.

4. Great Customer Service:
At Omini, we prioritize customer satisfaction. Our sales team is always responsive, supporting you through RFQ, order confirmation, delivery, shipping, and post-sale services.

5. Trusted by 1000+ Customers:
With a reputation for high-quality products and exceptional Gold Finger PCB services, Omini has earned the trust of over 1000 customers worldwide.
