High-Volume PCB Assembly

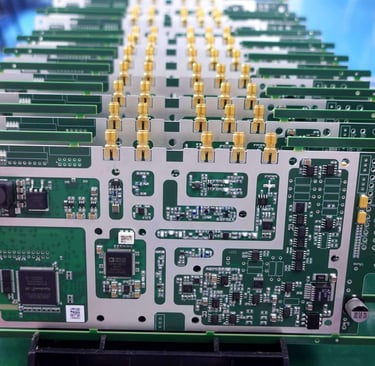

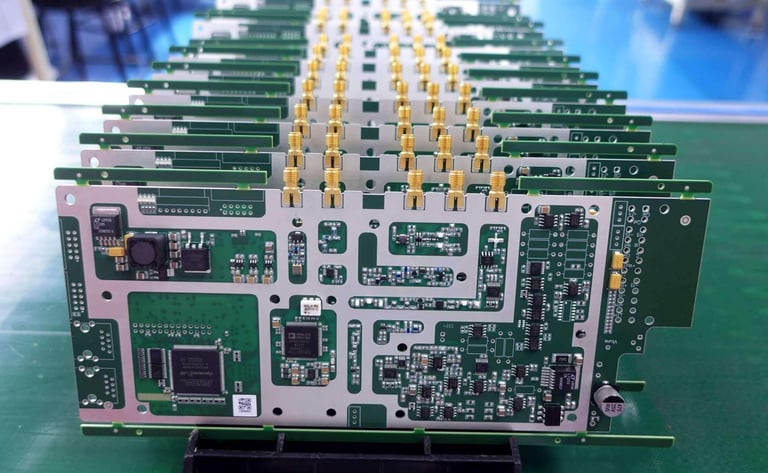

What is High Volume PCB Assembly?

Omini defines high-volume PCB assembly as the mass production of PCB assemblies in large quantities, typically 5,000 units or more. This process requires advanced technology and precision equipment to ensure each product meets strict specifications.

High-volume PCB assembly relies on automated processes for material handling and component placement, reducing human intervention and enabling faster production. This method is ideal for achieving high-quality, cost-effective PCB assemblies at scale.

High-volume PCB assembly is widely used in industries like consumer electronics (laptops, smartphones), automotive electronics, and more, making it the perfect solution for large-scale production with consistent quality and low costs.

Benefits of High-Volume PCB Assembly

Omini specializes in high-volume PCB assembly, offering numerous advantages for businesses looking to scale their production efficiently and cost-effectively.

1. Greater Efficiency
High-volume PCB assembly streamlines production, reducing time and labor costs. Omini’s automated processes help increase throughput, making large-scale production faster and more efficient.

2. Enhanced Quality Control
Producing large quantities in a single run ensures consistent quality control. Omini’s strict quality checks at every stage guarantee reliable and high-performance PCBs.

3. Cost Savings
Mass production reduces the cost per unit, offering significant savings. Omini’s efficient manufacturing processes help customers achieve lower costs without compromising on quality.

4. Faster Production Time
Automated processes, such as component placement and testing, significantly cut production times. Omini ensures rapid turnaround without sacrificing precision or quality.

5. Improved Scalability and Expansion Options
With expertise in high-volume PCB assembly, Omini can quickly scale operations to meet growing demands, all while maintaining strict quality standards and meeting deadlines.

6. High-Level Automation
Omini uses state-of-the-art automated equipment to process multiple PCBs simultaneously, enabling faster production and minimizing manual labor, ensuring a smooth, high-efficiency process.

By choosing Omini, companies can access the benefits of high-volume PCB assembly, including efficiency, cost savings, scalability, and reliable quality control.

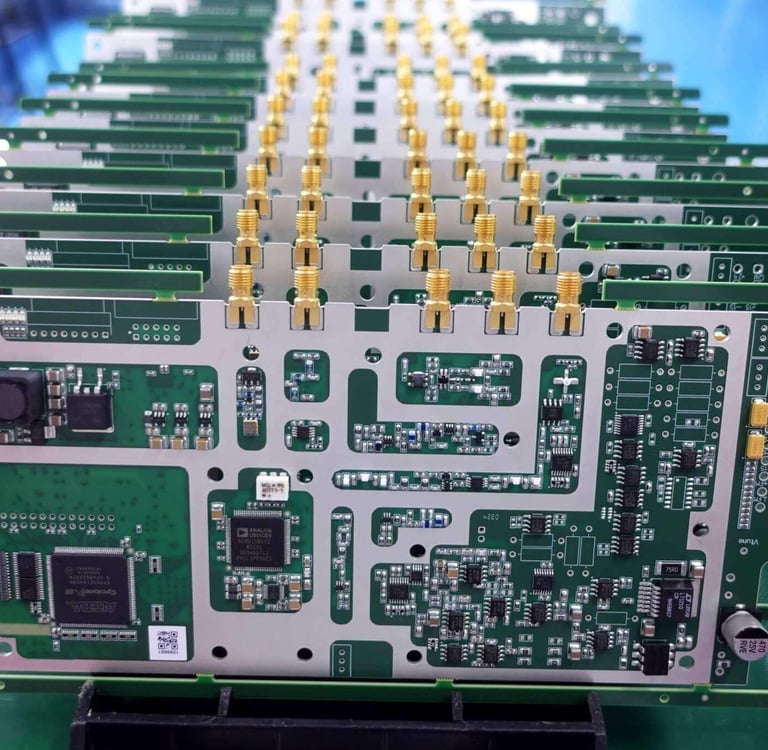

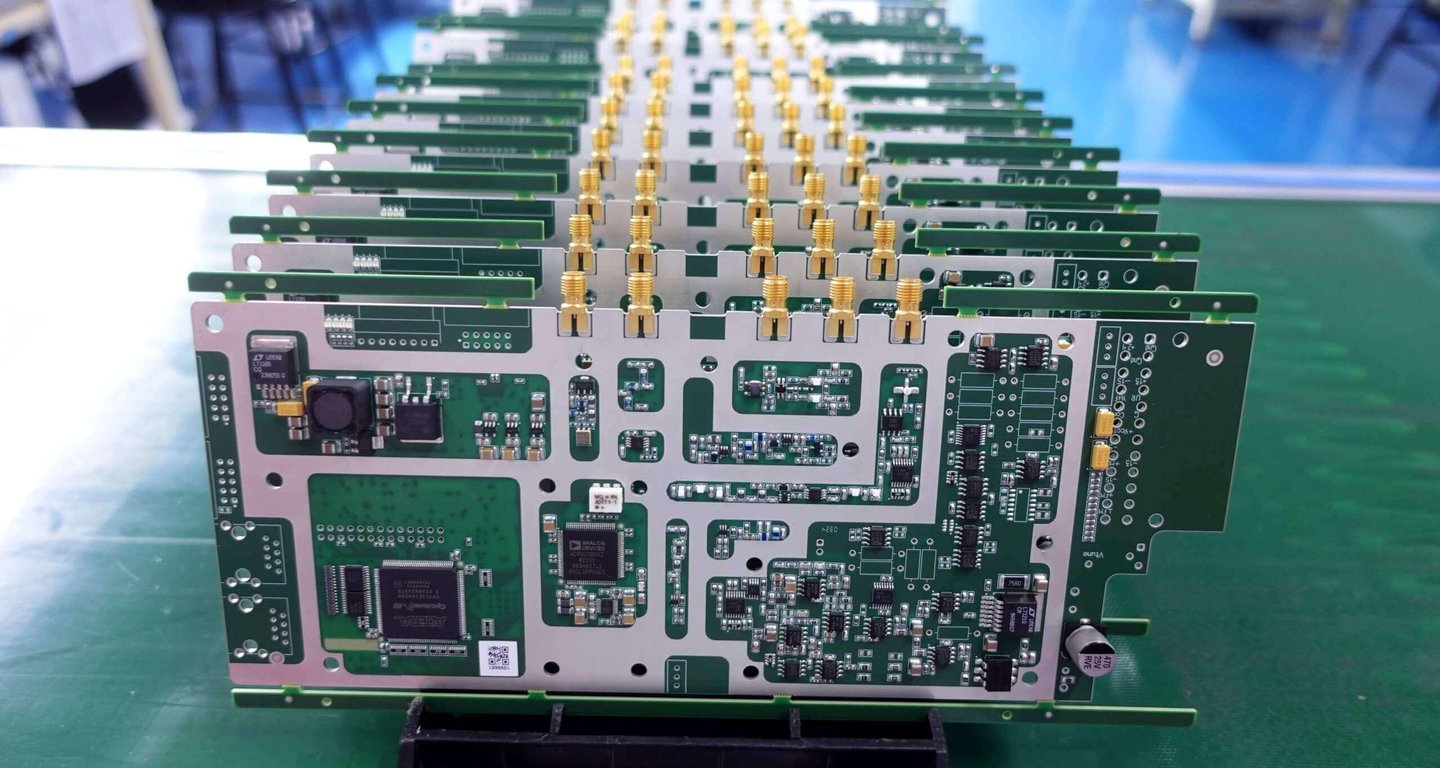

Application of High-Volume PCB Assembly Services

Omini provides high-volume PCB assembly services across a wide range of industries, delivering reliable and cost-effective solutions for large-scale production.

• Industry: Omini supports various industrial sectors, providing robust and durable PCB solutions for diverse applications.

• Automation & Control: We specialize in high-volume assemblies for automation systems, ensuring efficiency and precision in control systems.

• LED & Lighting: Omini manufactures high-quality PCB assemblies for LED and lighting applications, ensuring energy efficiency and long-lasting performance.

• Energy & Power: We offer PCB assembly services for the energy sector, providing reliable solutions for power management and distribution systems.

• Telecommunications & Wireless, 5G: Omini supports high-volume production of PCBs for telecommunications, including 5G and wireless devices, enabling fast and reliable communication networks.

• Automotive Industry: We provide durable and high-performance PCB assemblies for automotive electronics, ensuring safety and reliability in vehicles.

• Consumer Electronics: Omini manufactures PCBs for a wide range of consumer electronics, including smartphones, tablets, and smart devices, meeting high-quality standards.

• Medical Devices: We specialize in PCBs for medical devices, including monitors, scanning technologies, control systems, and internal devices, ensuring accuracy and reliability.

• Industrial Control: Omini supports industrial control systems, delivering high-performance PCBs that optimize operations in factories and production lines.

• Computer & Networks: Our PCB assembly services cater to the computing and networking industry, ensuring reliable performance in servers, routers, and other devices.

• Test and Measurement: We provide PCBs for test and measurement equipment, delivering precision and durability for accurate data collection.

• Servers, Data Centres & Big Data: Omini supports high-performance PCB assembly for servers and data centres, essential for big data computing and cloud infrastructure.

• Safety Control: We offer PCB solutions for safety control systems, ensuring the highest reliability in critical applications.

• IoT & Portable Devices: Omini manufactures PCBs for IoT devices and portable electronics, ensuring compact designs with optimal performance for smart and connected applications.

Omini is your trusted partner for high-volume PCB assembly, providing tailored solutions to meet the unique demands of each industry.

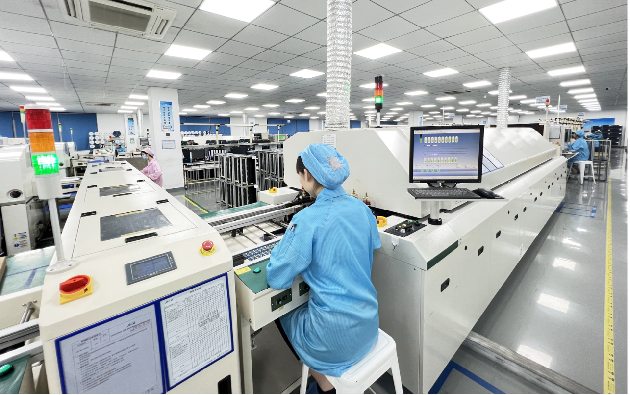

Key Steps in High-Volume PCB Assembly

The high-volume PCB assembly process shares similarities with standard PCB assembly but demands stricter attention to detail and quality. Omini ensures that all materials are precisely verified, and every step is meticulously followed. Rigorous testing and inspections, including 100% checks, are conducted before products are shipped to customers. Below is an overview of the key steps in high-volume PCB assembly.

1. Incoming Material Inspection
The process begins with incoming material inspection. Omini verifies that all electronic components match the Bill of Materials (BOM) and meet quality standards. The PCB boards undergo comprehensive inspection and electrical testing to ensure they are of the highest quality before moving to the next stage.

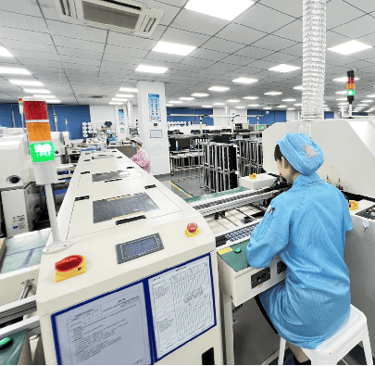

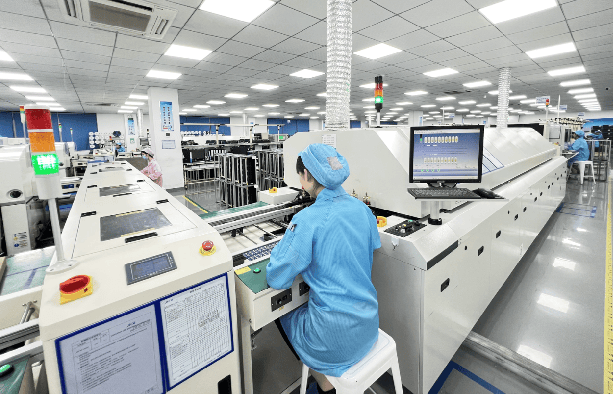

2. SMT & Reflow Soldering
Once the components are ready, surface-mount technology (SMT) assembly is used to place components onto the bare PCB boards. After component placement, reflow soldering is applied to securely solder the components to the PCB surface, ensuring reliability and durability.

3. PTH and Wave Soldering
Following SMT assembly, through-hole technology (THT) components are inserted into the PTH holes. Wave soldering is then used to ensure the components are tightly soldered into the boards, providing a secure connection for the high-volume production process.

4. Quality Control
After assembly, Omini conducts thorough quality control checks. Common inspections include AOI (Automated Optical Inspection), X-ray inspection, visual checks, in-circuit testing (ICT), and functional testing. These steps ensure that every PCB meets the highest standards before being delivered to clients.

How to Choose a High-Volume PCB Assembly Manufacturer?

1. Plan Ahead
Before finalizing your PCB design, selecting the right supplier should be a priority. Early collaboration with a PCB assembly and prototyping manufacturer like Omini allows you to incorporate expert insights into your design, optimizing manufacturability and reducing testing costs. Engaging with a high-volume PCB manufacturer in advance helps minimize expenses down the road.

2. Choose a Collaborative Partner
Select a supplier that views your relationship as a partnership, not just a transaction. Projects often require adjustments in design, modifications, and testing. Omini works closely with clients, providing flexible solutions and ensuring seamless cooperation throughout the project lifecycle. This long-term partnership approach ensures smooth execution for all future high-volume PCB assembly needs.

3. Assess the Supplier’s Capabilities and Capacity
Ensure the supplier offers the complete range of services you need, including PCB assembly, component sourcing, SMT placement, testing, and design support. Does the supplier have the right equipment to efficiently handle your specific PCBAs? Can they meet your production and delivery requirements? Omini has the experience, equipment, and capacity to meet your high-volume production needs and tight deadlines.

By following these guidelines, you can confidently select a trusted supplier like Omini, which has a proven track record of delivering high-quality, high-volume PCB assembly services for clients across industries.

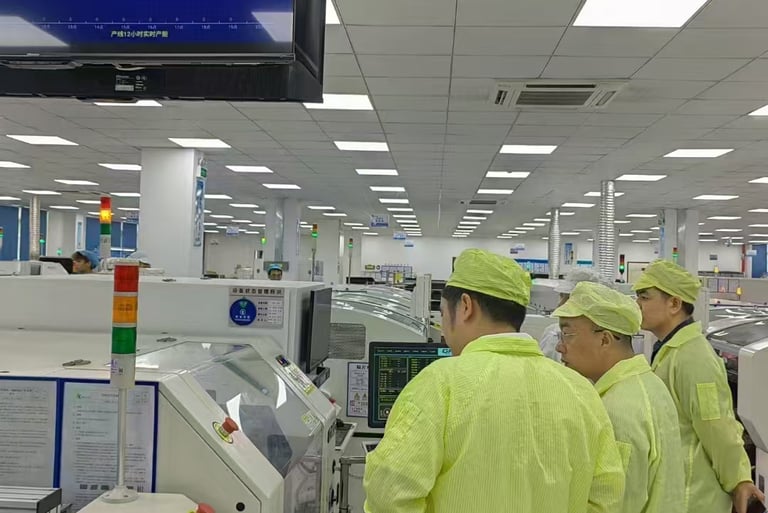

Omini’s Advantages for High-Volume PCB Assembly

High-volume PCB assembly enables the production of complex designs with precise component placement. For high-volume PCB assembly, manufacturers must have well-defined processes, such as stringent testing protocols and automated inspection systems, to minimize errors and ensure products meet customer specifications and industry standards.

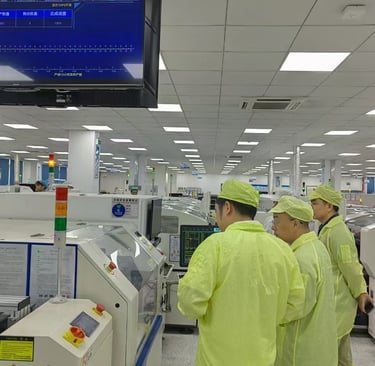

Omini, located in Shenzhen, China—an electronics hub—leverages the region’s cost-effective labor, advanced supply chains, and our experienced team to provide competitive pricing for high-volume PCB assembly services since 2007.

1. 16+ Years of Expertise in PCB Fabrication and Assembly
With over 16 years of experience, Omini has become a leading player in high-volume PCB assembly. Our established core technologies and products have earned us a strong reputation in the industry, making us a reliable partner for high-volume PCB assembly needs.

2. Top-Quality Products
At Omini, we deliver high-quality PCB assembly solutions that meet both performance and cost-efficiency goals. Our commitment to quality and practical solutions ensures that customers receive the best value from every project, with outstanding results that align with industry standards.

3. Competitive Pricing
Since 2007, Omini has maintained strong partnerships with customers and suppliers, allowing us to access low-cost electronic components and PCB boards. Our experienced engineering and production teams optimize yield rates, reducing costs and passing the savings on to our clients without compromising quality.

4. Excellent Customer Service
We pride ourselves on providing reliable, durable PCB assembly services for both low and high volumes. Our dedicated team works closely with clients to ensure all project requirements are met, backed by excellent after-sales service that strengthens customer trust and satisfaction.

5. Building Long-Term Partnerships
At Omini, we are committed to establishing long-term, mutually beneficial relationships with our clients. We aim to be your trusted, high-volume PCB manufacturer, supporting your projects and growth with continuous, high-quality service.
