Omini Microwave & RF PCB Solutions

What are Omini RF and Microwave PCBs?

In the rapidly evolving world of wireless technology, RF and Microwave PCBs are the critical components driving innovation. These once expensive circuit boards are now widely used, even in affordable commercial products, for specialized applications such as GNSS (Global Navigation Satellite System) time calibration.

Key Features of Omini RF and Microwave PCBs:
1. Wireless Communication Technology: RF and Microwave PCBs enable long-distance wireless communication via satellite, mobile phones, TVs, aircraft, and ships, ensuring seamless data transmission.

2. High-Frequency Signals: As demand for faster wireless data transmission increases, higher frequency signals are essential, driving the need for more sophisticated PCB designs.

3. Power and Frequency Management: For longer-distance communication, more power and low-frequency signals are required, highlighting the complexity of designing effective RF and Microwave PCBs.

4. Design and Fabrication Challenges: The higher the frequency, the more advanced the design, making RF and Microwave PCBs some of the most challenging and specialized types in the industry.

5. Precision Engineering: Due to the refined features necessary for performance, RF and Microwave PCBs tend to be more expensive, but Omini ensures cost-effective solutions without compromising on quality.

At Omini, we specialize in the design and manufacturing of RF and Microwave PCBs, leveraging over 16 years of experience to meet the most demanding requirements in the industry. Our expertise ensures high-quality, reliable solutions for your complex RF and Microwave applications.

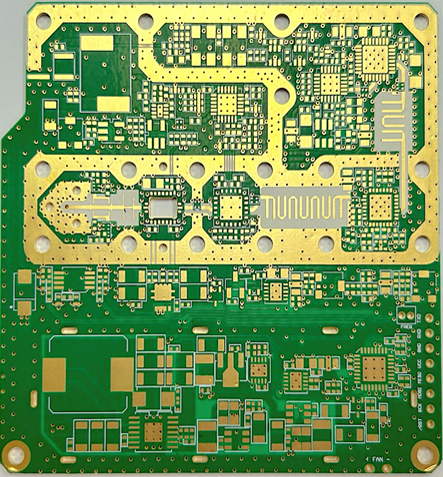

Advantages of Omini RF and Microwave PCBs

Omini RF and Microwave PCBs are recognized as some of the most advanced circuit boards in the industry. Due to their ability to handle frequencies beyond 1 GHz, these PCBs require careful design and precision engineering. Here are some of the key advantages of Omini RF and Microwave PCBs:

Key Advantages of Omini RF and Microwave PCBs:
1. Minimal Attenuation: Omini RF and Microwave PCBs exhibit very minimal attenuation, significantly reducing the power required to transmit signals. This not only improves signal integrity but also enhances power management. In fact, microwave PCBs are known for having some of the highest power efficiencies in the industry.

2. High-Speed Data Handling: One of the unique selling points of Omini Microwave and RF PCBs is their ability to handle high-speed data. Microwave PCBs are crucial for modern communication technologies like Wi-Fi and 5G (operating between 2.4 GHz and 6 GHz for low-band 5G). For even higher speeds (50 GHz and beyond), specialized Omini Microwave PCBs are necessary to maintain signal integrity and performance.

3. Excellent Thermal Management: Omini RF and Microwave PCBs are designed with high-standard materials that feature an increased amount of copper for superior heat management. Effective thermal management reduces heat-related noise (such as Johnson-Nyquist noise) and improves overall signal integrity, ensuring reliable PCB performance in high-frequency applications.

4. High-Performance Efficiency: The advanced design and materials used in Omini Microwave and RF PCBs result in highly efficient power delivery and signal transmission, making them ideal for critical wireless technologies that require precision and reliability.

While Omini RF and Microwave PCBs are associated with a higher cost and complex manufacturing process, the benefits they offer far outweigh these challenges. These PCBs are indispensable in many cutting-edge wireless technologies and cannot perform without the advanced features they provide.

At Omini, we specialize in manufacturing high-quality RF and Microwave PCBs that meet the rigorous demands of modern communication systems. With over 16 years of expertise, Omini is your trusted partner for designing and producing advanced PCBs for high-frequency, high-performance applications.

Applications of Omini RF and Microwave PCBs

Omini RF and Microwave PCBs are essential in industries that require high-frequency signal transmission, wireless communication, and high signal integrity. These advanced PCBs are deployed in a wide range of applications that demand precision and reliability. Here are some key applications of Omini RF and Microwave PCBs:

Key Applications of Omini RF and Microwave PCBs:

1. Radar Systems: Radar (Radio Detection and Ranging) is crucial for navigation and tracking, used in both military and civilian aircraft and ships. Omini Microwave and RF PCBs are used in advanced radar systems to detect objects by receiving reflected signals. These PCBs are designed to maintain signal integrity, even under extreme conditions where any signal attenuation can lead to critical data loss.

2. Navigation Systems: Omini RF PCBs are integral to Global Navigation Satellite Systems (GNSS), such as GPS, BDS, and GLONASS, which operate in the 1 GHz to 2 GHz L-band frequency range. While these systems do not require highly complex microwave PCBs, they demand precise impedance control, material selection, and antenna routing to ensure accuracy and reliability.

3. Telecommunication: Omini Microwave and RF PCBs play a vital role in telecommunication technologies, including 5G, Wi-Fi, Bluetooth, and NFC, where signal integrity is critical. With communication speeds reaching over 5 GHz in increasingly noisy environments, Omini PCBs are designed for superior shielding and minimal heat generation, making them ideal for handheld devices like mobile phones and walkie-talkies.

4. Automation Devices: In industrial automation, Omini Microwave PCBs are used to transmit and receive synchronization data for automation systems. These devices typically operate in harsh environments with high noise levels and temperature variations, requiring highly sensitive and reliable PCB designs.

5. Medical Equipment: Omini RF and Microwave PCBs are essential for medical imaging machines, such as MRI (Magnetic Resonance Imaging) systems. These machines rely on noise-free images for accurate diagnosis, and Omini PCBs ensure the integrity of these critical signals during processing.

6. Broadcasting: RF PCBs are widely used in broadcasting systems for applications like antenna TV signals, FM, and AM radio. These systems, while not as advanced as other wireless technologies, still require reliable signal transmission for ultra-long-distance communication, with Omini RF PCBs providing the necessary performance.

At Omini, we specialize in providing high-quality RF and Microwave PCBs for a variety of industries. With over 16 years of experience, Omini delivers cutting-edge solutions that meet the stringent requirements of modern communication systems, navigation, automation, medical imaging, and broadcasting.

Challenges of Omini Microwave and RF PCB Design and Fabrication

Designing and fabricating RF and Microwave PCBs presents unique challenges, primarily due to the susceptibility of RF and Microwave signals to noise and attenuation during transmission and reception. As the frequency increases, the sensitivity to noise becomes even more critical. Therefore, high-frequency signals require more rigorous precautions and design strategies to maintain signal integrity until they reach the receiver. Some of the key challenges faced in designing and fabricating Omini RF and Microwave PCBs include:

Key Challenges in Omini Microwave and RF PCB Design:
1. Maintaining Impedance Control: Proper impedance control is essential for high-speed signal transmission. Poor impedance control can result in signal reflection and path attenuation, leading to performance degradation. Modern CAD and EDA tools help ease impedance control, but tight tolerance specifications during fabrication can increase complexity and cost. Omini ensures precise impedance control throughout the design and manufacturing process.

2. Choosing the Right Materials: Material selection is crucial for Omini Microwave and RF PCBs. While high-quality FR4 may suffice for lower-frequency RF PCBs, Omini Microwave PCBs require specialized materials like Rogers RO4000 Series, Isola IS620, and Isola Astra, which offer low dielectric constants, low dissipation factors, and high thermal conductivity. FR4 is generally not recommended for Microwave PCBs due to its limitations at higher frequencies.

3. Thermal Management: Efficient thermal management is critical in Omini Microwave PCBs to mitigate issues like Johnson-Nyquist noise. This requires materials with high thermal conductivity and low loss tangent, along with additional copper to manage heat generated by components and traces effectively.

4. Maintaining EMC (Electromagnetic Compatibility): Electromagnetic compatibility (EMC) is essential for Omini Microwave PCBs. Achieving EMC involves using proper shielding and grounding techniques, optimal trace routing, and the application of EMI filters. Failure to manage EMC properly can lead to signal loss and interference, compromising the performance of the PCB.

5. Achieving Tighter Tolerance and Smooth Surface Finish: Microwave PCBs require ultra-smooth surfaces to ensure signal integrity at high frequencies. Even minor imperfections in surface finish can result in signal degradation. Tighter dimensional tolerances and smoother finishes are essential, and Omini ensures that these specifications are met for the highest-quality PCBs.

6. Cost Control: The cost of Omini Microwave and RF PCBs is typically higher than standard PCBs due to the specialized materials, manufacturing processes, and performance requirements. Factors such as material selection, layer stack-up, impedance tolerance, and surface finish contribute to the overall cost, and Omini works to provide cost-effective solutions without compromising on quality.

7. Choosing the Right Manufacturer: Selecting a reliable manufacturer is especially crucial for high-performance Microwave and RF PCBs. Only a few manufacturers specialize in high-grade Microwave PCBs, and most of the best options are located in regions like China. Omini stands out by offering competitive pricing and a wide range of high-frequency materials, ensuring that our clients get the best value without compromising on quality.

Omini Microwave and RF PCBs require the expertise of both the designer and the manufacturer. Any shortcomings in design or fabrication can lead to failure, making it vital to partner with a PCB manufacturer like Omini, which has proven experience in delivering high-performance, reliable PCBs for demanding applications. To ensure your designs are successful, choose Omini—your trusted partner for advanced RF and Microwave PCB solutions.

Why is Omini’s RF and Microwave PCB Services Worthy of Your Attention?

Manufacturing and assembling RF and Microwave PCBs is a complex challenge that requires specialized expertise. RF and Microwave PCB manufacturers must not only ensure high product quality but also manage costs, service cycles, and meet specific customer needs. If you’re looking to optimize costs while maintaining top-quality service, why not consider Omini’s Microwave PCB fabrication and RF PCB fabrication services? As a global manufacturing leader, Omini leverages cost-effective human and material resources to offer superior solutions.

Why Choose Omini for RF and Microwave PCB Services?

1. Customer-Oriented Customized Service: At Omini, we tailor our RF and Microwave PCB solutions to meet your unique requirements, ensuring that each project is aligned with your specific needs and expectations.

2. One-Stop Service Throughout the Whole Process: From design to fabrication, testing, and delivery, Omini provides a comprehensive range of services, streamlining the entire PCB development process for you.

3. Perfect Quality Assurance: With rigorous quality control measures, Omini guarantees that every RF and Microwave PCB meets the highest standards for performance, reliability, and durability.

4. On-Time Delivery Guarantee: We understand the importance of deadlines, and Omini is committed to ensuring your RF and Microwave PCBs are delivered on time, without compromising on quality.

5. Specialized Service Anytime: Whether you have technical questions or specific needs, Omini provides ongoing support and specialized service, ensuring that you receive expert assistance at every stage.

If you have any questions or would like to discuss your project, please contact us. We look forward to collaborating with you and providing you with the highest quality RF and Microwave PCBs!
