PCB Prototype Assembly

What is Prototype PCB Assembly?

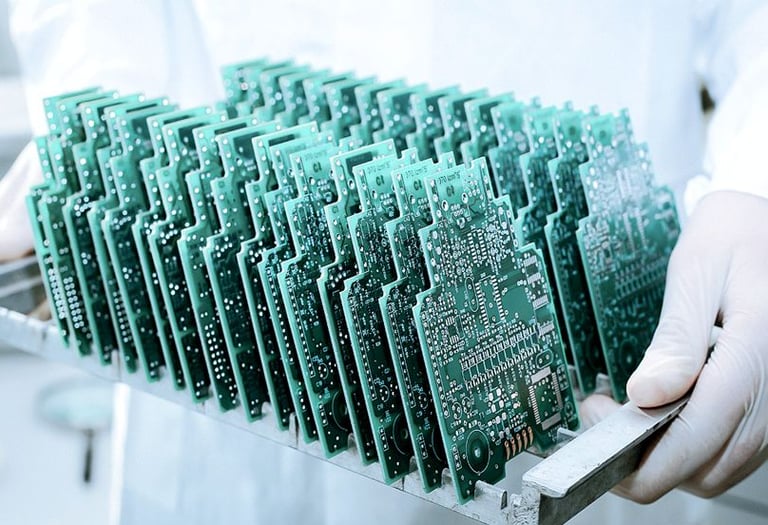

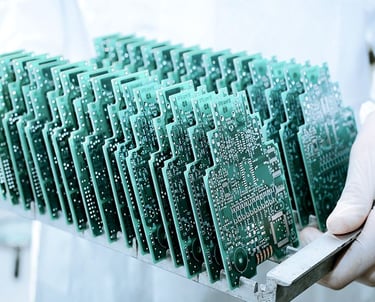

Omini specializes in prototype PCB assembly, a critical process used to build a limited number of samples for verifying the performance of a printed circuit board (PCB) design. This stage allows engineers to identify and correct any errors in the design before mass production. During prototyping, issues like incorrect component choices, improper part placement, or design flaws are uncovered, enabling adjustments such as component modifications, repositioning, or adding new parts.

Prototyping is essential for ensuring that the PCB is manufacturable and reliable, providing valuable early feedback on the design’s performance. This step is crucial for assessing several key aspects:

• Performance Testing: Verifying that the PCB functions as intended in real-world conditions.
• Design Refinement: Identifying potential changes needed to optimize the design for better manufacturability or performance.
• Reliability Evaluation: Ensuring the PCB can withstand real-world stressors such as heat, vibrations, and long-term usage.

By investing in prototype PCB assembly with Omini, you can avoid costly mistakes in later stages, streamline the development process, and ensure your product meets the highest quality standards before moving into full-scale production.

The Benefits of Prototype PCB Assembly

Omini offers prototype PCB assembly services, providing several key advantages that help optimize your product development and manufacturing processes. Below are the main benefits of conducting prototype PCB assembly:

1. Cost Avoidance: Rushing into mass production without proper testing can lead to costly failures due to design flaws, tolerance issues, or unoptimized material combinations. Prototype PCB assembly helps identify and resolve these issues at an early stage, preventing costly recalls, design revisions, and engineering analyses later on.

2. Product Understanding: The prototyping process involves close collaboration with the manufacturing engineering team to perform thorough evaluations. It reveals aspects of the product that may have been overlooked during the initial design phase, allowing for design iterations that improve both robustness and manufacturability. The insights gained from prototyping can also serve as valuable benchmarks for future projects.

3. Quality Assurance: By detecting potential defects early, prototype PCB assembly enables necessary design and process improvements, ensuring better product quality and performance. Additionally, with small production runs, you can gather critical quality data, which is essential for refining assembly processes and ensuring the final product meets the highest standards.

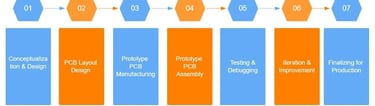

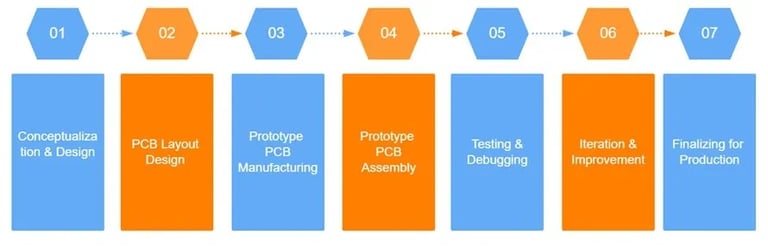

The Main Steps in Prototype PCB Assembly

Omini follows a structured process for prototype PCB assembly to ensure high-quality results. Each step is crucial in achieving the objectives of the project, and requires expertise and attention to detail to ensure a reliable and functional prototype.

1. Component Selection: The design and development team carefully selects the right materials and components that meet the specifications and performance requirements. It is essential to consider factors such as temperature ranges, PCB tolerances, and component sizes. Reviewing component datasheets ensures that all parts align with the intended design criteria.

2. Schematics Capture and Board Layout: Schematics capture involves mapping out the connections between components using standard symbols and part numbers. These schematics are then translated into a PCB layout that defines the component positions, dimensions, and the routing of electrical traces to establish proper connections.

3. Circuit Board Fabrication: Once the schematics and layout are finalized, the design is sent to fabricators to produce the bare printed circuit boards (PCBs). The fabrication process involves several stages, including lamination, drilling, etching, plating, and applying solder masks to create the final bare board.

4. Circuit Board Assembly: The assembly process includes two main techniques: Surface Mount Technology (SMT) and Through Hole Technology (THT). SMT is used for compact designs with small components, while THT is ideal for high-power applications requiring strong mechanical connections. Both methods ensure reliable component attachment to the PCB.

5. Solder Paste Application: Solder paste is applied to the PCB using a stencil printing machine. The precision of paste volume is crucial to avoid issues like incomplete soldering or excess solder. Proper paste selection based on resin, filler size, and viscosity is also critical.

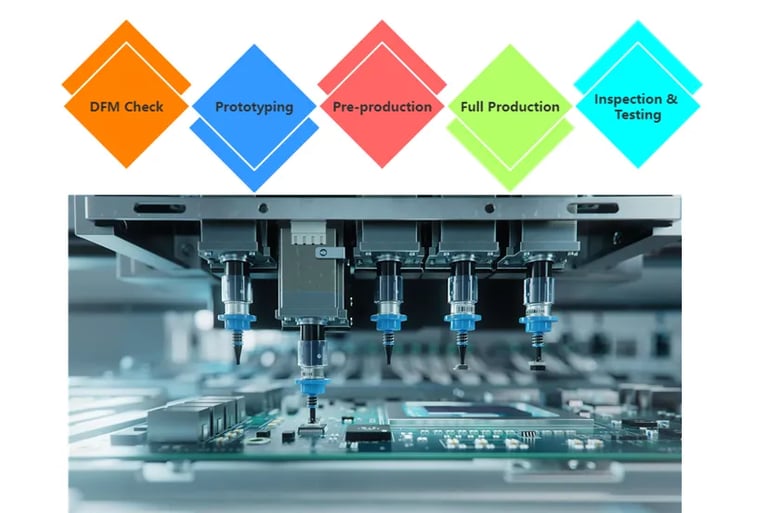

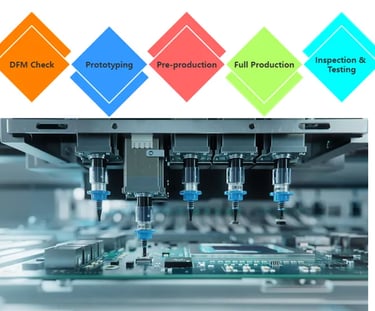

5. Component Placement: A pick-and-place machine places components accurately on the PCB using an intelligent vision system to align with the fiducials. Post-placement inspection helps detect issues like tombstoning, bridging, or misalignment, often linked to PCB layout optimizations.

6. Reflow Process: During reflow soldering, the solder paste is heated to its melting point, ensuring a reliable bond between the PCB and components. The reflow oven uses a specific thermal profile to heat and cool the board, ensuring optimal solder joint formation.

7. AOI and X-ray Inspection: Automated Optical Inspection (AOI) is used for visual inspection of the solder joints and component placement. To inspect hidden areas under components, X-ray inspection is employed, ensuring that the solder joints, components, and traces meet quality standards.

8. Testing and Reliability Assessment: Once assembled, the prototype PCB undergoes rigorous electrical testing to check for opens, shorts, and other potential failures. Additional reliability tests simulate real-world conditions, assessing the board’s durability and performance under stress. This step ensures that the prototype meets the required standards before moving to production.

The Key Factors to Consider in Prototype PCB Assembly

Omini understands that prototype PCB assembly needs to be fast, cost-effective, and of high quality. When selecting a supplier for prototype PCB assembly, the following key factors should be carefully considered:

1. Cost: The cost of prototype PCB assembly is a major factor in choosing a supplier. To obtain accurate pricing, it’s important to clearly outline all project requirements. A standardized quotation format helps compare offers and ensures transparency. China PCB prototype assembly services are often sought after globally due to their competitive pricing without compromising quality.

2. Turnaround Time: Speed is critical in PCB prototype assembly. The quicker the prototype is assembled, the faster it can move into subsequent testing and qualification stages. Early delivery also allows designers and engineers sufficient time to resolve issues, refine the design, and make necessary adjustments. This can accelerate the time-to-market for your product.

3. Technical Expertise: PCB prototype assembly requires significant technical input, especially in the early stages of product development. The process involves risk assessments, product evaluations, and a deep understanding of assembly techniques. A reliable PCB manufacturer with proven technical expertise can provide the support needed to meet your requirements. Omini prides itself on having a skilled team of professionals who offer high-quality technical support throughout the process.

4. Quality: While cost and speed are important, quality is the foremost factor in selecting a PCB prototype assembly supplier. Neglecting quality can compromise the entire project, leading to defects, rework, or even project failure. It’s crucial to be specific and transparent about quality requirements to ensure the assembly aligns with industry standards and meets your expectations.

Why Choose Omini for Your Prototype PCB Assembly Services?

Prototype PCB assembly is a critical service for PCB manufacturers as it determines whether customers will continue their partnership. To build long-term relationships, it’s essential for PCB assembly prototype suppliers to focus on both high-quality products and cost control, offering the most cost-effective solutions for clients.

When considering cost performance, China’s PCB prototype assembly services are a top choice. With its rich resources and affordable labor costs, China is a global leader in manufacturing, backed by a large pool of skilled technical professionals. Omini, as a seasoned provider of PCB prototype assembly in China, brings over 16 years of expertise in the field. We offer the following key advantages:

• Free Samples for First-Time Customers
• Unlimited Order Quantities
• Guaranteed Product Quality
• The Most Competitive Pricing in the Market
• Customer-First Service Philosophy
• One-Stop PCB Assembly Solutions

If you’re interested in learning more about PCB prototype assembly, feel free to contact us. Omini looks forward to becoming your most trusted partner in PCB prototype assembly, and we’re ready to assist with your needs. Reach out to us via call or message!
