Ensuring PCB Quality with Rigorous Testing and Inspections by Omini

Comprehensive PCB Testing and Inspection Services by Omini

At Omini, we ensure your printed circuit boards meet the highest quality standards through meticulous testing and inspection procedures. Here’s a breakdown of our comprehensive services:

1. Manufacturing Process Quality Checks:
• DFM (Design for Manufacturing) analysis for optimized production.
• IQC (Incoming Quality Control) inspection for all materials.
• Visual and mechanical checks after every production stage.

2. Electrical and Structural Tests:
• Electrical testing for open/short circuits.
• AOI (Automated Optical Inspection) to detect soldering and surface defects.
• Hi-Pot (High Potential) testing for insulation strength and TDR impedance tests.

3. Material and Surface Integrity Tests:
• Solderability and thermal testing to ensure durability under stress.
• Tape (adhesion) and peel tests to evaluate surface bonding strength.

4. Industry Compliance and Dimensional Inspections:
• Inspections conforming to IPC-A-600 Class 2 and Class 3 standards.
• Dimensional and micro-section analysis to verify structural accuracy.

5. Post-Assembly Testing:
• ICT (In-Circuit Testing) for component-level functionality checks.
• FCT (Functional Testing) to validate real-world operational performance.

At Omini, we also accommodate specialized testing based on customer requirements, ensuring that every PCB is precisely tailored to your project’s needs.

IQC (Incoming Quality Inspection) for High-Quality PCBs by Omini

At Omini, IQC (Incoming Quality Inspection) is a critical step in ensuring the quality and reliability of printed circuit boards (PCBs). Here’s how we manage this essential process:

1. Comprehensive Material Checks:

• Inspect core materials like CCL (Copper Clad Laminate), copper, dry film, solder mask, and silkscreen for defects or inconsistencies.

2. Defect Prevention and Cost Savings:

• Early detection of material defects prevents production delays, reduces waste, and saves costs for both customers and manufacturers.

3. High Attention to Detail:

• Conduct detailed inspections to minimize defective PCBs, avoiding costly rework and ensuring customer satisfaction.

4. Upholding Quality Standards:

• Verify that all materials meet stringent quality standards, ensuring the final PCBs are reliable and high-performing.

5. Commitment to Customer Success:

• By implementing IQC rigorously, Omini ensures that every PCB is built to the highest standards, delivering exceptional value to our customers.

Omini prioritizes IQC as a foundation for producing premium PCBs, reinforcing our commitment to quality and customer satisfaction.

Comprehensive PCB Inspection Services by Omini

At Omini, we prioritize delivering high-quality PCBs through a robust combination of manual and automated inspection methods. Below are key aspects of our inspection process:

1. Manual Visual Inspection

• Detects defects in base materials, solder masks, and silkscreens undetectable by machines.
• Ensures products meet IPC-A-600 Class 2 or 3 and customer-specific standards.
• Conducted by highly trained personnel with access to precision testing equipment.

2. AOI (Automated Optical Inspection)

• Uses high-resolution cameras to identify defects in copper traces and solder masks.
• Enhances quality control while maintaining production speed and reducing waste.
• Ensures consistent product quality, critical for high-precision PCB designs.

3. FAI (First Article Inspection)

• Verifies initial PCB prototypes meet all customer and industry standards before mass production.
• Prevents costly rework by identifying issues early in manufacturing.
• Guarantees PCBs comply with IPC-A-600 acceptance standards and customer requirements.

4. Micro-Section Inspection

• Examines copper plating, dielectric thickness, and solder mask adherence under a microscope.
• Performed four times during production to ensure proper copper plating thickness and quality.
• Identifies hidden defects, ensuring long-term reliability and durability of PCBs.

Comprehensive PCB Testing by Omini

At Omini, we prioritize delivering high-quality PCBs with rigorous electrical and mechanical testing to ensure performance and reliability. Below are essential testing methods in our PCB production:

1. Electrical Testing for Open/Short Circuits

• Detects defects in PCB traces, preventing performance and safety issues.
• Includes Flying Probe Testing for prototypes and Bed-of-Nails Testing for mass production.
• Ensures precise testing with documented results for future inspections.

2. TDR Impedance Testing

• Critical for high-speed PCB designs like PCI-Express and SATA.
• Identifies impedance discontinuities to maintain signal integrity.
• Provides fast, accurate measurements using Time Domain Reflectometer (TDR) technology.

3. Solderability Testing

• Simulates soldering processes to verify reliable component attachment.
• Detects issues like solder mask peeling or delamination under high temperatures.
• Guarantees smooth SMD and PTH assembly for all PCB designs.

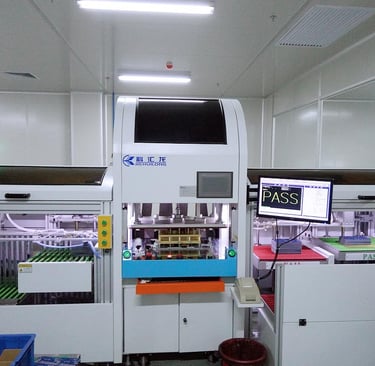

4. Flying Probe vs. Bed-of-Nails Testing

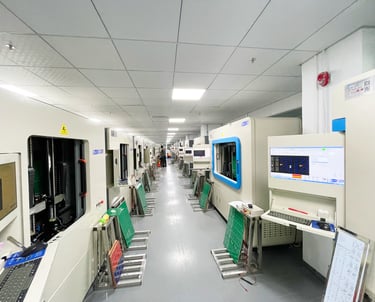

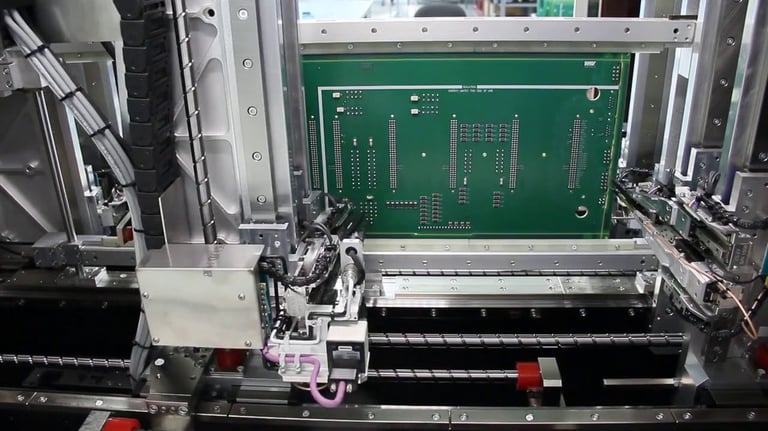

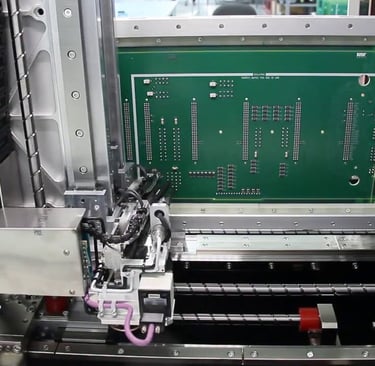

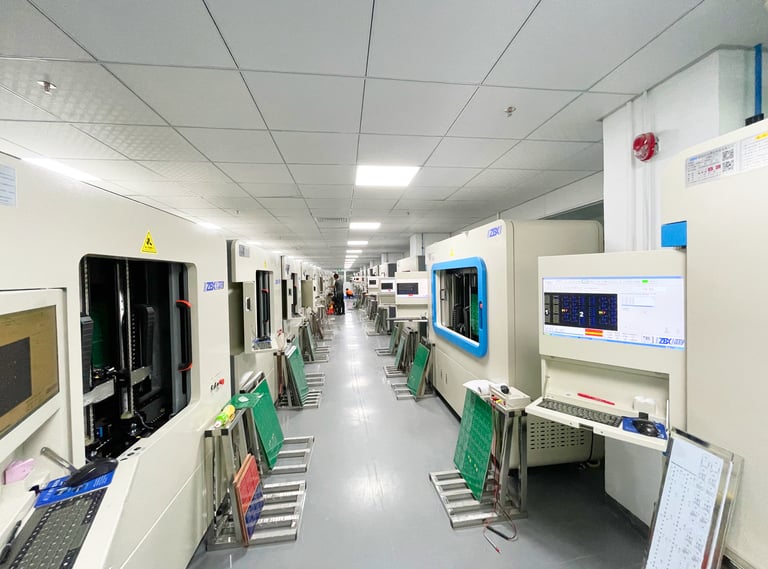

Flying Probe Testing:
• High equipment cost but no fixture required.
• Suitable for prototypes with low test speeds.
• Delivers high reliability for detailed inspections.

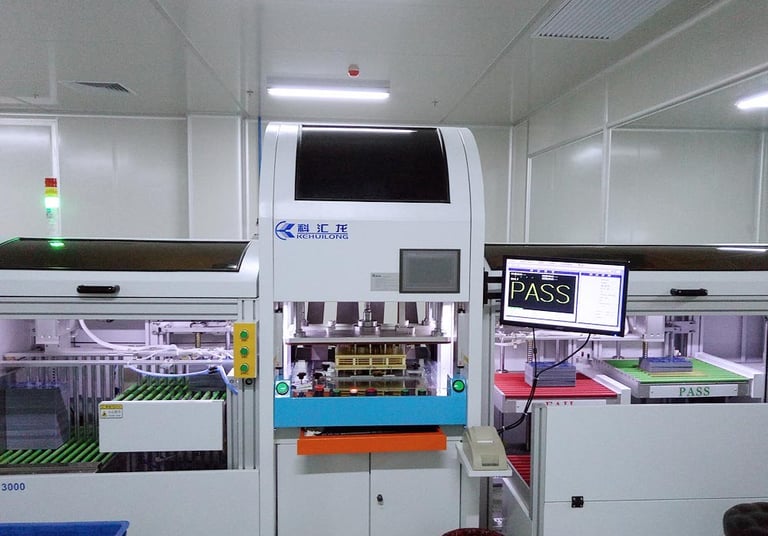

Bed-of-Nails Testing:
• Medium equipment cost but requires a fixture.
• Ideal for mass production with high test speeds.
• Ensures high reliability for large-scale testing.
