Flex PCB

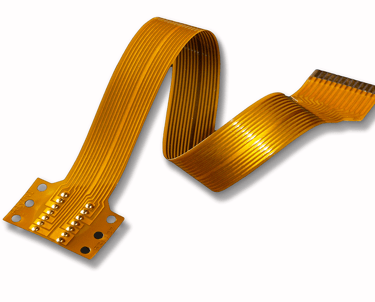

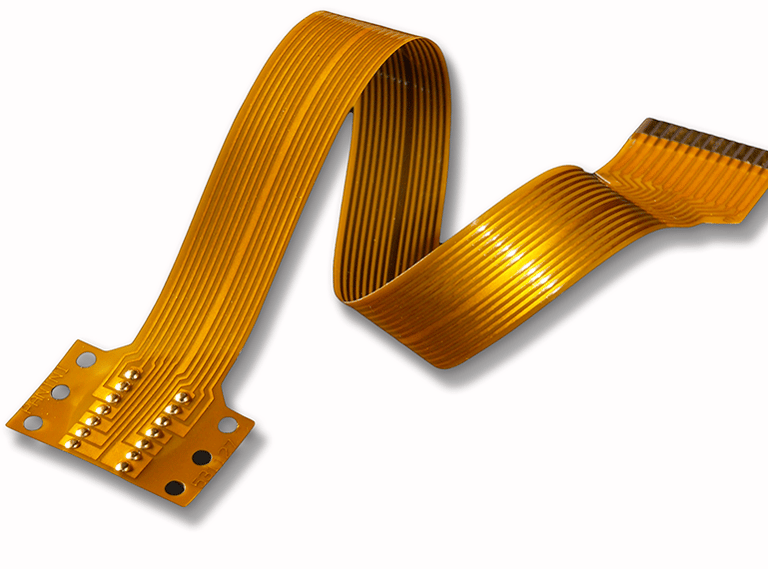

What is a Flex PCB?

Flex PCB boards, or flexible printed circuit boards, combine the functions of traditional rigid PCBs with the added advantage of physical flexibility. While rigid PCB boards have dominated the market for many years, flex PCBs have emerged, offering new possibilities due to their dynamic nature and ability to bend and adapt.

1. Functionality of Flex PCBs
Omini provides high-quality flex PCBs that establish electrical connections among various components in electronic devices, just like rigid PCBs, but with the flexibility to fit into compact or uniquely shaped designs.

2. Flexible Materials
Bare flex PCB boards are made from flexible materials, allowing them to bend and manipulate according to the designer’s needs. This characteristic is particularly valuable for applications such as wearables and other compact electronic devices.

3. Bendability for Innovative Designs
The ability to bend and conform to various shapes makes flexible PCBs ideal for cutting-edge gadgets and wearables. This flexibility opens the door to new design possibilities in industries such as health, fashion, and consumer electronics.

4. Applications in Modern Electronics
Thanks to their flexibility, flex PCBs are used in a variety of modern electronic devices, particularly in wearable technology, automotive applications, and other compact designs where space-saving and dynamic form factors are critical.

Omini leads the way in providing advanced flexible PCBs that empower innovative designs, ensuring both high performance and flexibility for your next project.

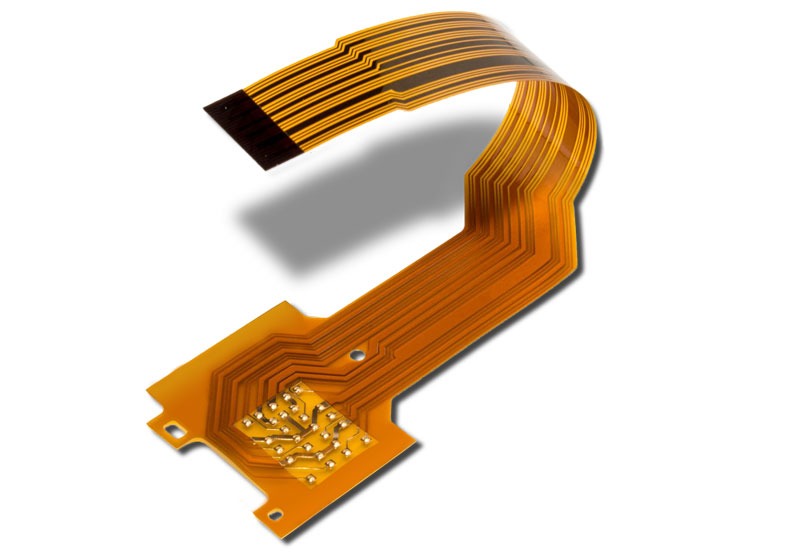

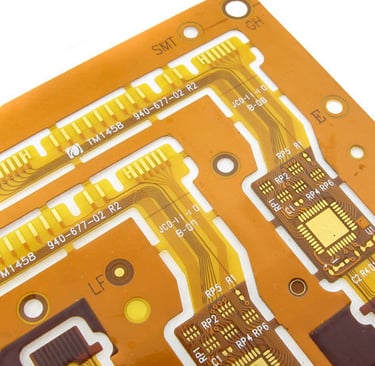

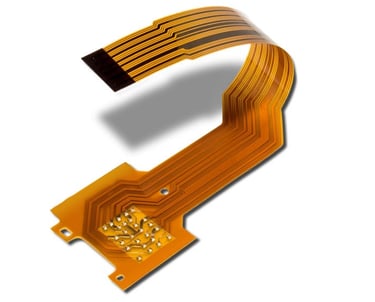

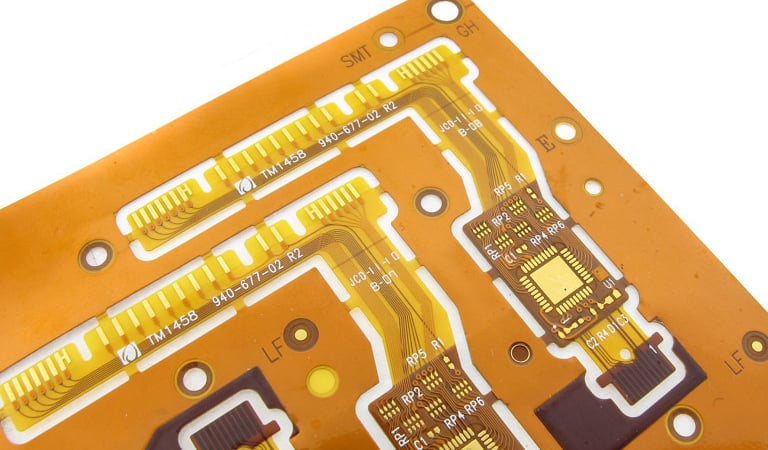

Classifications of Flexible Printed Circuit Boards

Omini offers a wide range of customizable flex PCBs, designed to meet various specifications. With many variations available, flexible circuit boards can generally be classified into a few categories based on their layers and configurations.

1. By Layers: Single-Sided, Double-Sided, and Multi-Layer Flex PCBs
Based on the number of layers, flex PCBs can be categorized into single-sided, double-sided, and multi-layered. Each type offers distinct benefits, and the choice depends on the specific needs of the application.

• Single-Sided Flex PCBs: These have a single conductive layer and are the most common type of flexible PCBs. Omini manufactures these boards with excellent mechanical and electronic properties, making them an affordable option for consumer electronics.
• Double-Sided Flex PCBs: With two copper layers connected via plated through holes, these PCBs offer higher electronic performance and cost-efficiency. They are commonly used in high-volume, high-tech devices such as laptops, cameras, and earphones.
• Multi-Layer Flex PCBs: For advanced devices requiring limited space or continuous movement, Omini provides multi-layer flex PCBs. These boards, often used in robotics, industrial equipment, and medical applications, feature three or more copper layers. However, we generally recommend not exceeding four layers to preserve flexibility.

2. By Characteristics: Standard Flex PCB, Rigid-Flex, and HDI Flexible PCBs
Omini also designs flex PCBs based on their configuration, offering standard flex, rigid-flex PCBs, and HDI flexible PCBs.

• Standard Flex PCBs: These are the most common type of flexible PCBs, typically made from polyimide with one or two conductive layers and stiffeners. Standard flex PCBs are ideal for a variety of applications.
• Rigid-Flex PCBs: Combining the advantages of both rigid and flexible PCBs, rigid-flex PCBs feature flexible areas that connect the rigid parts of the circuit. This reduces costs while enabling the PCB to bend as needed for complex designs.
• HDI Flexible PCBs: High-Density Interconnect (HDI) flexible PCBs are advanced versions of flexible boards that offer superior performance and features. These are ideal for high-performance applications where compactness and efficiency are critical.

Omini specializes in providing high-quality flexible PCBs with various configurations, ensuring the perfect fit for your project’s specific needs.

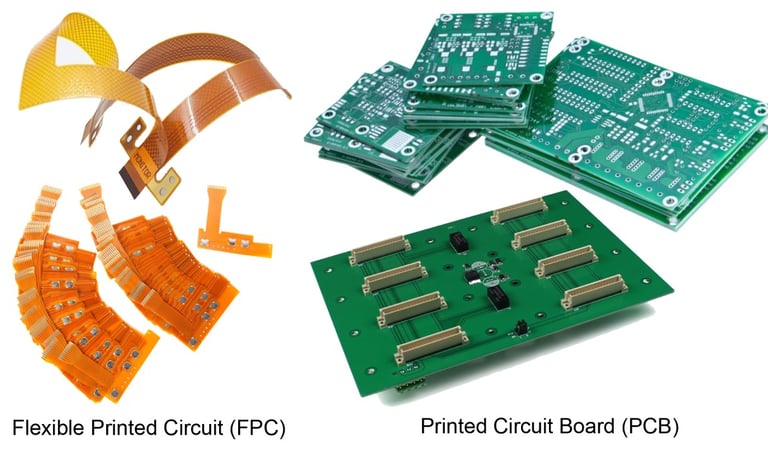

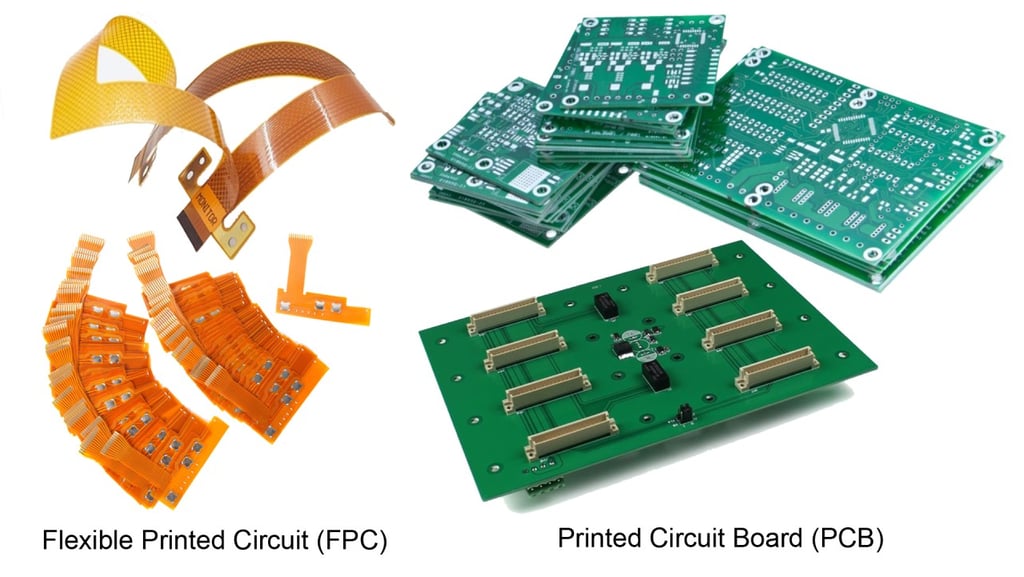

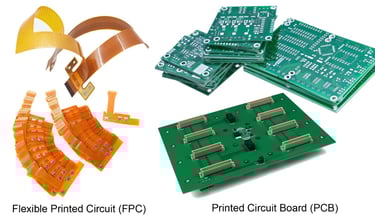

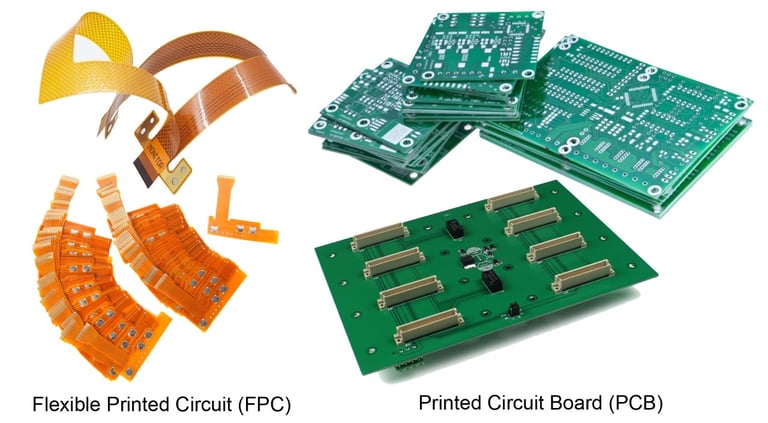

The Differences Between Flex PCB and Rigid PCB

Rigid PCBs are widely used across multiple industries due to their durability, reliability, and high-performance capabilities. Omini offers high-quality rigid PCBs that serve a broad range of applications, including consumer electronics, automotive, medical devices, and more.

Both rigid and flex printed circuit boards (PCBs) serve the same basic function of connecting electronic components. However, Omini specializes in providing both rigid and flexible PCBs, which differ significantly in terms of their physical properties, heat resistance, durability, manufacturing processes, and cost.

Rigid PCB
Rigid PCBs are traditional, non-bendable circuit boards typically made from materials like fiberglass-reinforced epoxy. They offer excellent mechanical strength and provide stability to the device’s internal components.

Flex PCB
In contrast, flexible PCBs are made from materials like polyimide, which offer bendability and flexibility, making them ideal for use in modern, compact electronic devices. They can be bent and shaped to fit into flexible designs, especially for wearable tech or mobile devices.

Key Differences Between Rigid and Flex PCBs:

1. Material
• Rigid PCB: Made from fiberglass-reinforced epoxy.
• Flex PCB: Made from polyimide or similar flexible materials.

2. Flexibility
• Rigid PCB: Rigid and non-bendable.
• Flex PCB: Highly flexible depending on material, thickness, and design.

3. Heat Dissipation
• Rigid PCB: Limited heat dissipation.
• Flex PCB: Superior heat dissipation due to better airflow.

4. Coverlay
• Rigid PCB: Typically uses solder mask.
• Flex PCB: Uses coverlay or flexible mask.

5. Weight
• Rigid PCB: Heavier compared to flex PCBs.
• Flex PCB: Lighter and more compact.

6. Chemical & Heat Resistance
• Rigid PCB: Lower resistance to extreme temperatures and chemicals.
• Flex PCB: Superior resistance to extreme temperatures and exposure to chemicals.

7. Reliability
• Rigid PCB: Less reliable due to more complex connections.
• Flex PCB: More reliable with fewer wiring errors.

8. Durability
• Rigid PCB: Strong but less resistant to vibrations and harsh conditions.
• Flex PCB: Highly durable and resistant to vibrations and harsh conditions.

9. Cost
• Rigid PCB: Lower manufacturing costs but higher assembly costs.
• Flex PCB: Higher manufacturing costs but lower assembly costs.

Omini excels at both rigid and flexible PCB solutions, offering a wide range of customizations to meet the specific needs of industries like automotive, medical, consumer electronics, and more. Whether you need durable rigid PCBs for robust applications or highly flexible flex PCBs for innovative designs, Omini has the expertise to deliver high-quality products tailored to your needs.

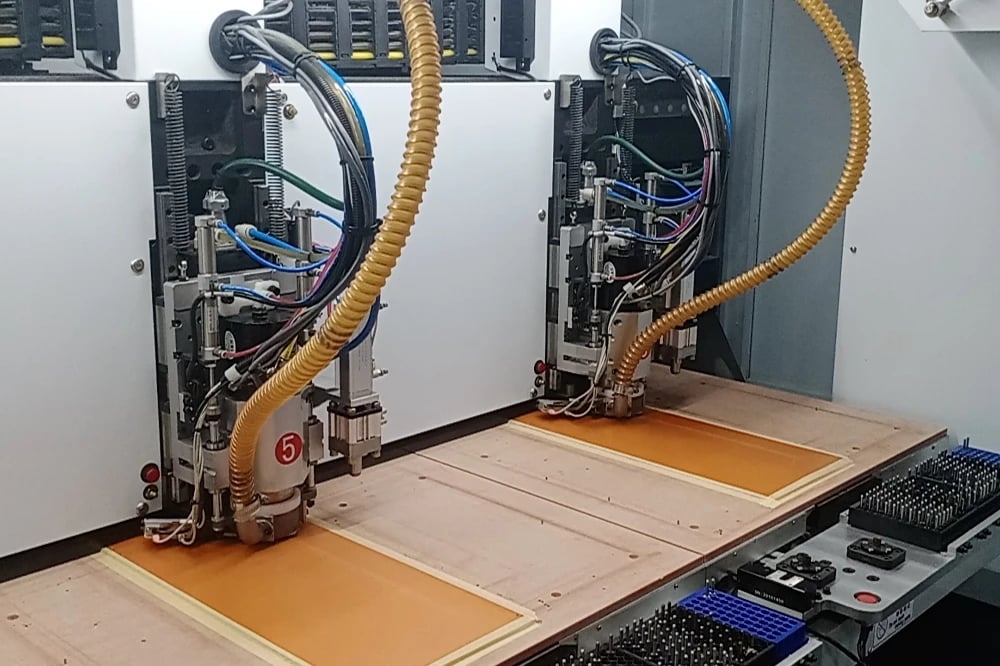

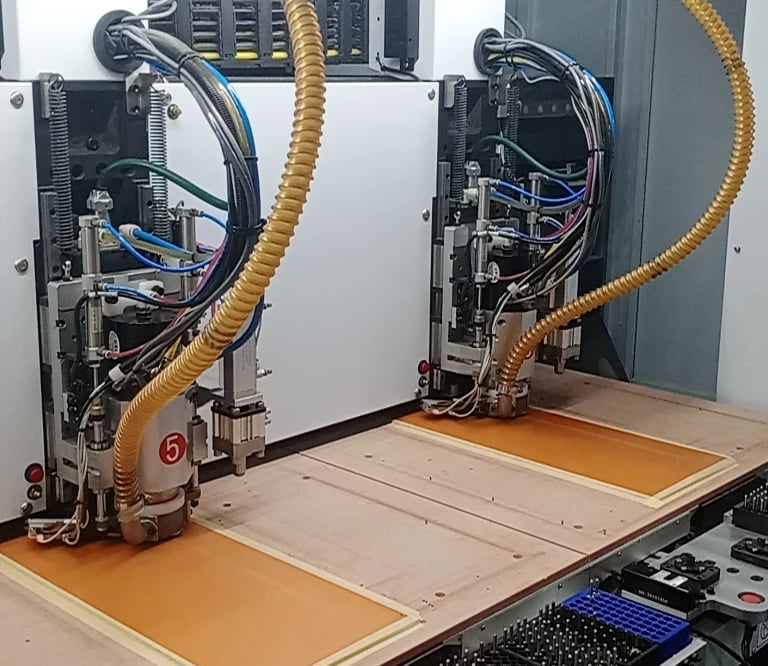

What are the Benefits of Flexible Circuit Boards?

Flexible printed circuit boards (PCBs) are increasingly popular across various industries due to their unique features and numerous advantages. Omini offers high-quality flexible PCB solutions tailored to meet your specific requirements. Below are the key benefits of flexible PCBs:

1. Simplified Assembly Process: The use of flexible PCBs minimizes connection points, streamlining the overall assembly process and reducing potential errors.

2. Superior Packaging Density: Flexible circuit boards enable reduced package sizes, contributing to more compact designs in modern electronic devices.

3. Reduced Risk of Defects: Flexible PCBs significantly lower the chances of defects such as faulty solder joints or wiring errors, ensuring improved reliability.

4. Improved Reliability: Due to their design, flexible PCBs offer superior durability and are less prone to failure compared to rigid PCBs, especially under harsh conditions.

5. Increased Design Flexibility: Flexible PCBs offer greater design freedom, allowing engineers to create more intricate and compact layouts.

6. Resistance to Vibrations and Harsh Environments: Flexible PCBs are highly resistant to vibrations, chemicals, and extreme environmental conditions, making them ideal for challenging applications.

7. Enhanced Heat Dissipation: The flexible nature of these boards allows for better airflow and heat dissipation, which is essential in high-performance applications.

8. Lower Assembly Costs: The elimination of complex wiring harnesses and simplified testing processes reduce overall assembly costs.

9. Faster Assembly Time: Flexible PCBs reduce assembly time, which further lowers production costs and enhances efficiency.

10. High-Density Configurations: Flexible PCBs support high-density configurations, enabling the integration of more components in smaller spaces without compromising performance.

Omini specializes in offering flexible PCB solutions that enhance the performance, durability, and cost-effectiveness of your electronic products.

Applications of Flex Printed Circuit Boards

Flexible circuit boards (Flex PCBs) offer dynamic flexibility, enabling devices to be manipulated according to the manufacturer’s specifications. This unique characteristic is essential in modern devices such as health trackers, medical instruments, fitness wearables, smartwatches, cameras, smartphones, tablets, and laptops. The durability, reliability, and superior performance of flexible printed circuit boards make them the preferred choice for components in advanced systems, including unmanned vehicles and aircraft.

Industries that demand Flex PCBs include, but are not limited to:

1. Consumer Electronics – Used in various portable gadgets and devices.

2. Wearables – Ideal for compact and flexible designs in fitness trackers and smartwatches.

3. Automobile Industry – Applications include airbag systems and other automotive electronics.

4. Computers and Laptops – Flex PCBs help streamline components in portable computing devices.

5. Medical Instruments – Used in devices like ultrasound probes, flexible PCBs support compact and durable medical equipment.

6. Telecommunications – Essential for flexible, high-performance designs in mobile and communication equipment.

7. Aerospace Industry – Reliable for use in aerospace components and avionics systems.

8. Satellites – Flex PCBs are crucial for compact, efficient, and lightweight designs in satellite systems.

Omini provides high-quality flex PCB solutions that meet the needs of these industries with reliable, efficient, and innovative designs. Whether for medical, automotive, or consumer electronics, Omini ensures your project is supported with top-tier flexible circuit boards.

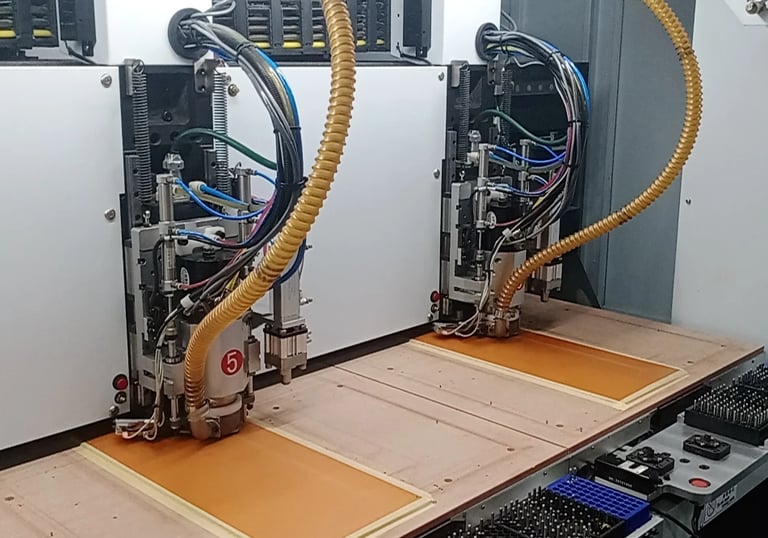

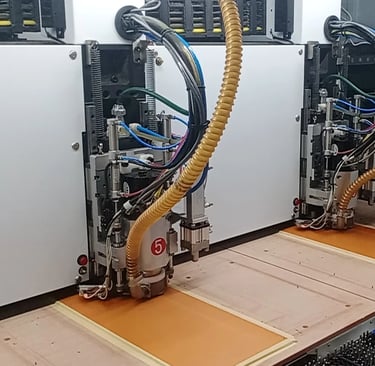

How Does Omini Fabricate the Right Flex PCB for You?

For tailored, high-quality flex PCB solutions, Omini offers expert design, competitive pricing, and rapid turnaround. Our services ensure precision, reliability, and compliance with IPC standards, making us your trusted PCB partner.

1. Finding the Right Bend Radius and Bend Ratio for Your Flex PCB
While all flexible circuit boards (Flex PCBs) offer dynamic flexibility, their degree of flexibility and strength can vary. At Omini, we ensure that each Flex PCB is tailored to meet specific bending requirements. Some designs require frequent bending, while others only need occasional, larger bends. Our team evaluates the right bend radius and bend ratio to ensure maximum performance and longevity of your PCB.

2. Identifying the Right Materials and Components for Your Flex PCB
The material selection for a flexible printed circuit board significantly influences its performance, including dielectric constant, thermal expansion, glass transition temperature, and moisture absorption. At Omini, we carefully choose materials based on your specific application needs to guarantee optimal performance, reliability, and durability.

3. Designing Flex PCBs with Consideration of All Key Design Factors
Flexible circuit boards have unique design requirements compared to traditional rigid PCBs. Omini ensures that the routing and layout are optimized to deliver the best results. We also carefully select the most suitable stack-up for your design, ensuring maximum efficiency and reliability. For those searching for expert “flex PCB manufacturers,” Omini is the right choice.

4. Adhering to IPC Design, Manufacturing, and Testing Standards
Compliance with IPC standards is crucial in PCB design, manufacturing, and testing. At Omini, we ensure that our Flex PCB services meet all industry regulations and safety standards. Whether you need design or testing services, we strictly follow the appropriate IPC guidelines, guaranteeing quality and performance.

5. Offering Quick Quotes, Competitive Pricing, and Accurate Turn-Times
At Omini, we believe in transparency and clear communication with our clients. We offer quick quotes with competitive pricing and realistic delivery timelines. You can rely on us for precise turn-time projections and fair pricing, ensuring the best value in the PCB market.
