What is Flex PCB Assembly?

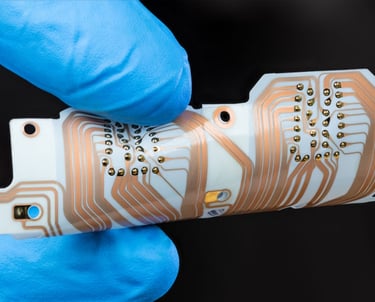

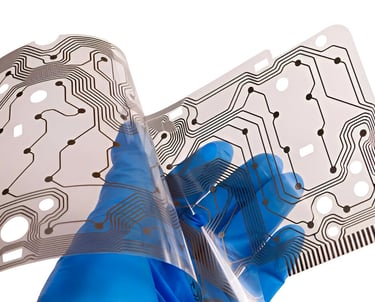

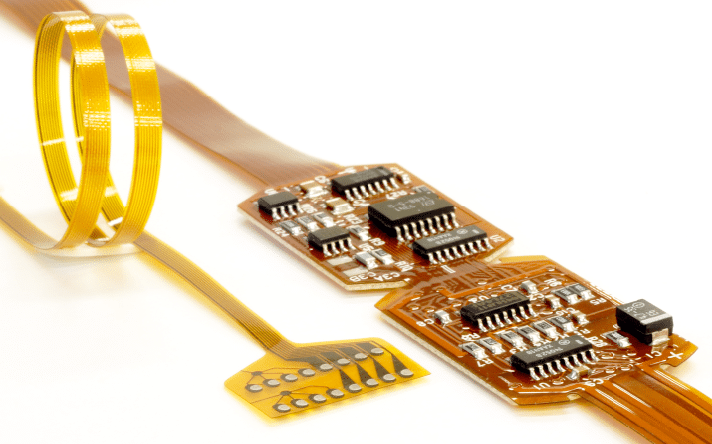

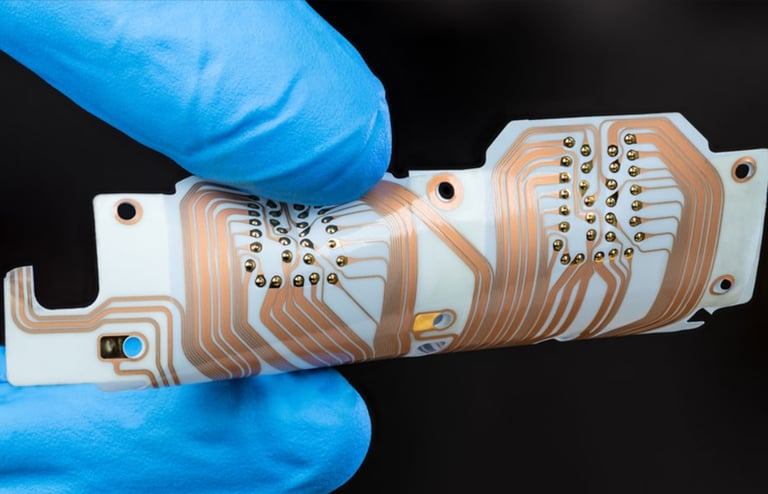

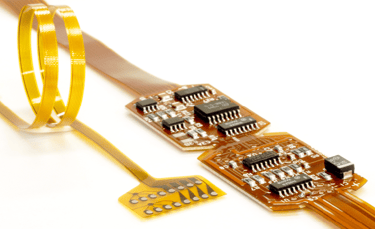

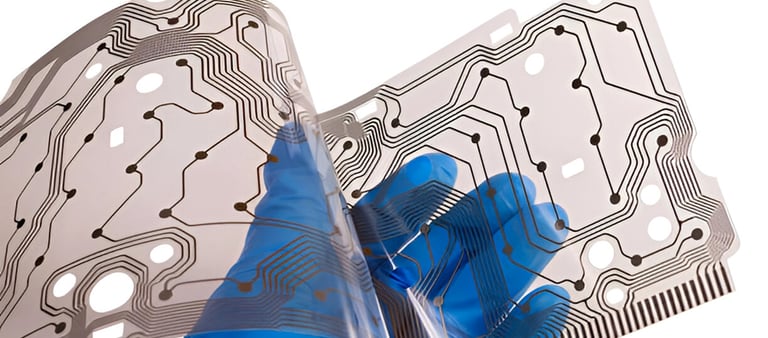

Omini provides high-quality flex PCB assembly services, focusing on the assembly of flexible PCBs with a flexible substrate that supports and connects electronic components. The substrate, typically made from polyimide (PI) film, is combined with copper and patterned through an etching process. The resulting flex PCB is a thin, translucent material that can easily bend and conform to various shapes. These PCBs can range from single to multi-layered designs, incorporating buried or blind vias. A cover lay is applied through thermal pressing, providing protection for copper tracks and signals.

The demand for flex PCBs has surged with the rise of technologies like Artificial Intelligence (AI), vehicle electrification, the Internet of Things (IoT), and automation. As industries evolve, new electronic requirements demand more complex and versatile solutions. While rigid FR4 boards have been widely used in automotive, aerospace, and medical sectors, many applications now require flexible substrates. These lightweight, adaptable materials are ideal for compact designs and devices that need to fit into small enclosures.

At Omini, we specialize in providing advanced flex PCB assembly solutions, meeting the growing needs of industries requiring flexible, durable, and high-performance circuit boards.

What are the Advantages of Flex PCB Assembly?

Omini specializes in flex PCB assembly, which is increasingly favored for applications with dimensional constraints. Flex PCBs offer several key advantages over rigid PCBs, making them ideal for a variety of electronic devices:

• Flexibility: The standout feature of flex PCBs is their flexibility. Unlike rigid PCBs, they can be easily bent, twisted, or conformed to specific shapes, making them perfect for space-constrained systems where the circuit needs to follow complex contours.

• Lightweight: Flex PCBs are significantly lighter than rigid PCBs. Their lightweight nature makes them ideal for portable devices that require easy installation and a sleek, compact design.

• Durability in Harsh Environments: Made from polyimide, flex PCBs can withstand high temperatures and resist chemical corrosion. This makes them well-suited for applications in extreme environments such as aerospace or high-temperature industries.

• Compact Design: The thin profile and bendability of flex PCBs enable a smaller overall form factor. They can be integrated into devices with compact enclosures, such as smartphones, wearables, laptops, and tablets.

Omini offers reliable, high-quality flex PCB assembly services, ensuring that your products benefit from these advantages for optimal performance in today’s advanced electronic applications.

What are the Different Applications of Flex PCB Assembly?

Omini offers high-quality flex PCB assembly services, catering to a variety of industries where flexibility, compactness, and durability are critical. Here are some key applications of flex PCB assemblies:

1. Automotive Electronics: With the rise of Advanced Driver Assistance Systems (ADAS), automotive electronics now include sensors, cameras, and connectivity modules, many of which rely on flex PCBs. These flexible circuits allow for compact, easily integrated assemblies that can be discreetly placed within a vehicle’s interior or exterior.

2. Medical Devices: The medical industry benefits from flex PCB assemblies in devices like hearing aids, pacemakers, and medical monitoring equipment. High-Density Interconnect (HDI) technology enables smaller, more efficient circuits, contributing to the miniaturization and enhanced functionality of medical devices.

3. Aerospace: Flex PCBs are extensively used in aerospace applications due to their ability to withstand harsh conditions such as extreme temperatures, vibrations, and shocks. They are ideal for critical systems in aircraft that require high reliability and compact design in demanding environments.

Omini provides flexible and reliable flex PCB assembly solutions that meet the evolving demands of these industries, ensuring high performance and durability for your applications.

What are the Flex PCB Assembly Processes?

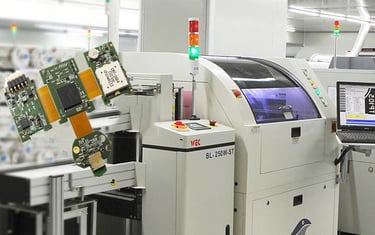

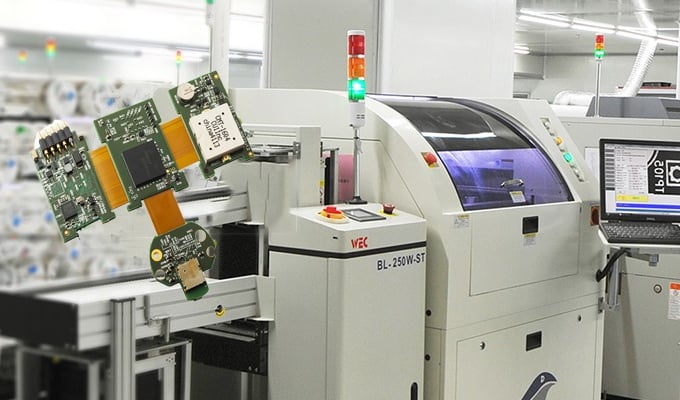

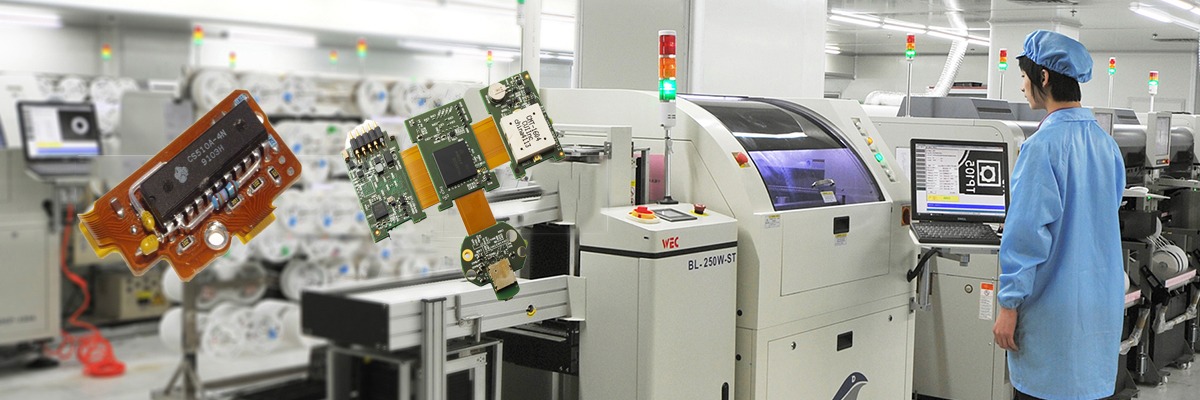

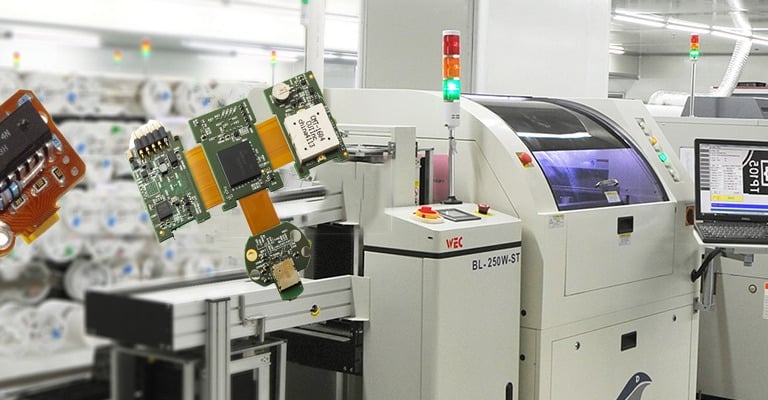

Omini offers high-precision flex PCB assembly services, utilizing advanced processes to ensure top-quality results. While the assembly steps are similar to rigid PCB assembly, special care is needed to handle the unique challenges of flexible substrates. Here are the key processes involved in flex PCB assembly:

1. Solder Paste Printing
Flex PCBs, made from hygroscopic polyimide material, must first be baked at around 120°C to remove moisture before solder paste printing. A stainless-steel stencil and squeegee are used to apply solder paste onto the flexible substrate. A specialized jig is required to keep the flex PCB flat throughout the process, as even slight warping can cause defects.

2. Pick-and-Place
Components are picked and placed on the flex PCB using a component placement machine. The machine incorporates an intelligent vision system and software to ensure precise component positioning. Efficient pick-and-place operations are crucial for optimizing throughput in the surface-mount technology (SMT) line.

3. Solder Reflow
To form reliable joints, the solder paste must be heated to its melting point during the reflow process. The solder paste’s technical datasheet provides the recommended curing profile, which includes the necessary temperature and time. Prototyping simulations are often conducted to determine the ideal temperature distribution and to ensure that the solder joints meet quality standards.

4. Automated Optical Inspection (AOI)
After component placement, boards are inspected using AOI machines to verify correct component placement, orientation, and to detect potential defects such as solder bridges, missing parts, or contaminants. For flexible PCBs, challenges include non-uniform lighting due to the reflective polyimide surface, which requires careful calibration of the AOI equipment.

5. PCBA Testing
To identify hidden defects that are not visible to the naked eye, flexible PCBs undergo rigorous electrical testing. PCBA testing includes two main methods: In-Circuit Testing (ICT), which uses fixed probes to test contact points, and Flying Probe Testing, which employs movable probes for efficient testing of the contact sites.

Omini ensures each step of the flex PCB assembly process is executed with precision to meet industry standards, delivering high-quality, reliable PCBs for your applications.

Why Choose Omini?

If you’re looking for a reliable flex PCB manufacturer and assembly supplier, consider working with Omini. As a leader in PCB manufacturing, Omini offers high-quality, cost-effective solutions tailored to meet your business needs.
We are committed to providing the highest standards of flex PCB assembly, with a focus on quality, efficiency, and customer satisfaction. Here are the key reasons why Omini stands out from the competition:

1. Competitive Pricing: We offer highly competitive prices without compromising on quality. Whether you need turnkey or consigned services, we provide flexible options to match your requirements.

2. Fast Delivery: We understand the importance of timely delivery. Omini ensures fast lead times and has contingency plans in place to mitigate any supply chain disruptions, ensuring your projects are delivered on schedule.

3. Exceptional Customer Service: At Omini, we value communication. Our dedicated teams and clear escalation channels ensure we respond to your queries promptly and efficiently, keeping you informed throughout the process.

4. High-Quality Standards: Quality is our top priority. We maintain strict quality control on our production floors and ensure that all processes follow well-documented procedures, backed by a strong quality management system to deliver consistently reliable products.

Choose Omini for your flex PCB needs and experience the difference in quality, service, and reliability.
