Omini PCB Manufacturing Capabilities

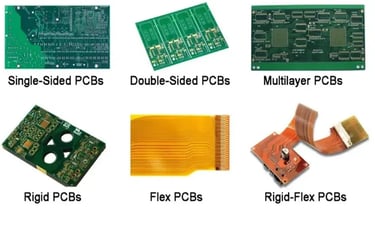

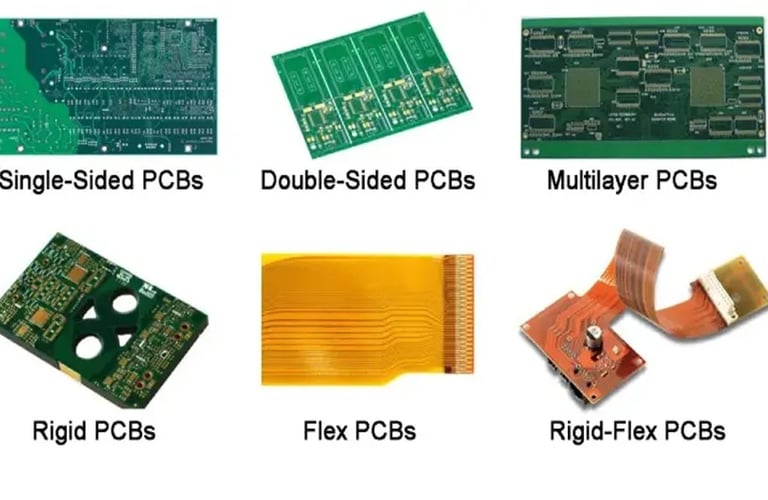

PCB Types Offered by Omini

At Omini, we provide a comprehensive range of high-quality PCB solutions tailored to meet the needs of various industries. Our expert services cover the following PCB types:

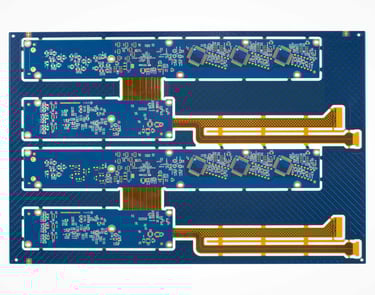

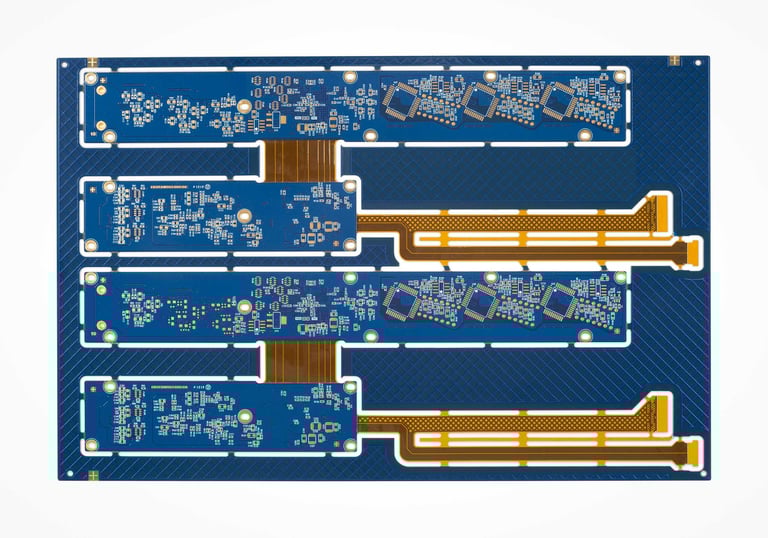

1. Rigid, Flex, and Rigid-Flex PCBs

2. Blind / Buried Vias, Micro Vias, Any-Layer HDI

3. Via-in-Pad, Conductive & Non-Conductive Vias

4. Aluminum-Based and Copper-Based PCBs

5. Microwave & RF PCBs

6. Impedance-Controlled PCBs

7. Backplane and Back Drilled PCBs

8. Heavy Copper (20 oz) PCBs

9. IC Substrate PCBs

Omini specializes in precision PCB design, manufacturing, and assembly, offering the most advanced technologies to ensure your product meets the highest standards. Whether you’re looking for flexibility, durability, or specialized performance, Omini delivers tailored solutions for every project.

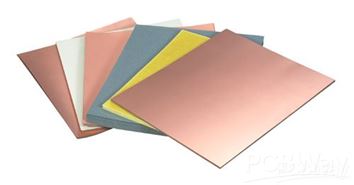

Types of Materials Used by Omini

At Omini, we provide a wide variety of high-performance materials for PCB design and manufacturing. Our material options include:

1. FR4 Materials: Standard FR4, High TG FR4, Halogen-Free FR4, High-Speed FR4

2. Flexible Materials: Polyimide (PI), Polyester (PET), Dupont Pyralux AP/TK Series, Panasonic “FELIOS” Series

3. Metal-Based Materials: Aluminum-Based, Copper-Based, Special Alloys (Laird 1KA04, 1KA06, Bergquist MP06503, HT0450)

4. Microwave & RF Materials: Rogers RO4350, RO4003, RO3003, RT/duroid, Arlon 85N, 33N, Nelco N4000-13, Panasonic Megtron 4, Megtron 6, Taconic RF35, TUC TU872, EMC EM827

Omini is committed to using only the highest quality materials to ensure the durability and performance of every PCB solution we provide.

Tests & Inspections at Omini

To maintain the highest standards of quality, Omini conducts rigorous testing and inspection processes for every PCB project. Our testing services include:

1. DFM (Design For Manufacture) before production

2. AOI (Automated Optical Inspection)

3. Electrical Testing (E-test)

4. IPC-A-610 Class 2 and Class 3/3A Compliance

5. Visual Defects Inspection

6. Microsection Check

7. Solderability Testing

8. Impedance Testing

At Omini, we ensure that every PCB we produce meets stringent quality criteria, delivering reliable, high-performance results for our clients.

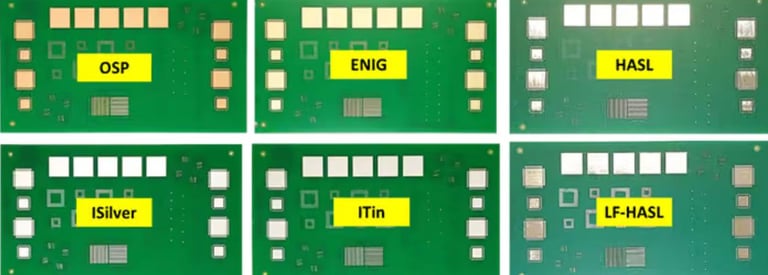

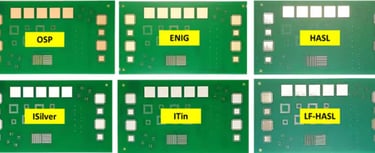

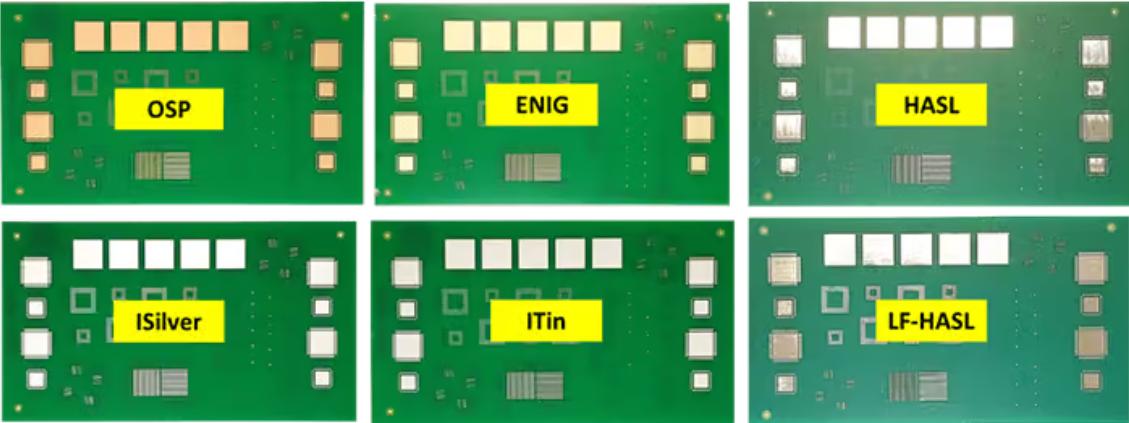

Surface Finishes Offered by Omini

At Omini, we provide a wide selection of surface finishes to meet the specific needs of your PCB project. Our surface finish options include:

1. Immersion Gold (ENIG)

2. Immersion Silver

3. Immersion Tin

4. ENEPIG

5. Pb-Free HAL (Lead-Free Hot Air Leveling)

6. OSP (Organic Solderability Preservative)

7. Hard Gold Plating

8. Soft Gold

9. Selective Finishes

Omini uses industry-leading surface finishing techniques to ensure optimal performance, durability, and reliability for your PCBs. Whether you need enhanced solderability or superior wear resistance, Omini offers the perfect solution.

Turnaround Times at Omini

At Omini, we understand the importance of timely delivery for your projects. We offer flexible turnaround times to accommodate your production schedule:

1. Quick Turnaround: 1-5 days

2. Prototype and Small Series Production: 1-2 weeks

3. Mass Production: 2-4 weeks

No matter the complexity of your PCB requirements, Omini delivers high-quality results within your timeline.

Other PCB Specifications from Omini

At Omini, we offer a wide range of customizable PCB options to meet diverse project requirements. Our advanced capabilities include:

1. Layer Count: 1-40 layers, up to 100 layers for special applications

2. Board Thickness: 0.13mm to 7.0mm

3. Maximum Board Dimensions: 21×59 inches

4. Maximum Aspect Ratio: 16:1 (for drills ≥ 0.2mm)

5. Minimum Hole Size: 0.2mm (0.1mm for laser drill)

6. Minimum Trace Width/Space: 2mil (0.05mm)

7. Solder Mask Colors: Green, Black, Blue, Red, White, Grey, Purple

8. Silkscreen Colors: White, Black, Yellow, Green

9. Outline Methods: Routing, V-cut, and Punching by Mold

Omini specializes in delivering highly customizable and precision-engineered PCBs for a variety of industries, ensuring the best performance and quality for every project.
