What is Metal Core PCB?

Metal Core PCBs are specialized circuit boards that use a metal substrate as the base material, unlike traditional FR4 PCBs commonly used in general-purpose applications. Omini provides a range of Metal Core PCBs, typically utilizing materials such as aluminum, copper, or other alloys as the core. In recent years, special alloys have been introduced to make Metal Core PCBs lighter, more cost-effective, and less prone to corrosion.

These unique PCBs are particularly deployed in applications where heat dissipation is critical, while the circuit design doesn’t require complex multilayer stack-ups. The primary goal is to efficiently manage and dissipate heat from the board, ensuring that it remains within safe operational limits.

Key Features of Omini Metal Core PCBs:
1. Metal Substrate for Enhanced Heat Dissipation: Omini’s Metal Core PCBs use materials such as aluminum or copper to provide superior heat dissipation, making them ideal for high-power applications like LED lighting and automotive electronics.

2. Cost-Effective and Lightweight Options: Special alloys are used in Omini’s Metal Core PCBs to reduce weight and cost, without compromising on performance or reliability.

3. Ideal for Low-Complexity Circuitry: Metal Core PCBs are suited for designs where the complexity of the circuit does not require multilayer stack-ups, yet heat management is a significant concern.

4. Durable and Corrosion-Resistant: Omini ensures that its Metal Core PCBs are resistant to corrosion, providing a longer lifespan and better overall performance, especially in harsh environments.

If you are looking for high-performance Metal Core PCBs, Omini offers tailored solutions to meet your heat dissipation and performance needs. Contact us today to discuss your requirements!

Commonly Used Cores in Metal Core PCB

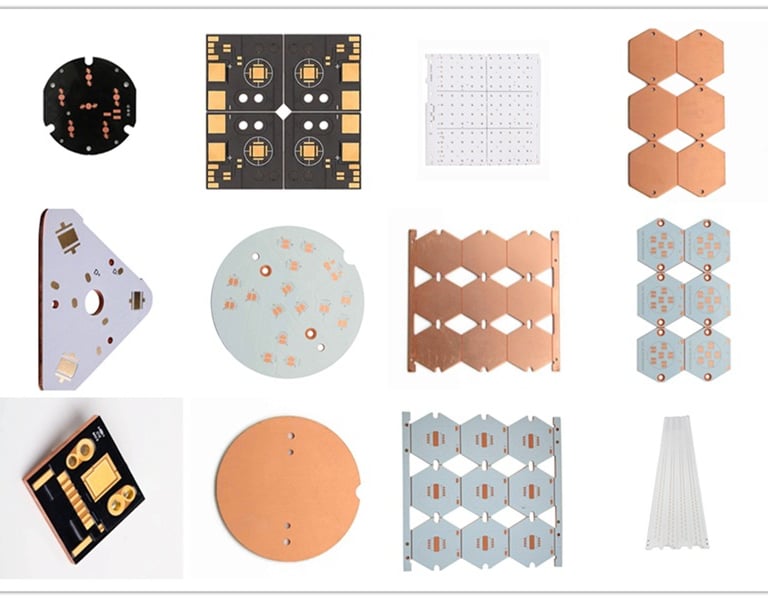

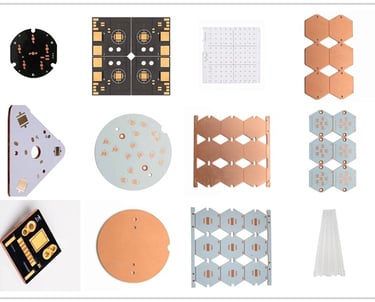

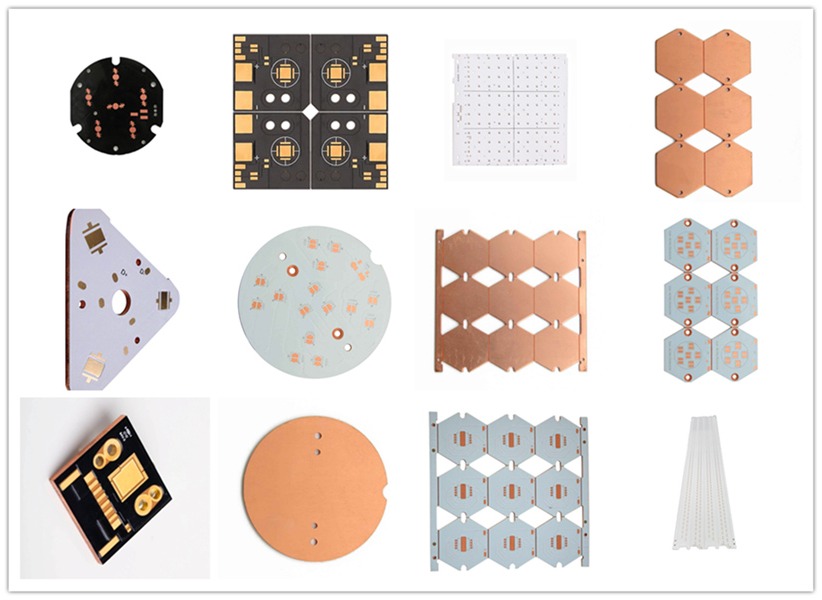

Omini offers a range of high-performance Metal Core PCBs, using various core materials to meet different application needs. The most commonly used cores in Metal Core PCBs are aluminum and copper, each with specific advantages based on thermal management, weight, cost, and mechanical strength.

Key Core Materials Used in Omini Metal Core PCBs:

1. Copper: Copper is used as the core material in Metal Core PCBs when extremely high thermal conductivity is required, such as in thermoelectric separation applications. It is also commonly found in multilayer, double-sided, and single-layer Metal Core PCBs. Copper offers higher mechanical strength than aluminum, making it ideal for applications requiring durability. However, its higher weight and cost can make it more challenging to manufacture. Due to these factors, copper core manufacturers are relatively rare.

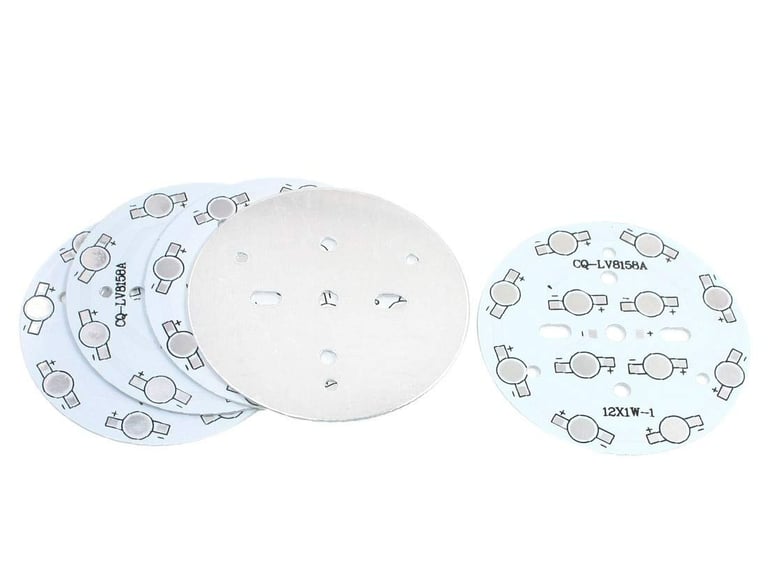

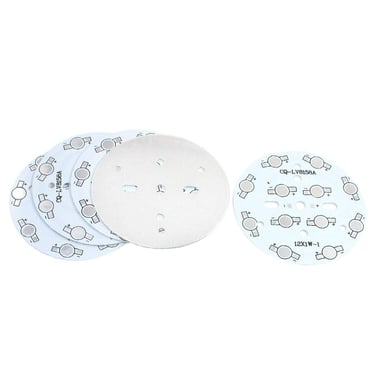

2. Aluminum: Aluminum is the most widely used material for Metal Core PCBs. It offers good thermal conductivity (though not as high as copper), and it is lightweight, cost-effective, and easy to manufacture. Omini uses aluminum cores for a wide range of applications, especially in industries such as LED lighting where heat dissipation is critical. Additionally, aluminum alloys are also used for improved mechanical strength, though they tend to be slightly heavier and more expensive than standard aluminum.

Omini specializes in providing tailored Metal Core PCB solutions with the right core material to suit your specific needs. Whether you require high thermal conductivity or cost-effective, lightweight solutions, Omini ensures optimal performance and reliability for your applications. Contact us today to discuss your requirements!

Four Main Types of Metal Core PCBs

Omini specializes in providing a variety of Metal Core PCB options to meet the specific needs of different industries. Metal Core PCBs are distinguished by their unique stackup structure, which includes a metal core (usually aluminum or copper) combined with a dielectric layer and a copper circuit layer. Unlike other types of PCBs, the exposed metal core in these boards helps efficiently dissipate heat. The thickness of the metal core typically ranges from 1 mm to 1.6 mm, depending on specific requirements.

While most Metal Core PCBs feature a single copper layer, there are also multilayer options available, though manufacturers for these are relatively rare. Here are the four main types of Metal Core PCBs provided by Omini:

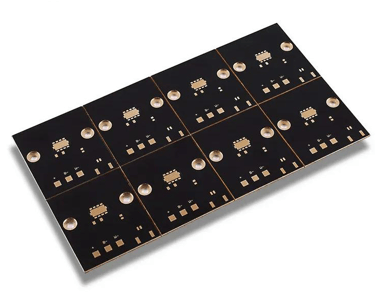

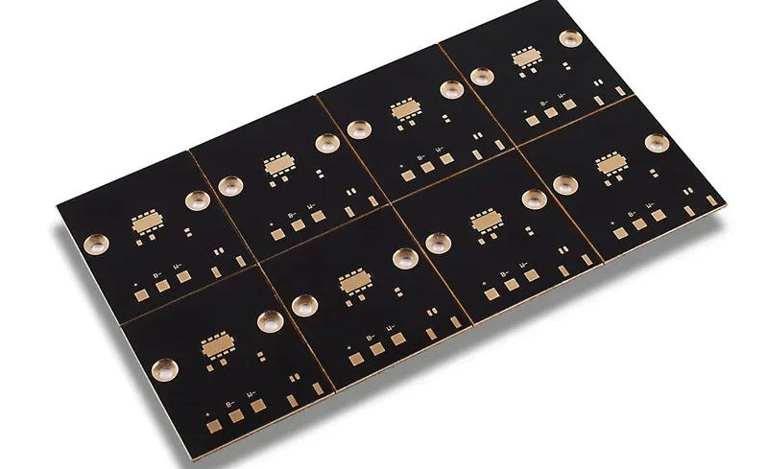

1. Single Layer Metal Core PCB: Copper – Dielectric – Core
The most common stackup, this type of Metal Core PCB consists of a single routing layer, making it the simplest and most cost-effective option. The metal core is isolated to a signal layer by the dielectric material, providing efficient thermal dissipation.

• Applications: Industrial relays, simple LED lighting solutions.
• Advantages: Cost-effective, easy to fabricate, ideal for basic applications requiring thermal management.

2. Thermoelectric Separation Metal Core PCB

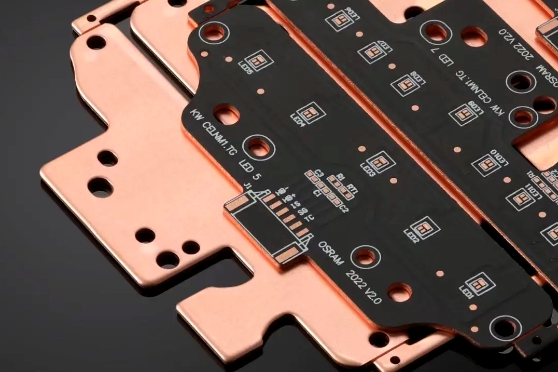

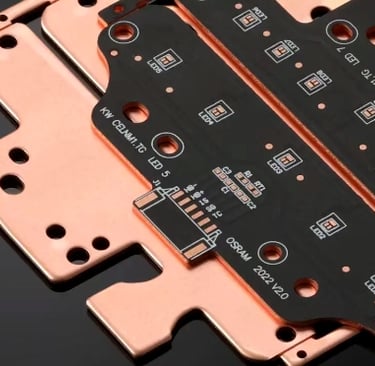

This stackup is similar to a single-layer Metal Core PCB, but with a copper core. The core is designed to touch the body of the component without coming into contact with the component’s pads, which are insulated by the dielectric layer. This ensures high-grade thermal efficiency and electric isolation.

• Applications: High-power LEDs, specialized thermal management needs.
• Advantages: Superior thermal conductivity, ideal for high-power applications.
• Disadvantages: Expensive to fabricate, not suitable for simple LED solutions.

3. Double Layer Metal Core PCB
Type 1: Copper – Dielectric – Copper – Dielectric – Core
This type of Metal Core PCB includes an additional copper layer for routing, providing more compact and dense designs. It allows for vias to be used, enabling a more efficient layout.

• Applications: Power modules, audio equipment (e.g., amplifiers).
• Advantages: More routing flexibility, enables compact designs.

Type 2: Copper – Dielectric – Core – Dielectric – Copper
This version of the double-layer Metal Core PCB features exposed copper on both sides, allowing components to be placed on both sides of the PCB. This stackup reduces thermal dissipation while offering the flexibility of component placement.

• Applications: Legacy components such as hard disk drives, UPS systems.
• Advantages: Allows for component placement on both sides, good for high-density applications.
• Disadvantages: More difficult to fabricate compared to FR4 counterparts.

4. Multilayer Metal Core PCB
Multilayer Metal Core PCBs use multiple copper and dielectric layers between the surface copper and the metal core. However, due to the increased spacing and dielectric insulation, thermal management can degrade with more than 4 layers. Most Omini customers prefer sticking to 2 to 4 layers for optimal performance. Blind and buried vias can be incorporated into multilayer designs, though these increase the complexity and cost.

• Applications: High-end power modules, advanced thermal management solutions.
• Advantages: High-density designs with advanced features such as blind and buried vias.
• Disadvantages: Expensive, reduced thermal efficiency with increased layers.

At Omini, we offer a wide range of Metal Core PCB solutions designed to meet the specific thermal and performance requirements of your project. Whether you need a simple single-layer PCB for heat dissipation or a complex multilayer design with advanced routing, we have the expertise and resources to deliver high-quality, cost-effective solutions. Contact us today to learn more about how our Metal Core PCBs can support your next project!

Advantages of Metal Core PCBs

Omini offers a wide range of Metal Core PCBs that provide distinct advantages over traditional FR4-based PCBs. Metal Core PCBs, especially those with copper or aluminum cores, are particularly beneficial in applications where heat management, durability, and reduced weight are critical. Some of the key benefits of Metal Core PCBs include:

1. Reduced Weight of the PCB
Metal Core PCBs, especially those using aluminum as the core material, are much lighter than traditional FR4-based PCBs of similar dimensions. Aluminum’s lightweight nature helps reduce the overall weight of the PCB, making it an ideal choice for applications where weight is a concern.

• Comparison: Lighter than similar-sized FR4 PCBs.
• Advantages: Ideal for lightweight, compact designs.

2. Enhanced Heat Management
One of the most significant advantages of Metal Core PCBs, particularly those with thermoelectric separation and copper cores, is their exceptional thermal management. The metal core effectively spreads heat across the board and facilitates faster dissipation, reducing the need for additional thermal management solutions like thermal pastes or heat sinks.

• Key Benefit: Superior heat dissipation and thermal conductivity.
• Applications: High-power components, LED lighting, power modules.

3. Better Durability
The inclusion of a metal core enhances the overall ruggedness and durability of the PCB. The metal core adds mechanical strength, making these PCBs better suited for harsh environments and applications that require long-lasting, reliable performance.

• Benefit: Increased mechanical strength and reliability.
• Ideal For: Harsh industrial environments, automotive electronics.

4. Recyclability
The metal core of Metal Core PCBs, such as aluminum, can be recycled, making these PCBs more environmentally friendly compared to traditional PCB materials. Even at the end of their lifecycle, Metal Core PCBs do not contribute to soil toxicity, offering a more sustainable option for manufacturers.

• Environmental Impact: Recyclable and eco-friendly.
• Sustainability: Reduces environmental impact at disposal.

At Omini, we are committed to delivering high-quality Metal Core PCBs that provide exceptional performance, heat management, and environmental benefits. Whether you’re designing for power modules, LED lighting, or other high-performance applications, our Metal Core PCBs are engineered to meet your specific needs. Contact us today to explore how our solutions can enhance your next project!

Applications of Metal Core PCBs

Metal core PCBs are widely used for their superior thermal management and mechanical strength. Some of the key applications of metal core PCBs provided by Omini include:

1. LED Lighting:
Metal core PCBs are most commonly used in LED solutions. LEDs emit significant heat during operation, and as the current passing through the LED increases, so does the heat generated. For high-power LEDs, heat generation is even higher, making metal core PCBs ideal for such applications. These PCBs effectively dissipate heat, improving performance and extending the lifespan of the LEDs. For higher-power LEDs, thermoelectric separation is often used. Omini manufactures metal core PCBs that are widely applied in vehicle headlights, floodlights, high-intensity spotlights, commercial bulbs, torches, and street lights.

2. Power Switching:
Metal core PCBs are extensively used in power switching equipment such as industrial relays. They are also commonly found in power supply equipment like high-voltage AC-DC converters, ensuring efficient heat management and reliability in demanding applications.

3. Automotive Electronics:
Automotive electronic solutions are often subjected to extreme temperature conditions. Although automotive-grade components are designed to withstand temperature variations, keeping components at optimal temperatures is crucial. One key application is the ECU (Engine Control Unit), which is typically placed near the engine—the largest heat generator in a vehicle. Omini’s metal core PCBs are used in ECU designs to effectively dissipate heat and maintain performance. Other automotive components like headlights, tail lamps, and more also benefit from Omini’s metal core PCB solutions.
