Rogers PCB

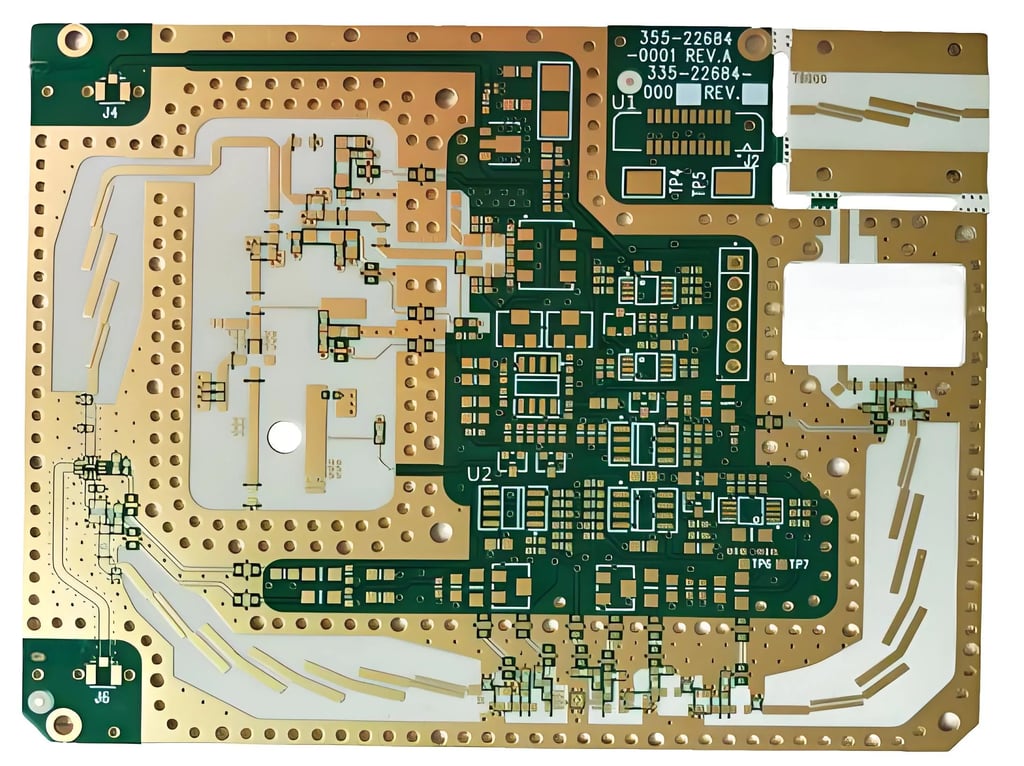

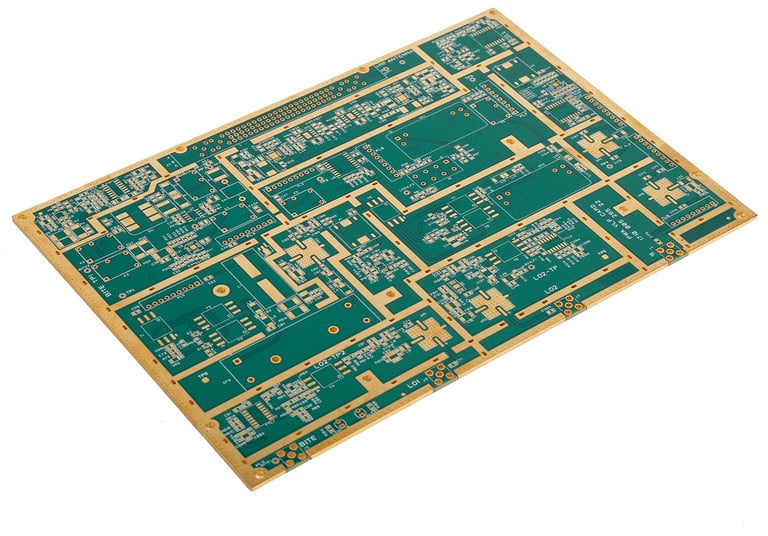

What is a Rogers PCB?

Omini is a leading manufacturer specializing in Rogers PCBs, which are produced using high-quality Rogers materials known for their exceptional performance in high-frequency and RF applications. These materials are ideal for printed circuit boards (PCBs) with stringent technical requirements. Rogers produces a range of specialized materials, including:

1. Custom and Commercial Materials: Materials for antenna-grade PCBs, prepregs, and adhesive films.

2. High-Frequency & High-Performance Solutions: Used in RF applications, wireless communication products, and high-speed electronics.

3. Advanced Materials: Featuring low-loss characteristics, stable electrical properties across frequencies, and excellent dimensional stability.

For example, the RO4000 series, a standout material from Rogers, provides low dielectric constant, low Z-axis expansion, and reliable high-frequency performance. It is widely used in satellite TV, microstrip lines, cellular base stations, RFID systems, and more.

At Omini, we offer a wide range of Rogers PCB materials, such as:

• Rogers 4003 PCB
• Rogers 4350 PCB
• Rogers 5880 PCB
• RO3003 PCB
• RO6002 PCB
• Rogers FR4 PCB
• TTM10 PCB
• Rogers Ceramic PCB
• Rogers PTFE PCB

With our experienced engineering, purchasing, and quality control teams, Omini is one of the most trusted manufacturers of Rogers PCBs in China. Contact us today for your Rogers PCB quote.

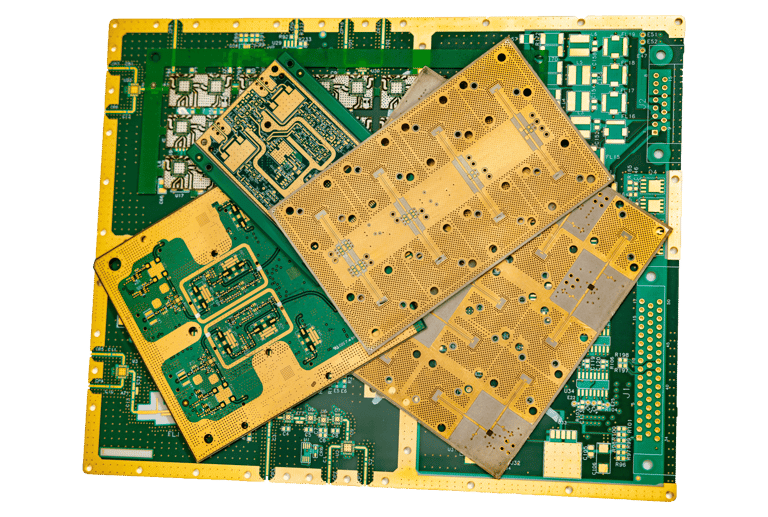

Benefits of Rogers Printed Circuit Boards

Omini is proud to offer high-performance Rogers PCBs, which provide numerous advantages for high-frequency and high-speed applications:

1. High-Speed & High-Frequency Signal Transmission: Rogers PCBs excel in enabling fast and efficient signal transmission for advanced electronic systems.

2. Superior Electrical & Chemical Properties: The dielectric material used in Rogers PCBs ensures excellent electrical performance and chemical stability.

3. Reliability in Harsh Environments: Rogers PCBs offer exceptional reliability, even in extreme conditions like aerospace and military applications, ensuring peak performance under challenging environments.

Rogers PCB Material Properties

Omini uses Rogers materials with exceptional properties to meet the demands of high-performance applications:

1. High Frequency & Low Loss: Rogers materials feature low dielectric constant (DK), ensuring minimal signal loss and optimal performance in high-frequency applications.

2. Stable Dielectric Constant (Dk): Rogers materials provide a consistent dielectric constant across a wide frequency range, maintaining signal integrity.

3. Wide Dielectric Constant Range: The material offers a broad dielectric constant range, suitable for various applications with different performance requirements.

4. Excellent Chemical Resistance: Rogers PCBs are highly resistant to chemicals, making them ideal for use in harsh environments.

5. Low Outgassing for Space Applications: With low outgassing properties, Rogers PCBs are reliable for space and other high-vacuum applications.

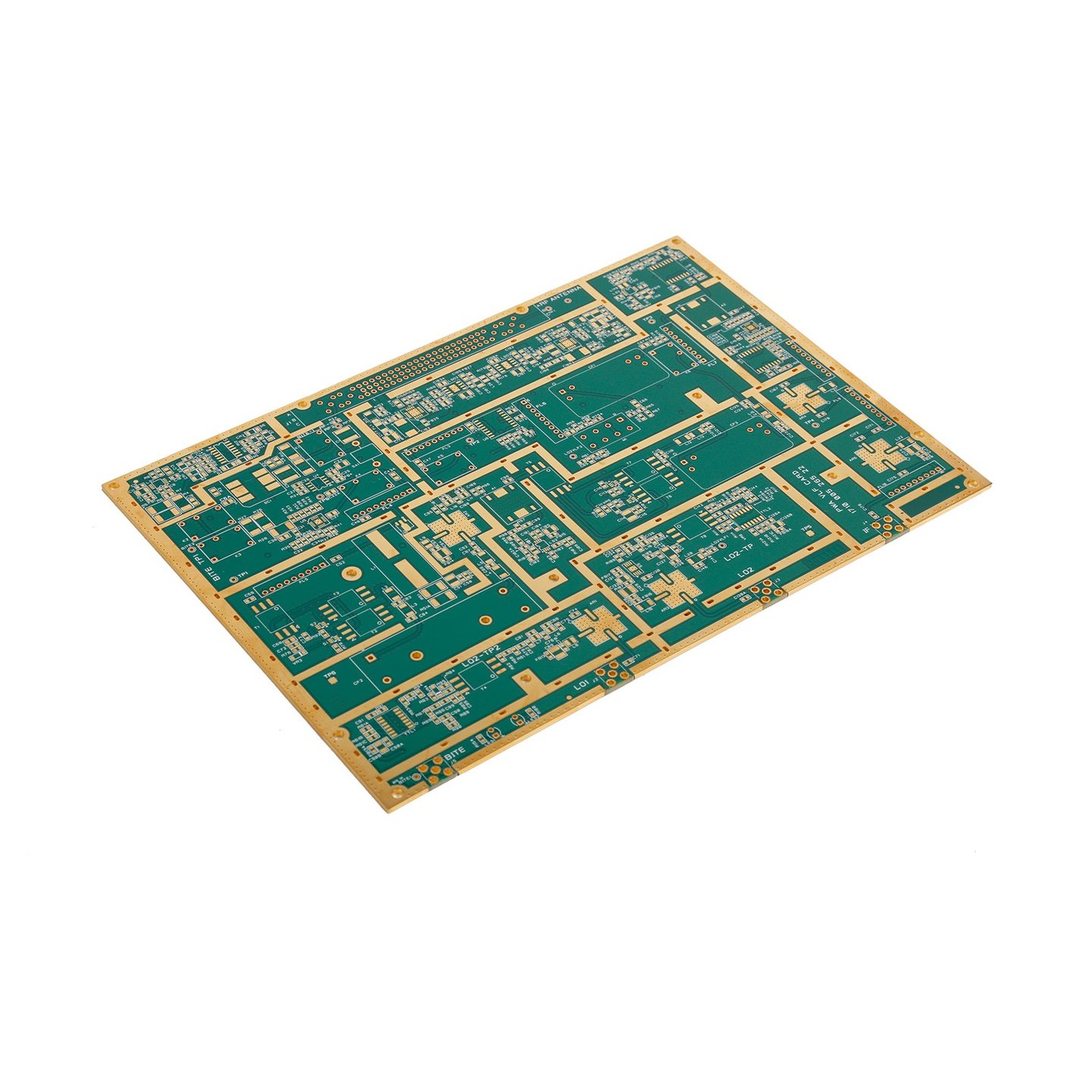

Rogers PCB Applications

Omini offers a wide range of Rogers PCBs, with popular materials such as RO4350B, RO4003C, and Rogers 3003, known for their excellent performance in high-frequency applications. These materials are widely used in various industries, including:

1. Automotive Anti-Collision Systems: Omini supplies Rogers PCBs that enhance the reliability and performance of automotive safety systems, ensuring effective anti-collision features.

2. Satellite Systems: Rogers PCBs are essential for satellite communications, offering low loss and high-frequency performance critical for space applications.

3. Radio Systems: Omini incorporates Rogers materials in radio systems, delivering exceptional signal quality and stable performance in demanding environments.

4. Radar Systems: Rogers PCBs provide the stability and precision required for radar systems, enabling accurate detection and communication.

5. Cell Phone Receiving Base Stations: Omini utilizes Rogers PCBs for base stations, supporting high-speed communication and enhancing mobile network performance.

6. Communication Industry: Omini offers Rogers PCB solutions for the communication sector, ensuring robust, high-performance components for various devices and systems.

7. Network Technology Field Promotion: Rogers materials from Omini help advance networking technologies, improving system reliability and data transmission speeds.

8. High-Speed Information Processing Systems: Omini supplies Rogers PCBs ideal for high-speed processing applications, ensuring efficiency in data-intensive operations.

Rogers PCB Material Properties

Omini offers a wide range of Rogers PCB materials with exceptional properties, ideal for demanding applications in various industries. These materials are used extensively in:

1. Active Safety: Omini uses Rogers materials to enhance the performance and reliability of active safety systems in automotive electronics.

2. Antenna Systems: Rogers PCBs from Omini are essential in high-performance antenna systems, offering optimal signal transmission.

3. Communications Systems: With Rogers materials, Omini supports cutting-edge communication systems requiring precise and efficient signal processing.

4. Wireless & Wi-Fi: Omini utilizes Rogers materials for advanced wireless and Wi-Fi applications, ensuring stable and high-speed connections.

5. Power Amplifiers: The use of Rogers PCBs in power amplifiers from Omini ensures superior performance, especially in high-frequency applications.

6. Telematics and Infotainment: Omini integrates Rogers materials in telematics and infotainment systems, providing the reliability and speed needed for modern automotive systems.

7. Computing & IP Infrastructure: Omini delivers Rogers PCB solutions that optimize computing and IP infrastructure for high-speed and high-performance operations.

8. Test & Measurement: With Rogers materials, Omini supports test and measurement equipment that demands high precision and stable performance.

The Benefits of PCB Boards Made from Rogers Materials

1. Best Material for RF Applications: Omini relies on Rogers for RF PCB material development and production, offering unmatched parameters that are difficult to substitute with other suppliers.

2. Excellent Mechanical and Electrical Performance: Rogers materials from Omini offer superior mechanical and electrical performance. Their excellent adhesion, heat dissipation, and peel strength are crucial for high-quality PCB production, ensuring reliable and consistent results.

3. Stable Quality: As a leading producer in RF PCB materials, Rogers offers stable and proven quality. Omini trusts Rogers materials, known for their consistency and reliability in mass production.

4. Cost-Effective: Although Rogers high-frequency PCB materials are pricier than FR4, they provide excellent value due to their high-quality performance. Omini finds Rogers RO4000 series particularly cost-effective, as some materials can be produced with FR4 technology, reducing overall production costs.

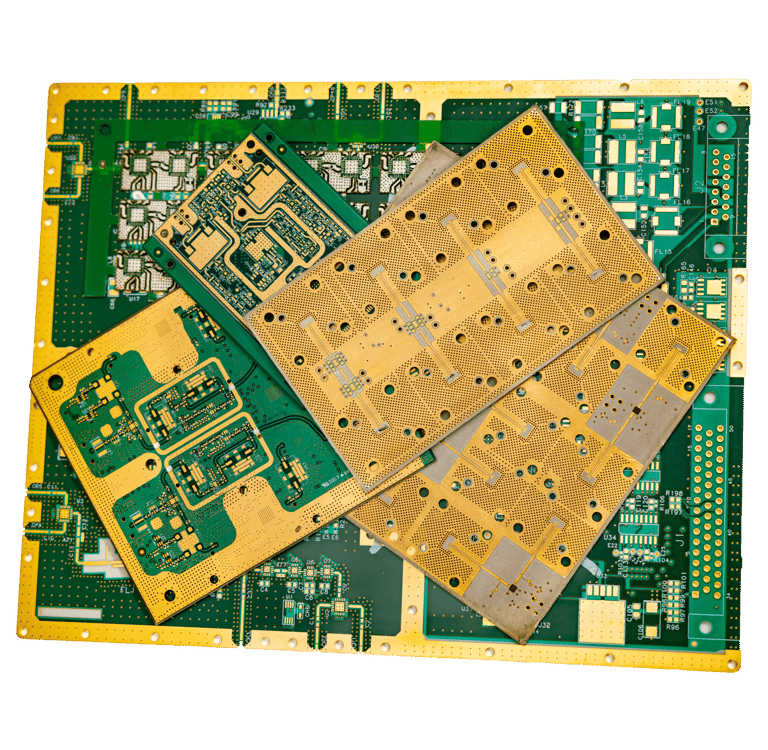

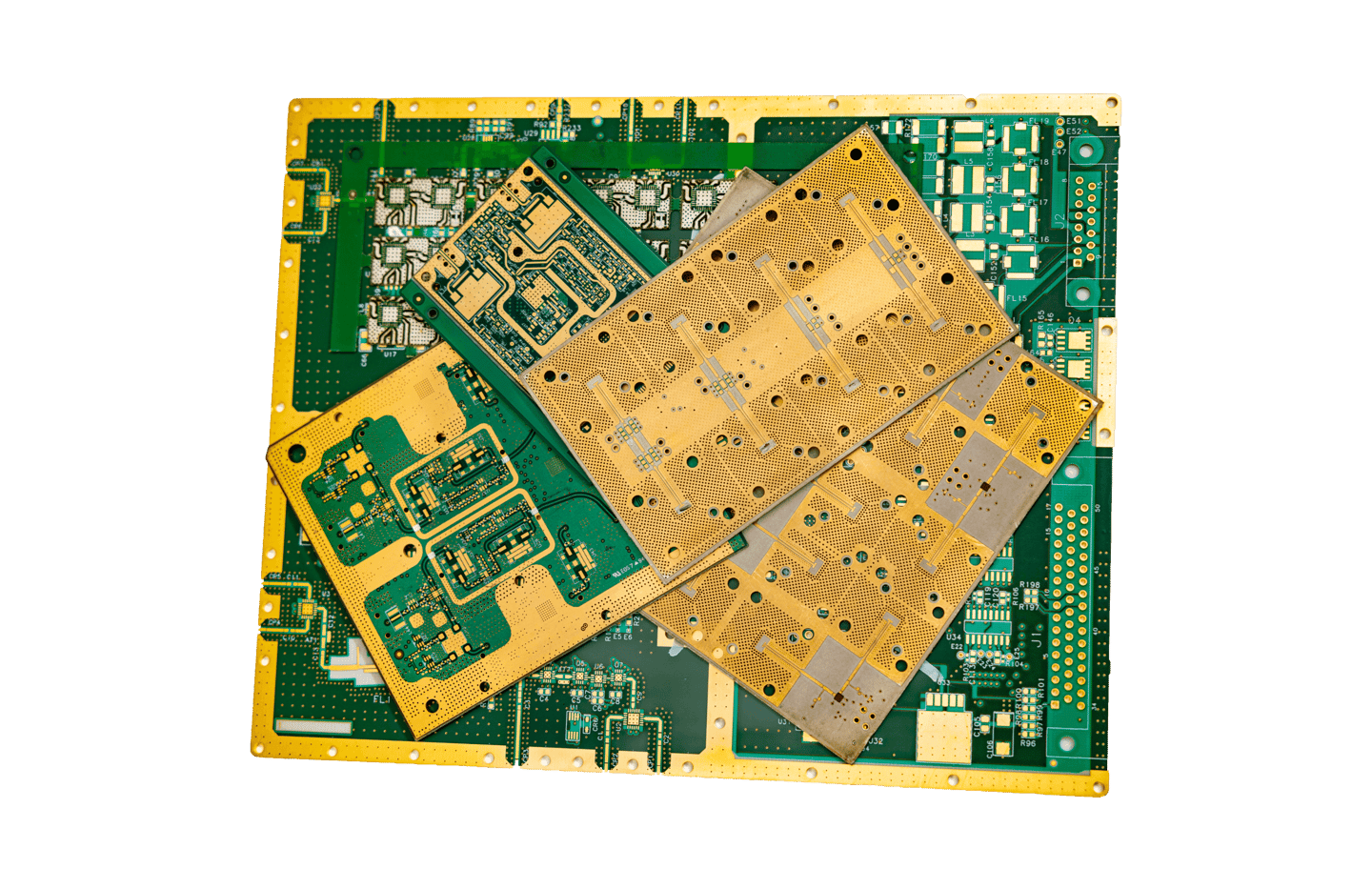

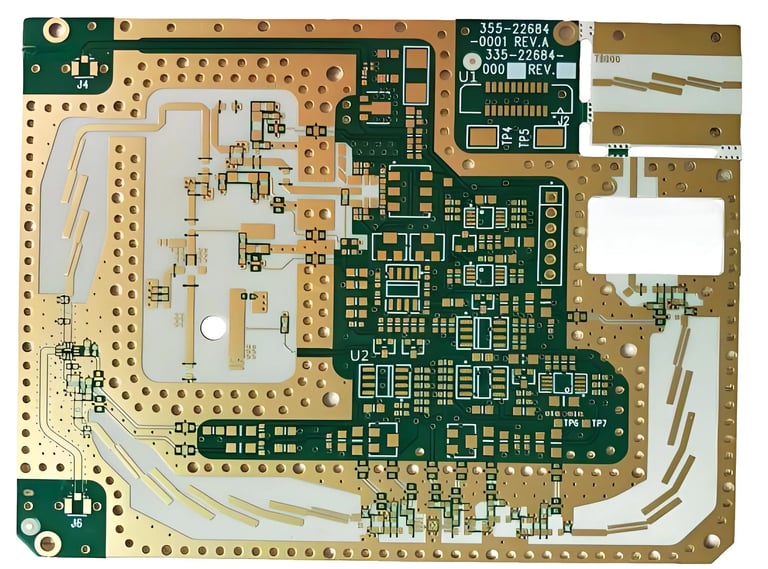

Rogers PCB Material Classification

Omini offers a range of Rogers PCB materials specifically designed for high-frequency and high-speed applications. Rogers materials are classified into two categories based on dielectric constant, each crucial for different PCB fabrication needs.

1. High Dielectric Constant (Dk) Material

• Ceramic Hydrocarbon (TMM® 6, TMM 10, TMM 10i)
• Ceramic PTFE (RT/duroid® 6006, RT/duroid 6010LM, RO3006™, RO3010™, RO3210™)

2. Low Dielectric Constant (Dk) Material

• Ceramic Hydrocarbon (TMM 3, TMM 4, RO4003C®, RO4350B®, RO4350i)
• Ceramic PTFE (RT/duroid 6002, RT/duroid 6202, RO3003™, RO3035™, RO3203™)
• Non-Woven Glass PTFE (RT/duroid 5870, RT/duroid 5880)
• Woven Glass PTFE (ULTRALAM® 2000)

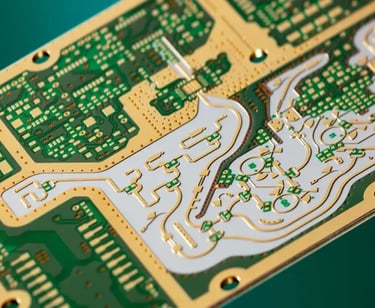

Commonly Used Rogers PCB Materials

As a leading supplier of Rogers PCB materials, Omini provides various high-frequency materials that are essential for signal integrity, thermal management, power distribution, and more. Below are some of the most commonly used Rogers PCB materials:

1. RO4000 Series

• This series material does not contain PTFE and is known for its low dielectric constant and low loss. RO4000 series offers excellent high-frequency performance and stable electrical characteristics across a wide range of frequencies.
• RO4000 materials have low Z-axis expansion and excellent heat dissipation, making them more reliable and cost-effective for high-frequency designs.
• RO4350 and RO4003 materials are common choices for many high-frequency PCB applications, offering low dielectric loss and high-frequency capabilities.

2. RT/Duroid 5000 Series

• The RT/Duroid 5000 series has a low dielectric constant and is known for its extremely low loss, making it ideal for high-frequency PCB applications and broadband systems.
• It also has minimal water absorption, which makes it suitable for use in environments with high humidity.
• RT5870 and RT5880 materials in this series are popular for RF applications where propagation loss needs to be minimized.

3. RT/Duroid 6000 Series

• RT/Duroid 6000 series materials are known for their ceramic powder filling, which provides a higher dielectric constant, making them suitable for small module designs.
• These materials offer superior temperature stability and have a thermal expansion coefficient that matches copper, making them ideal for aerospace applications.
• The RT6002, RT6006, and RT6010 materials in this series are perfect for high-frequency and multilayer PCB applications.

4. RO3000 / RO3200 Series

• The RO3000 series is ideal for medium-to-high-frequency applications and combines the electrical characteristics of microwave bands with improved temperature stability.
• For applications that need better mechanical strength, RO3200 series materials are recommended. They are perfect for designs that require both electrical and mechanical reliability.

5. TMM Series

• The TMM series uses ceramic-thermal curing polymer composites, combining the electrical properties of ceramics with traditional PTFE microwave PCB plates.
• These materials have a low coefficient of thermal expansion and high thermal conductivity, making them ideal for heat dissipation in high-frequency applications.
• TMM10 and TMM10i materials are widely used in high-frequency RF applications, where low dielectric loss and stability are critical.

Rogers Materials: Industry Applications

Omini offers Rogers materials that are suitable for a variety of high-reliability applications, including:

• Aerospace
• Defense
• High-speed and high-frequency systems
• Harsh environment applications

Premium Rogers PCB Solutions by Omini: Trusted Manufacturer with Expertise and Innovation

Omini is a leading manufacturer of high-quality Rogers PCBs, providing advanced solutions for a wide range of applications. With years of expertise in the industry, Omini stands out as one of the most trusted providers of Rogers PCB materials and services in China.

1. Omini: Professional Rogers PCB Manufacturing

Omini is one of the top Rogers PCB manufacturers in China. We have state-of-the-art production facilities equipped with fully automated equipment, enabling us to complete all PCB fabrication tasks efficiently and independently. Our advanced capabilities ensure precision and reliability in every Rogers PCB we produce.

2. Omini: Trustworthy Partner with Exceptional Customer Service

As a dependable partner, Omini is committed to offering outstanding service and minimizing any potential issues during the Rogers PCB fabrication process. We provide reliable after-sales support and respond quickly to customer needs, ensuring smooth and efficient collaboration throughout the project lifecycle.

3. Omini: Over 16 Years of Expertise in Rogers PCB Manufacturing

With over 16 years of experience in Rogers PCB production, Omini has accumulated valuable expertise in managing and executing high-precision projects. We uphold a work ethic based on honesty, trustworthiness, and responsibility, while adhering to a management philosophy centered on quality, sustainable growth, and continuous improvement.

4. Omini: High-Quality Rogers PCB Materials and Competitive Pricing

At Omini, we are dedicated to offering high-quality Rogers PCB materials with a strong focus on technical expertise, competitive pricing, and exceptional service. We work closely with our clients to deliver tailored solutions that meet their specific requirements. Contact us today to discuss your Rogers PCB needs, and we will provide you with the best possible options.

5. Omini: Wide Range of Rogers PCB Materials

At Omini, we supply a wide array of Rogers PCB materials, including RO4003 PCB, RO4350 PCB, RO5880 PCB, RO3003 PCB, RO6002 PCB, Rogers FR4 PCB, TTM10 PCB, Rogers ceramic PCB, Rogers PTFE PCB, and more. With our experienced engineering, purchasing, production, and quality teams, Omini is one of the most trusted Rogers PCB manufacturers in China. Reach out to us for quotes or more information on our Rogers PCB products.
