What is PCB Assembly?

PCB Assembly refers to the process of soldering electronic components onto a bare printed circuit board (PCB) to create a functional circuit. Before diving into the details of PCB assembly, it’s essential to understand what a PCB is. A printed circuit board serves as the foundation of electronic devices, providing electrical connectivity and mechanical support for components.

The components used in PCB assembly are broadly categorized into passive and active components. Passive components, such as resistors and capacitors, do not contribute to power gain, while active components, like transistors and ICs, amplify input signals.
PCB assembly can be performed manually or using automated machinery. However, automated PCB assembly is preferred for its superior efficiency and reliability. There are two primary methods for PCB assembly: PTH (Plated Through-Hole) Assembly and SMT (Surface Mount Technology) Assembly.

At Omini, we specialize in high-quality PCB assembly services, leveraging cutting-edge technology and expertise to ensure precision and reliability in every project.

Innovations in PCB Assembly: Through-Hole Technology (THT) and Surface Mount Technology (SMT)

The demand for smaller, lighter, and more durable electronic devices has revolutionized PCB assembly processes. Since the introduction of printed circuit boards in the 1950s, two primary assembly techniques have emerged: Through-Hole Technology (THT) and Surface Mount Technology (SMT). These methods are essential for any proficient PCB assembly manufacturer, including Omini, where we excel in both.

What is THT?

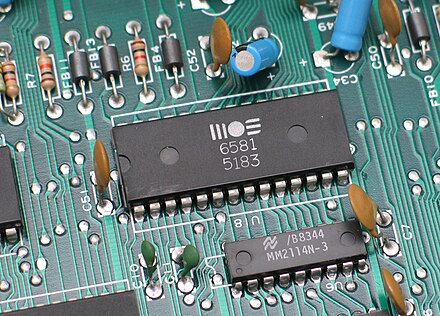

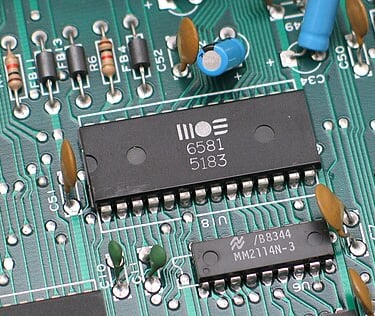

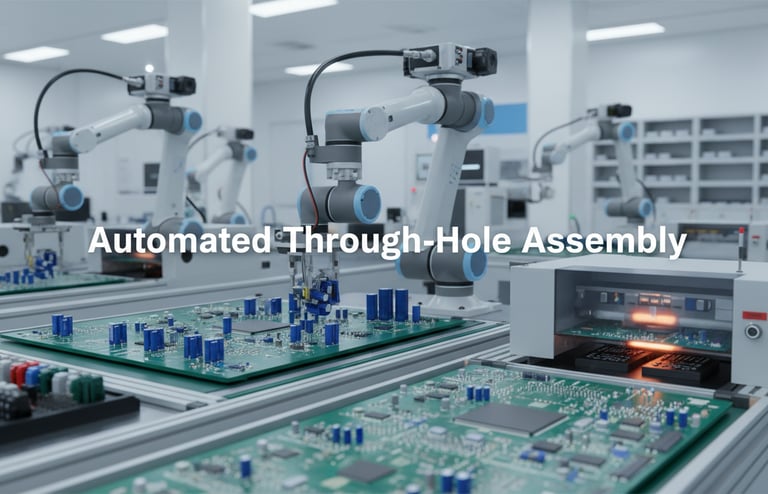

THT involves inserting component leads into pre-drilled holes on the PCB, which interconnect multiple layers. This process utilizes automatic insertion machines programmed to place components, followed by wave soldering to secure them. Components in THT are categorized as:

• Axial Leads: Leads run along the component’s axis.

• Radial Leads: Leads are perpendicular to the component’s main axis.

Post-assembly, PCBs undergo testing to identify shorts or open circuits by measuring node-to-node resistance.

Advantages of THT

High Mechanical Strength
Leads pass through PCB layers, providing robust mechanical connections ideal for devices exposed to mechanical stress.

Easy Adjustments and Repairs
Components are easier to replace, making THT ideal for prototyping and testing.

High Power Handling
Larger components can manage higher currents, making THT suitable for transistors, transformers, and voltage regulators.

Durability
THT components resist vibrations and thermal stresses, ensuring long-term reliability in harsh environments.

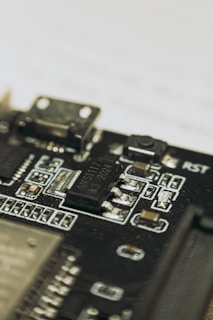

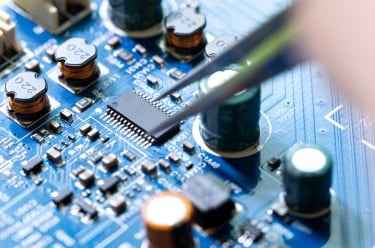

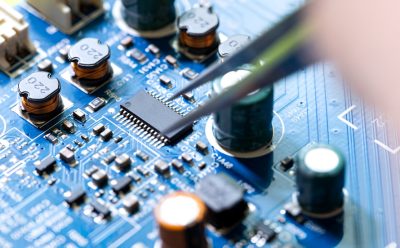

What is SMT?

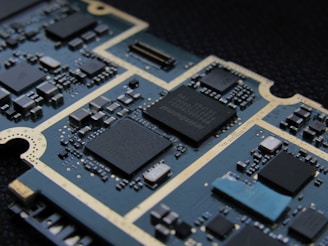

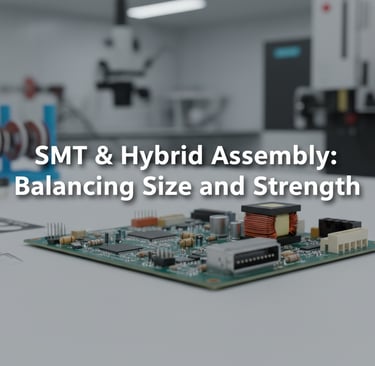

SMT eliminates the need for drilled holes, using solder paste to directly attach components to the PCB surface. This allows for tighter spacing, enabling the miniaturization of electronic devices. While SMT has significant advantages, some applications, like power supplies, still benefit from the mechanical strength of THT or hybrid assembly techniques.

Advantages of SMT

Smaller, Lighter Designs
Components are compact, with thinner leads and no need for drilled holes, reducing overall PCB size and weight.

Higher Pin or Lead Counts
SMT supports higher input/output counts, accommodating more pins and leads on the PCB surface.

Enhanced Functionality
Higher lead counts maximize interconnections, improving the functionality of the PCB.

High-Frequency Capabilities
Shorter connection paths result in superior performance in high-frequency applications.

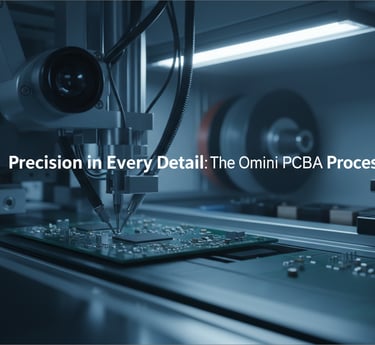

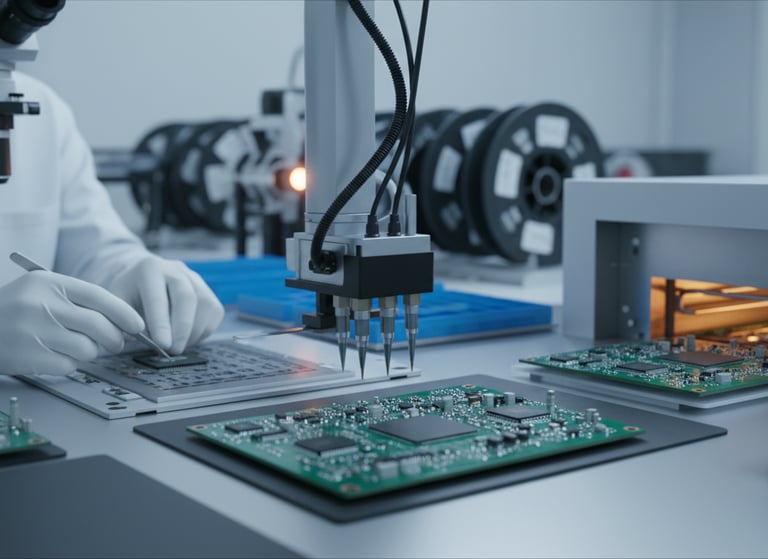

Key Steps in PCB Assembly: Omini’s Expertise in High-Quality PCBA

At Omini, we excel in delivering top-notch PCB Assembly (PCBA) services by mastering the essential processes that ensure precision and reliability in every project. Below are the core steps involved in printed circuit board assembly, highlighting our commitment to quality and compliance with industry standards.

1. Solder Paste Printing
The journey of PCB assembly begins with solder paste printing, where solder paste is applied to the PCB using a screen printing technique. At Omini, we prioritize compliance with global standards by utilizing lead-free solder paste, such as SAC (Tin, Silver, and Copper alloy), which is environmentally friendly and RoHS compliant.
• The solder paste, made of epoxy resin and metal filler, is evenly distributed through stencil apertures by a squeegee.
• This step ensures precise and uniform application, laying a solid foundation for component placement.

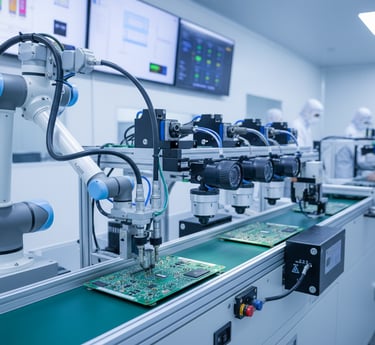

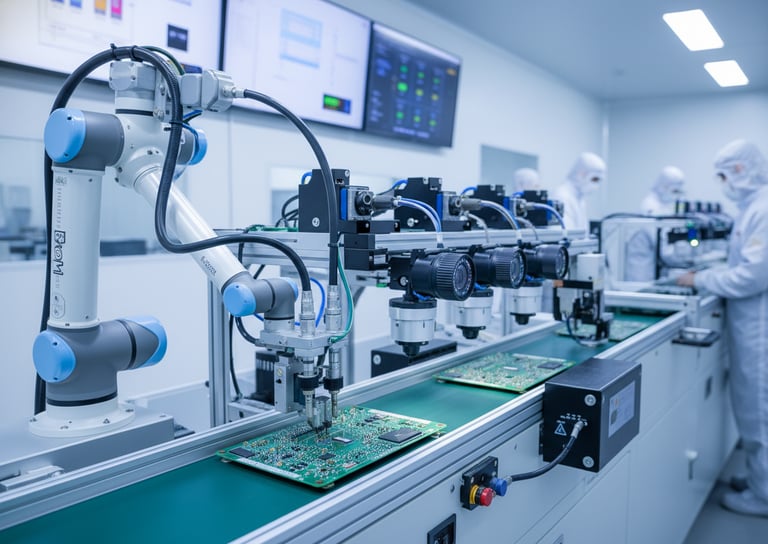

2. Component Placement

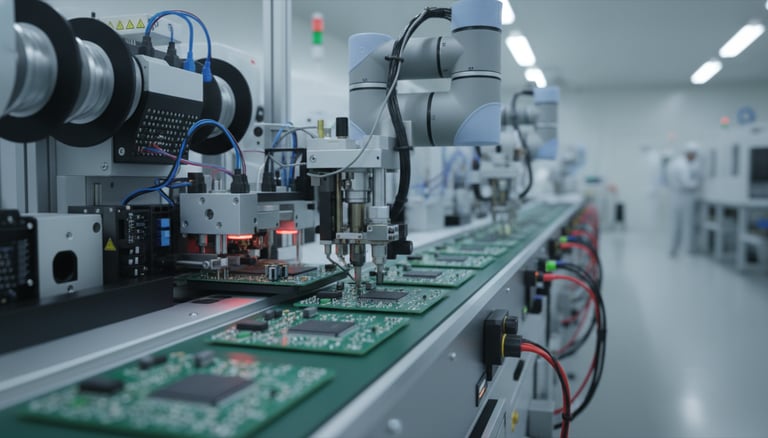

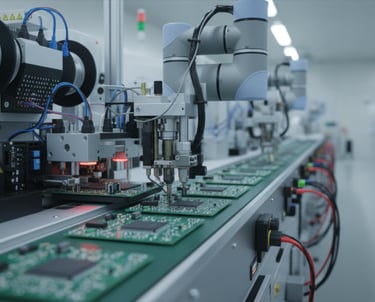

Component placement involves an automated pick-and-place machine that accurately mounts components onto the PCB based on programmed orientation.
The tackiness of the solder paste temporarily holds components in position, ensuring stability before soldering.
This highly efficient process guarantees accurate placement, even for densely packed PCBs.

3. Solder Reflow
The mounted PCB is transferred to a reflow oven for soldering, which involves the following stages:
• Preheating: Gradual warming allows the flux to outgas and prepares components for soldering.
• Temperature Ramp: Heating reaches the peak temperature needed to melt the solder paste completely.
• Cooling: Controlled cooling promotes cross-linking and solidifies the solder joints.
Omini’s advanced reflow process utilizes Infrared Radiation (IR) or convective hot air to ensure strong and reliable connections.

4. Automated Optical Inspection (AOI)
Manual inspections can be prone to human error, so Omini employs Automated Optical Inspection (AOI) for accurate and consistent PCB evaluation.
• AOI machines use high-resolution cameras to detect defects, including soldering errors, misaligned components, or missing parts.
• This step serves as an additional layer of quality control, ensuring only defect-free PCBs proceed to the next stage.

5. PCBA Testing
Final testing is crucial to identify any electrical failures in the assembled PCBs. At Omini, we utilize:
• In-Circuit Testing (ICT): A bed-of-nails setup that provides comprehensive testing of electrical connections and functionality.

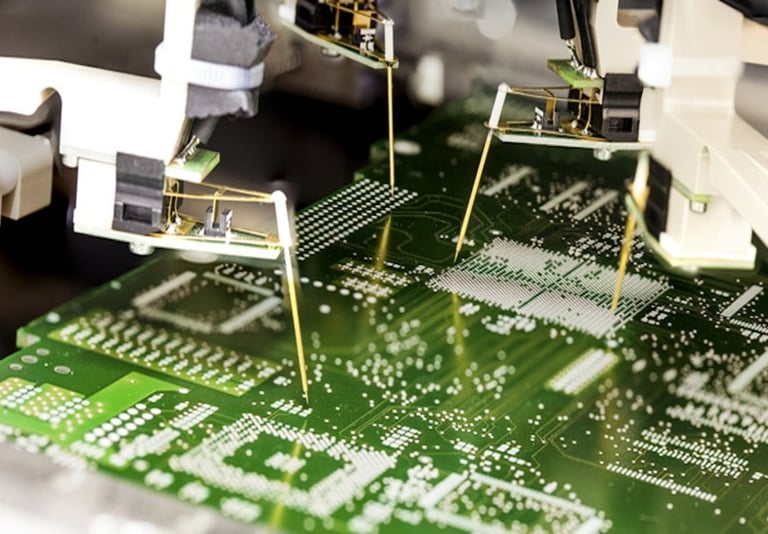

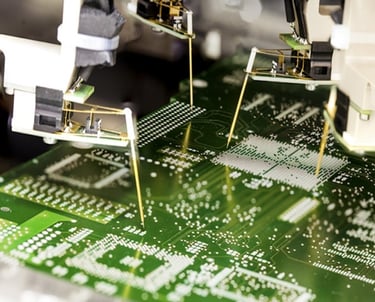

• Flying Probe Testing: A cost-effective alternative for low-volume production, using moveable probes to test the board’s circuits.

By mastering these essential processes, Omini ensures that every PCB assembly project meets the highest standards of precision, reliability, and efficiency. Whether you need small-batch prototypes or high-volume production, we are your trusted partner in delivering high-quality PCBA solutions that drive technological advancements.

Key Considerations for PCB Assembly: Insights from Omini

At Omini, we understand that successful PCB assembly requires careful planning and attention to various factors. Here are the critical considerations for ensuring high-quality PCB production and seamless assembly, supported by our expertise and advanced manufacturing capabilities.

1. Addressing Material Shortages
The electronics industry often faces material shortages due to factors like raw material availability, government regulations, aging equipment, factory closures, or production site relocations. To mitigate these challenges:
• Qualify Alternative Parts and Suppliers: Establish contingency plans to avoid supply chain disruptions.
• Leverage China’s Resources: Choosing PCB assembly in China offers access to abundant material resources and a robust supply chain network.

2. Ensuring Stringent Manufacturing and Quality Controls
Printed circuit boards are specialized products requiring strict manufacturing controls to meet quality standards. For example:
• Temperature Management: During the reflow process, precise temperature control is essential to prevent soldering issues. At Omini, we use reflow ovens with multiple heating zones to ensure optimal thermal profiles.
• Inspection and Testing: Automated Optical Inspection (AOI) and In-Circuit Testing (ICT) are implemented to detect and rectify any defects early in the process.

3. Focusing on Capacity Improvement
Maximizing efficiency is crucial in PCB assembly, particularly in addressing production bottlenecks like component placement. Our strategies include:
• Optimizing Overall Equipment Efficiency (OEE): This involves increasing machine throughput, enhancing flexibility, and reducing setup or conversion times.
• Streamlining Component Placement: Efforts are concentrated on optimizing mounter sequences and minimizing travel paths for each component type to enhance productivity.

At Omini, we combine expertise, state-of-the-art equipment, and strategic planning to tackle these challenges head-on. With our comprehensive PCB assembly solutions, we ensure reliability, efficiency, and high-quality outcomes for your electronics manufacturing needs.

Common Defects in PCB Assembly and How Omini Solves Them

In PCB assembly, maintaining quality and reliability is crucial. At Omini, we’ve identified the most common defects encountered during printed circuit assembly and developed effective solutions to address them.

1. Solder Bridging
Solder bridging occurs when excess solder overflows and connects adjacent pads, leading to electrical shorting and assembly failures. This is often caused by excessive solder paste or an incorrect reflow temperature profile.

Solutions:
• Optimize solder paste volume during the printing process.
• Ensure a precise thermal profile during reflow to prevent solder overflow.

2. Component Misalignment
Misaligned components result from improper placement or uneven solder paste distribution, leading to open circuits or electrical shorting. This issue becomes more significant with the shrinking size of electronic components.

Solutions:
• Use high-quality, homogeneous solder paste applied uniformly across the pads.
• Precisely program pick-and-place machines for accurate component alignment.

3. De-Wetting
De-wetting happens when solder fails to adhere to contact pads due to oxidation or impurities during soldering. This defect weakens connections and compromises PCB performance.

Solutions:
• Maintain cleanliness throughout the assembly process to ensure proper solder adhesion.
• Use fresh solder paste within its shelf life and store it properly.
• Introduce nitrogen gas during soldering to minimize oxidation on pads and components.

4. Tombstoning
Tombstoning occurs when a component tilts and stands on one end due to uneven soldering forces. This happens when solder on one side cures faster than on the other, causing imbalance.

Solutions:
• Optimize and uniformly distribute the reflow temperature profile.
• Conduct a detailed design assessment of stencil apertures to prevent unbalanced solder deposition.

At Omini, we leverage advanced PCB assembly technologies and stringent quality controls to minimize defects and deliver high-performing printed circuit boards. Our expertise ensures that your PCB projects are completed with precision and reliability, driving your innovations forward.
